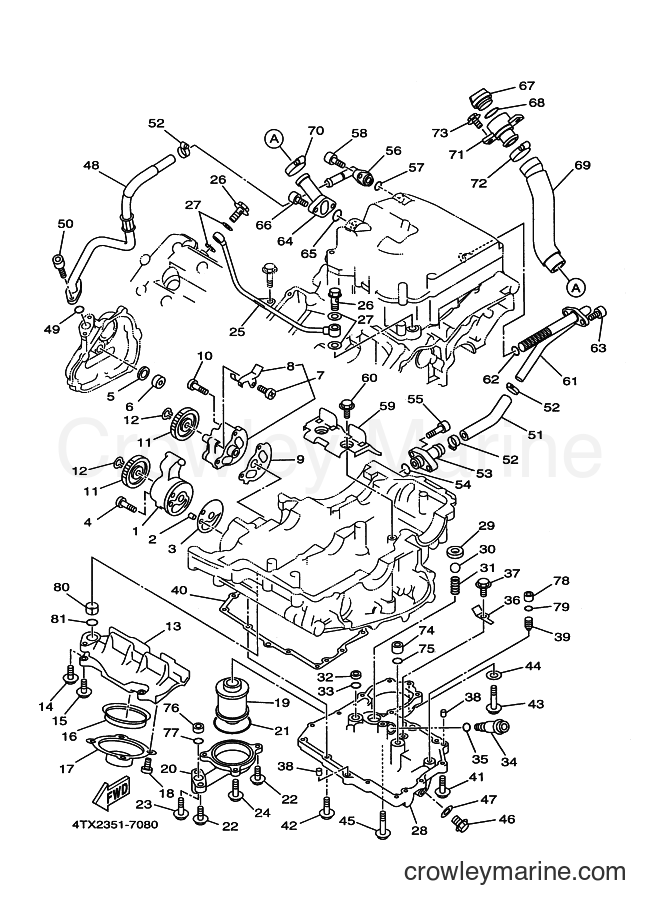

2000 Street Bike TDM850 - TDM850 (4TX6) [040] OIL PUMP diagram
![Yamaha Motors TDM850 (4TX6) [040] - OIL PUMP](https://cdn.crowleymarine.com/yamaha/k9gyiVag.png)
-10%
$158.39
You save $17.60
-50%
In stock
Only 1 remaining
$3.50
You save $3.50
-10%
3
Yamaha Motors
Pump Cover Gasket5PS-13329-00-00
Required: 1
GASKET, PUMP COVER
Supersedes: 3LD-13329-00-00
$2.02
You save $0.23
-10%
4
Yamaha Motors
PAN SCREW98507-06045-00
Required: 3
SCREW, PAN HEAD
$3.06
You save $0.34
-10%
$8.54
You save $0.95
7
Yamaha Motors
OIL PUMP ASSY, 24NX-13303-00
Required: 1
OIL PUMP ASSY, 2
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
9
Yamaha Motors
Pump Cover Gasket3LD-13339-00-00
Required: 1
GASKET, PUMP COVER
$2.66
You save $0.29
-10%
10
Yamaha Motors
Pan Head Screw98507-06035-00
Required: 3
SCREW, PAN HEAD
$8.54
You save $0.95
-10%
11
Yamaha Motors
Pump Driven Gear3VD-13325-00-00
Required: 2
GEAR, PUMP DRIVEN
No longer availableSearch Nationwide Inventory
$30.59
You save $3.40
-50%
In stock
Only 1 remaining
$4.75
You save $4.75
-10%
13
Yamaha Motors
Strainer Housing3VD-13412-00-00
Required: 1
HOUSING, STRAINER
$129.59
You save $14.40
-20%
In stock
Only 1 remaining
$3.33
You save $0.83
-10%
In stock
Only 1 remaining
$1.08
You save $0.12
-10%
16
Yamaha Motors
Oil Strainer Seal3VD-13415-00-00
Required: 1
SEAL, OIL STRAINER
$28.79
You save $3.20
-10%
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-10%
18
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 4
SCREW, PAN HEAD
$3.46
You save $0.38
-50%
19
Yamaha Motors
Oil Element Assembly Cl4X7-13440-90-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 4X7-13440-01-00
In stock
Only 1 remaining
$7.74
You save $7.74
-10%
20
Yamaha Motors
OIL ELEMENT COVER3VD-13447-00-00
Required: 1
COVER, OIL ELEMENT
No longer availableSearch Nationwide Inventory
$58.49
You save $6.50
-10%
$8.09
You save $0.90
-10%
$5.84
You save $0.65
-10%
$8.54
You save $0.95
-10%
$9.44
You save $1.05
-10%
25
Yamaha Motors
Delivery Pipe 15PS-13161-00-00
Required: 1
PIPE, DELIVERY 1
Supersedes: 3LD-13161-00-00
$42.29
You save $4.70
-10%
$3.92
You save $0.44
-10%
$6.74
You save $0.75
-10%
28
Yamaha Motors
STRAINER COVER3VD-13417-10-00
Required: 1
COVER, STRAINER
No longer availableSearch Nationwide Inventory
$411.29
You save $45.70
-10%
29
Yamaha Motors
CHECK BALL SEAT3LD-13113-00-00
Required: 1
SEAT, CHECK BALL
$13.94
You save $1.55
-10%
$8.54
You save $0.95
-10%
31
Yamaha Motors
Compression Spring90501-104F9-00
Required: 1
SPRING, COMPRESSION
$2.07
You save $0.23
-10%
$14.84
You save $1.65
-15%
In stock
Only 4 remaining
$7.22
You save $1.27
-10%
34
Yamaha Motors
Relief Valve Assembly11H-13490-00-00
Required: 1
RELIEF VALVE ASSY
$81.89
You save $9.10
-50%
In stock
Only 3 remaining
$2.02
You save $2.02
-10%
$3.29
You save $0.36
-10%
37
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 90105-06553-00
$3.78
You save $0.42
-10%
38
Yamaha Motors
Dowel Pin91808-16023-00
Required: 2
PIN, DOWEL
Supersedes: 99530-08016-00
$7.19
You save $0.80
-10%
39
Yamaha Motors
NOZZLE4KM-13572-01-00
Required: 1
NOZZLE 1
Supersedes: 4H7-15138-00-00
$7.19
You save $0.80
-10%
40
Yamaha Motors
STRAINER COVER GASKET3VD-13414-00-00
Required: 1
GASKET, STRAINER COVER
$10.34
You save $1.15
-50%
41
Yamaha Motors
Flange Small Head Bolt95024-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-06456-00
In stock
Only 3 remaining
$1.23
You save $1.23
-50%
In stock
Only 3 remaining
$1.23
You save $1.23
-10%
$3.65
You save $0.40
-10%
$6.74
You save $0.75
-10%
$2.16
You save $0.24
46
Yamaha Motors
Straight Screw Plug90340-14132-00
Required: 1
PLUG, STRAIGHT SCREW
$3.33
-15%
In stock
5+ in stock
$2.69
You save $0.48
48
Yamaha Motors
HOSE, OIL 14UN-13464-01
Required: 1
HOSE, OIL 1
Price unavailable
-50%
In stock
5+ in stock
$0.85
You save $0.85
-10%
$2.39
You save $0.27
51
Yamaha Motors
HOSE, OIL 24TX-13465-00
Required: 1
HOSE, OIL 2
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
$46.79
You save $5.20
-50%
In stock
5+ in stock
$0.85
You save $0.85
55
Yamaha Motors
Bolt91317-06020-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06093-00
$4.23
56
Yamaha Motors
PIPE, OIL 24NX-13418-00
Required: 1
PIPE, OIL 2
Price unavailable
-50%
In stock
5+ in stock
$0.85
You save $0.85
-10%
$2.39
You save $0.27
-10%
No longer availableSearch Nationwide Inventory
$30.59
You save $3.40
-10%
60
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-06553-00
$3.78
You save $0.42
61
Yamaha Motors
PIPE, OIL 14TX-13416-00
Required: 1
PIPE, OIL 1
Price unavailable
-50%
In stock
Only 4 remaining
$4.25
You save $4.25
-10%
$2.39
You save $0.27
64
Yamaha Motors
JOINT4TX-13132-00
Required: 1
JOINT
Price unavailable
-10%
$7.64
You save $0.85
-10%
$8.54
You save $0.95
-10%
67
Yamaha Motors
PLUG, OIL LEVELBAT-15362-00-00
Required: 1
PLUG, OIL LEVEL
Supersedes: 3F9-15362-00-00
$19.79
You save $2.20
-20%
68
Yamaha Motors
O-Ring93210-27778-00
Required: 1
O-RING
Supersedes: 93210-27370-00
In stock
Only 1 remaining
$7.59
You save $1.90
69
Yamaha Motors
HOSE4TX-13467-00
Required: 1
HOSE
Price unavailable
-10%
70
Yamaha Motors
Hose Clamp Assembly90450-32015-00
Required: 1
HOSE CLAMP ASSY
$17.54
You save $1.95
71
Yamaha Motors
CONNECTOR, OIL4TX-13266-00
Required: 1
CONNECTOR, OIL
Price unavailable
-10%
72
Yamaha Motors
Hose Clamp Assembly90450-38040-00
Required: 1
HOSE CLAMP ASSY
$17.54
You save $1.95
-10%
73
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95027-06016-00
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-50%
In stock
Only 3 remaining
$2.02
You save $2.02
-10%
$14.84
You save $1.65
-15%
In stock
Only 4 remaining
$7.22
You save $1.27
-10%
$9.44
You save $1.05
-50%
In stock
Only 2 remaining
$3.50
You save $3.50
-10%
No longer availableSearch Nationwide Inventory
$1.95
You save $0.22
-50%
In stock
5+ in stock
$4.25
You save $4.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
