2000 Street Bike TZ125 - TZ125 (4JT7) [060] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

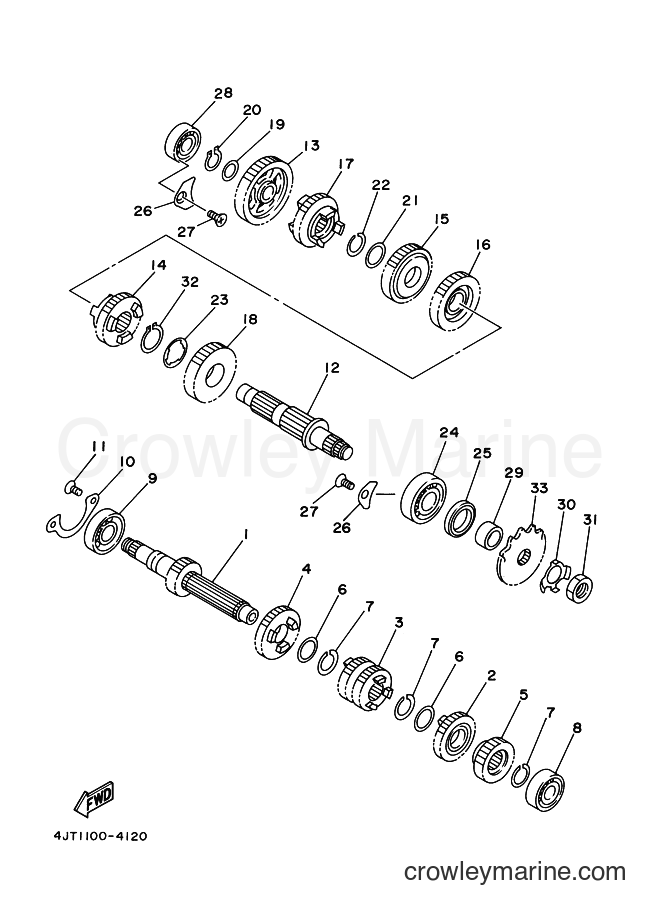

Yamaha Motors TZ125 (4JT7) [060] - TRANSMISSION
Change View:
AXLE, MAIN (15T)
1
Yamaha Motors
AXLE, MAIN (15T)4JT-17411-00
Required: 1
AXLE, MAIN (15T)
Price unavailable
GEAR, 5TH PINION (21T)
2
Yamaha Motors
GEAR, 5TH PINION (21T)4JT-17151-20
Required: 1
GEAR, 5TH PINION (21T)
Price unavailable
GEAR, 5TH PINION (23T)
2
Yamaha Motors
GEAR, 5TH PINION (23T)4JT-17151-10
Required: 1
GEAR, 5TH PINION (23T)
Price unavailable
GEAR, 3RD/4TH PINION (17T/20T)
3
Yamaha Motors
GEAR, 3RD/4TH PINION (17T/20T)4JT-17131-30
Required: 1
GEAR, 3RD/4TH PINION (17T/20T)
Price unavailable
GEAR, 3RD/4TH PINION (16T/22T)
3
Yamaha Motors
GEAR, 3RD/4TH PINION (16T/22T)4JT-17131-00
Required: 1
GEAR, 3RD/4TH PINION (16T/22T)
Price unavailable
GEAR, 3RD/4TH PINION (19T/22T)
3
Yamaha Motors
GEAR, 3RD/4TH PINION (19T/22T)4JT-17131-10
Required: 1
GEAR, 3RD/4TH PINION (19T/22T)
Price unavailable
GEAR, 6TH PINION (24T)
4
Yamaha Motors
GEAR, 6TH PINION (24T)4JT-17161-30
Required: 1
GEAR, 6TH PINION (24T)
Price unavailable
GEAR, 6TH PINION (27T)
4
Yamaha Motors
GEAR, 6TH PINION (27T)4JT-17161-11
Required: 1
GEAR, 6TH PINION (27T)
Price unavailable
GEAR, 2ND PINION (21T)
5
Yamaha Motors
GEAR, 2ND PINION (21T)4JT-17121-00
Required: 1
GEAR, 2ND PINION (21T)
Price unavailable
GEAR, 2ND PINION (17T)
5
Yamaha Motors
GEAR, 2ND PINION (17T)4JT-17121-10
Required: 1
GEAR, 2ND PINION (17T)
Price unavailable
GEAR, 2ND PINION (19T)
5
Yamaha Motors
GEAR, 2ND PINION (19T)4JT-17121-30
Required: 1
GEAR, 2ND PINION (19T)
Price unavailable
-10%
SPECIAL SHAPE NUT
6
Yamaha Motors
SPECIAL SHAPE NUT90209-18208-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
S -type Circlip
7
Yamaha Motors
S -type Circlip93410-22039-00
Required: 3
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
BEARING
8
Yamaha Motors
BEARING93306-20336-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$35.99
$32.39
You save $3.60
More details
-10%
BEARING COVER PLATE
10
Yamaha Motors
BEARING COVER PLATE4JT-15383-00-00
Required: 1
PLATE, BEARING COVER
Cross Ship
Leaves in 2-5 days
$28.99
$26.09
You save $2.90
More details
SCREW, COUNTERSUNK
11
Yamaha Motors
SCREW, COUNTERSUNK90151-06056
Required: 2
SCREW, COUNTERSUNK
Price unavailable
AXLE, DRIVE
12
Yamaha Motors
AXLE, DRIVE4JT-17421-00
Required: 1
AXLE, DRIVE
Price unavailable
GEAR, 1ST WHEEL (29T)
13
Yamaha Motors
GEAR, 1ST WHEEL (29T)4JT-17211-10
Required: 1
GEAR, 1ST WHEEL (29T)
Price unavailable
GEAR, 5TH WHEEL (26T)
14
Yamaha Motors
GEAR, 5TH WHEEL (26T)4JT-17251-10
Required: 1
GEAR, 5TH WHEEL (26T)
Price unavailable
GEAR, 5TH WHEEL (24T)
14
Yamaha Motors
GEAR, 5TH WHEEL (24T)4JT-17251-30
Required: 1
GEAR, 5TH WHEEL (24T)
Price unavailable
GEAR, 3RD WHEEL (23T)
15
Yamaha Motors
GEAR, 3RD WHEEL (23T)4JT-17231-00
Required: 1
GEAR, 3RD WHEEL (23T)
Price unavailable
GEAR, 3RD WHEEL (24T)
15
Yamaha Motors
GEAR, 3RD WHEEL (24T)4JT-17231-30
Required: 1
GEAR, 3RD WHEEL (24T)
Price unavailable
GEAR, 3RD WHEEL (26T)
15
Yamaha Motors
GEAR, 3RD WHEEL (26T)4JT-17231-10
Required: 1
GEAR, 3RD WHEEL (26T)
Price unavailable
GEAR, 4TH WHEEL (28T)
16
Yamaha Motors
GEAR, 4TH WHEEL (28T)4JT-17241-00
Required: 1
GEAR, 4TH WHEEL (28T)
Price unavailable
GEAR, 4TH WHEEL (27T)
16
Yamaha Motors
GEAR, 4TH WHEEL (27T)4JT-17241-10
Required: 1
GEAR, 4TH WHEEL (27T)
Price unavailable
GEAR, 4TH WHEEL (25T)
16
Yamaha Motors
GEAR, 4TH WHEEL (25T)4JT-17241-30
Required: 1
GEAR, 4TH WHEEL (25T)
Price unavailable
GEAR, 6TH WHEEL (29T)
17
Yamaha Motors
GEAR, 6TH WHEEL (29T)4JT-17261-11
Required: 1
GEAR, 6TH WHEEL (29T)
Price unavailable
GEAR, 6TH WHEEL (26T)
17
Yamaha Motors
GEAR, 6TH WHEEL (26T)4JT-17261-30
Required: 1
GEAR, 6TH WHEEL (26T)
Price unavailable
GEAR, 2ND WHEEL (31T)
18
Yamaha Motors
GEAR, 2ND WHEEL (31T)4JT-17221-30
Required: 1
GEAR, 2ND WHEEL (31T)
Price unavailable
GEAR, 2ND WHEEL (35T)
18
Yamaha Motors
GEAR, 2ND WHEEL (35T)4JT-17221-00
Required: 1
GEAR, 2ND WHEEL (35T)
Price unavailable
GEAR, 2ND WHEEL (27T)
18
Yamaha Motors
GEAR, 2ND WHEEL (27T)4JT-17221-10
Required: 1
GEAR, 2ND WHEEL (27T)
Price unavailable
-10%
Plate Washer
19
Yamaha Motors
Plate Washer90201-177G4-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
S -type Circlip
20
Yamaha Motors
S -type Circlip93410-17037-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
SPECIAL SHAPE NUT
21
Yamaha Motors
SPECIAL SHAPE NUT90209-18208-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
S -type Circlip
22
Yamaha Motors
S -type Circlip93410-22039-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
SPECIAL SHAPE NUT
23
Yamaha Motors
SPECIAL SHAPE NUT90209-23241-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$3.95
$3.56
You save $0.40
More details
-10%
SD-TYPE OIL SEAL
25
Yamaha Motors
SD-TYPE OIL SEAL93102-26042-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Bearing Cover Plate
26
Yamaha Motors
Bearing Cover Plate4JT-15381-01-00
Required: 3
PLATE, BEARING COVER
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
SCREW, COUNTERSUNK
27
Yamaha Motors
SCREW, COUNTERSUNK90151-06056
Required: 2
SCREW, COUNTERSUNK
Price unavailable
-10%
BEARING
28
Yamaha Motors
BEARING93306-20336-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$35.99
$32.39
You save $3.60
More details
COLLAR
29
Yamaha Motors
COLLAR90387-204Y5
Required: 1
COLLAR
Price unavailable
-10%
LOCK WASHER
30
Yamaha Motors
LOCK WASHER90215-20261-00
Required: 1
WASHER, LOCK
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
SPECIAL SHAPE NUT
31
Yamaha Motors
SPECIAL SHAPE NUT90179-16226-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
S -type Circlip
32
Yamaha Motors
S -type Circlip93410-26067-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
SPROCKET, DRIVE (17T)
33
Yamaha Motors
SPROCKET, DRIVE (17T)938AA-17196
Required: 1
SPROCKET, DRIVE (17T)
Price unavailable
SPROCKET, DRIVE (18T)
33
Yamaha Motors
SPROCKET, DRIVE (18T)938AA-18199
Required: 1
SPROCKET, DRIVE (18T)
Price unavailable
SPROCKET, DRIVE (16T)
33
Yamaha Motors
SPROCKET, DRIVE (16T)938AA-16198
Required: 1
SPROCKET, DRIVE (16T)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
