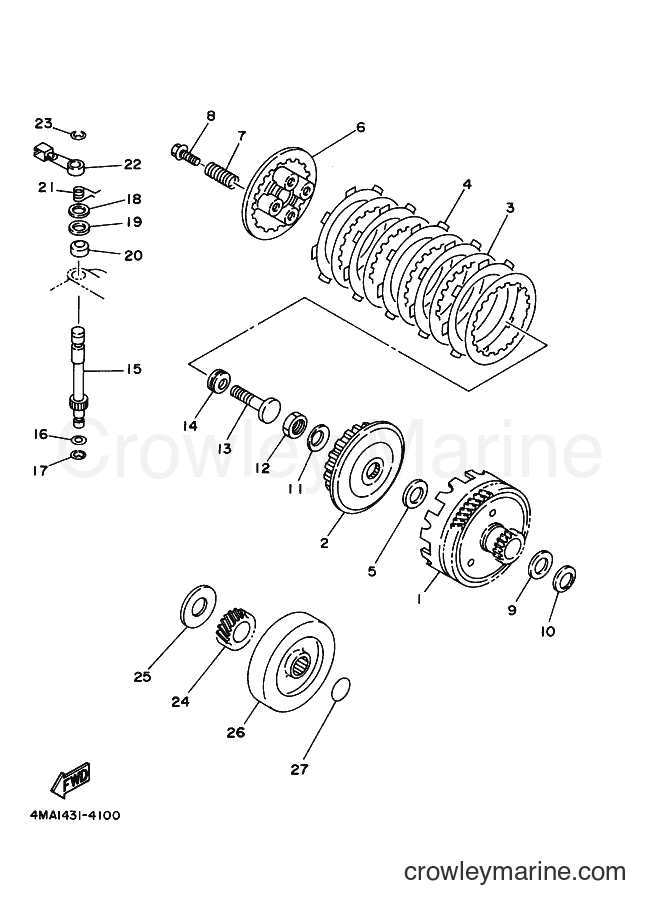

2000 Street Bike V120JR-S - V120JR-S (4MA5) [010] CLUTCH diagram
![Yamaha Motors V120JR-S (4MA5) [010] - CLUTCH](https://cdn.crowleymarine.com/yamaha/QLsYtzke.png)
1
Yamaha Motors
PRIMARY DRIVEN GEAR COMP.4MA-E6150-00
Required: 1
PRIMARY DRIVEN GEAR COMP.
Price unavailable
2
Yamaha Motors
BOSS, CLUTCH4MA-E6371-00
Required: 1
BOSS, CLUTCH
Price unavailable
3
Yamaha Motors
PLATE, CLUTCH 14MA-E6324-00
Required: 5
PLATE, CLUTCH 1
Price unavailable
4
Yamaha Motors
PLATE, FRICTION3JF-E6321-00
Required: 6
PLATE, FRICTION
Price unavailable
5
Yamaha Motors
PLATE, THRUST 14MA-E6154-00
Required: 1
PLATE, THRUST 1
Price unavailable
6
Yamaha Motors
PLATE, PRESSURE 14MA-E6351-00
Required: 1
PLATE, PRESSURE 1
Price unavailable
-10%
7
Yamaha Motors
Compression Spring90501-20568-00
Required: 4
SPRING, COMPRESSION
$12.14
You save $1.35
8
Yamaha Motors
BOLT, WITH WASHER*
Required: 4
BOLT, WITH WASHER
Price unavailable
-10%
9
Yamaha Motors
Plate Washer90201-180P2-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
10
Yamaha Motors
Conical Spring Washer90208-18046-00
Required: 1
WASHER, CONICAL SPRING
$11.24
You save $1.25
-10%
11
Yamaha Motors
Conical Spring Washer90208-12800-00
Required: 1
WASHER, CONICAL SPRING
Supersedes: 90208-12015-00
No longer availableSearch Nationwide Inventory
$0.68
You save $0.07
-10%
$9.44
You save $1.05
13
Yamaha Motors
ROD, PUSH 13SB-E6356-00
Required: 1
ROD, PUSH 1
Price unavailable
-10%
$29.69
You save $3.30
15
Yamaha Motors
AXLE, PUSH LEVER4AC-E6382-00
Required: 1
AXLE, PUSH LEVER
Price unavailable
16
Yamaha Motors
WASHER, PLATE90201-096P5
Required: 1
WASHER, PLATE
Price unavailable
-20%
17
Yamaha Motors
Clip99080-07600-00
Required: 1
CIRCLIP
Supersedes: 99001-07600-00
In stock
Only 3 remaining
$2.92
You save $0.73
-10%
18
Yamaha Motors
Plate Washer90201-12M34-00
Required: 1
WASHER, PLATE
Supersedes: 90201-12163-00
$3.51
You save $0.39
-10%
$10.34
You save $1.15
-10%
$35.99
You save $4.00
21
Yamaha Motors
SPRING, TORSION90508-14709
Required: 1
SPRING, TORSION
Price unavailable
22
Yamaha Motors
PUSH LEVER ASSY4AC-E6340-00
Required: 1
PUSH LEVER ASSY
Price unavailable
-10%
23
Yamaha Motors
Circle Clip99080-09600-00
Required: 1
CIRCLIP
Supersedes: 99001-09600-00
$2.88
You save $0.32
24
Yamaha Motors
PRIMARY DRIVE GEAR ASSY4AC-16110-01
Required: 1
PRIMARY DRIVE GEAR ASSY
Price unavailable
-10%
25
Yamaha Motors
Plate Washer90201-121J0-00
Required: 1
WASHER, PLATE
$8.54
You save $0.95
26
Yamaha Motors
FLYWHEEL4AC-E1571-00
Required: 1
FLYWHEEL
Price unavailable
27
Yamaha Motors
O-RING*
Required: 1
O-RING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
