2000 Street Bike V120JR-S - V120JR-S (4MA5) [010] SHIFT SHAFT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

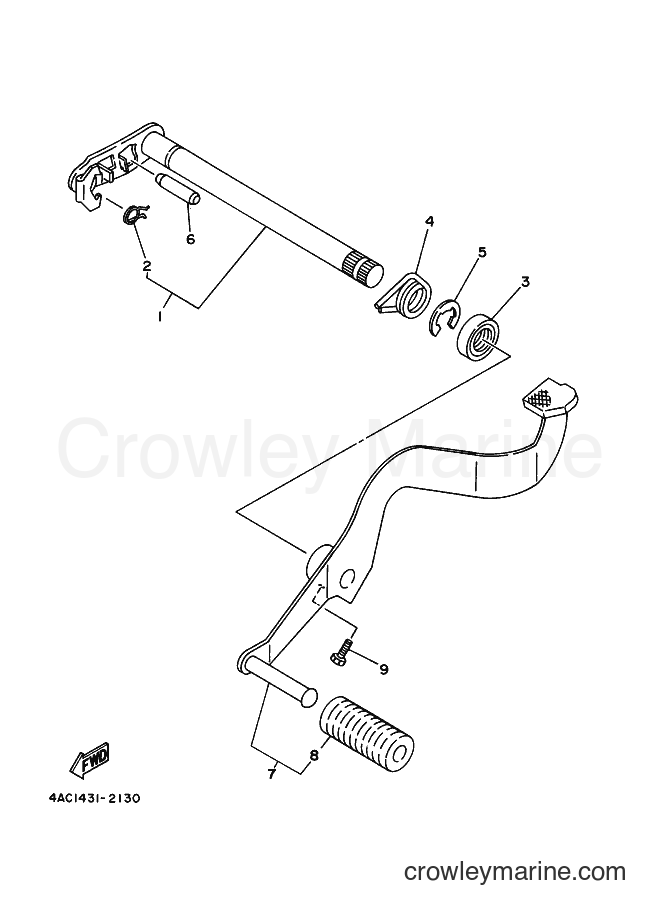

Yamaha Motors V120JR-S (4MA5) [010] - SHIFT SHAFT

Change View:

Yamaha Motors

SHIFT SHAFT ASSY3SB-E8101-00

Required: 1

SHIFT SHAFT ASSY

Price unavailable

Yamaha Motors

. SPRING, TORSION90508-10834

Required: 1

. SPRING, TORSION

Price unavailable

Yamaha Motors

OIL SEAL93101-12829

Required: 1

OIL SEAL

Price unavailable

-10%

Yamaha Motors

Torsion Spring90508-32642-00

Required: 1

SPRING, TORSION

~~$10.49~~

$9.44

You save $1.05

More details

Yamaha Motors

CIRCLIP99001-10600

Required: 1

CIRCLIP

Price unavailable

Yamaha Motors

PIN, DOWEL93608-43238

Required: 1

PIN, DOWEL

Price unavailable

Yamaha Motors

PEDAL, SHIFT4AC-E8111-10

Required: 1

PEDAL, SHIFT

Price unavailable

Yamaha Motors

. COVER, SHIFT PEDAL2A1-E8113-10

Required: 1

. COVER, SHIFT PEDAL

Price unavailable

-10%

Yamaha Motors

Hexagon Bolt97017-06020-00

Required: 1

BOLT

Supersedes: 97027-06020-00

~~$4.06~~

$3.65

You save $0.41

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
