2000 Street Bike V120JR-S - V120JR-S (4MA4) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

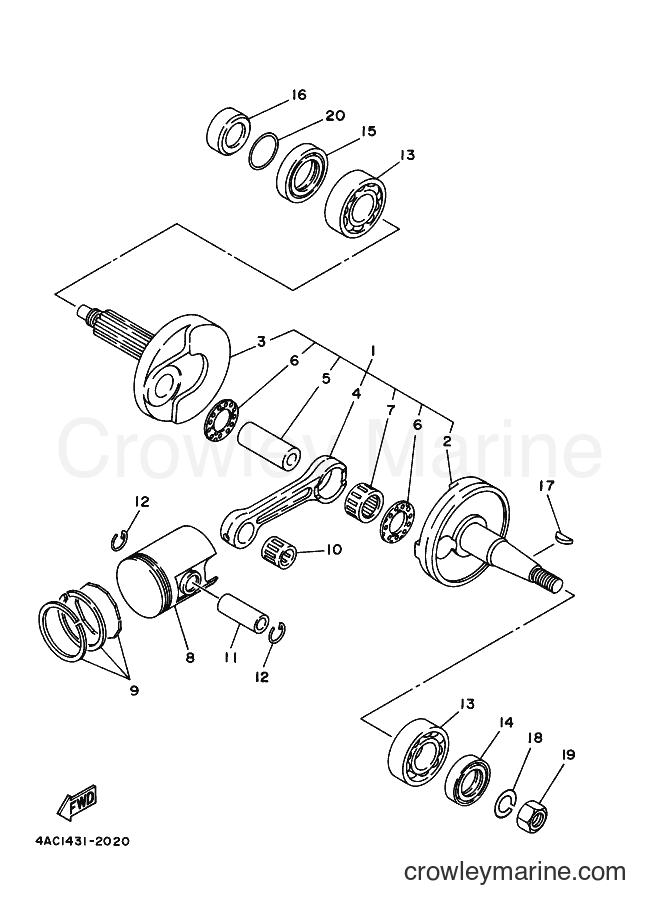

Yamaha Motors V120JR-S (4MA4) [010] - CRANKSHAFT & PISTON
Change View:
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSY4AC-E1400-00
Required: 1
CRANKSHAFT ASSY
Price unavailable
. CRANK 1
2
Yamaha Motors
. CRANK 14AC-E1412-00
Required: 1
. CRANK 1
Price unavailable
. CRANK 2
3
Yamaha Motors
. CRANK 24AC-E1422-00
Required: 1
. CRANK 2
Price unavailable
. ROD, CONNECTING
4
Yamaha Motors
. ROD, CONNECTING4X8-11651-00
Required: 1
. ROD, CONNECTING
Price unavailable
. PIN, CRANK 1
5
Yamaha Motors
. PIN, CRANK 13KC-E1681-00
Required: 1
. PIN, CRANK 1
Price unavailable
-10%
WASHER
6
Yamaha Motors
WASHER90209-22257-00
Required: 2
. WASHER
Supersedes: 90209-22292-00
Cross Ship
Leaves in 2-5 days
$32.99
$29.69
You save $3.30
More details
-10%
Cylinder Bearing
7
Yamaha Motors
Cylinder Bearing93310-422C8-00
Required: 1
. BEARING
Cross Ship
Leaves in 2-5 days
$50.99
$45.89
You save $5.10
More details
PISTON (0.25MM O/S)
8
Yamaha Motors
PISTON (0.25MM O/S)4AC-E1635-01
Required: 1
PISTON (0.25MM O/S)
Price unavailable
PISTON (0.50MM O/S)
8
Yamaha Motors
PISTON (0.50MM O/S)4AC-E1636-01
Required: 1
PISTON (0.50MM O/S)
Price unavailable
PISTON (STD)
8
Yamaha Motors
PISTON (STD)4AC-E1631-01-B0
Required: 1
PISTON (STD)
Price unavailable
PISTON RING SET (0.50MM O/S)
9
Yamaha Motors
PISTON RING SET (0.50MM O/S)4AC-E1605-09
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
PISTON RING SET (STD)
9
Yamaha Motors
PISTON RING SET (STD)4AC-E1603-00
Required: 1
PISTON RING SET (STD)
Price unavailable
PISTON RING SET (0.25MM O/S)
9
Yamaha Motors
PISTON RING SET (0.25MM O/S)4AC-E1604-09
Required: 1
PISTON RING SET (0.25MM O/S)
Price unavailable
BEARING
10
Yamaha Motors
BEARING93310-214C3
Required: 1
BEARING
Price unavailable
PIN, PISTON
11
Yamaha Motors
PIN, PISTON3SB-E1633-00
Required: 1
PIN, PISTON
Price unavailable
Inner Circle Clip
12
Yamaha Motors
Inner Circle Clip93450-15090-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$0.91
More details
-10%
BEARING
13
Yamaha Motors
BEARING93306-20526-00
Required: 2
BEARING (B6205)
Cross Ship
Leaves in 2-5 days
$32.99
$29.69
You save $3.30
More details
-10%
SW-TYPE OIL SEAL
14
Yamaha Motors
SW-TYPE OIL SEAL93103-25098-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$20.99
$18.89
You save $2.10
More details
-10%
SW-TYPE OIL SEAL
15
Yamaha Motors
SW-TYPE OIL SEAL93103-32183-00
Required: 1
OIL SEAL
Supersedes: 93103-32099-00
Cross Ship
Leaves in 2-5 days
$38.99
$35.09
You save $3.90
More details
-10%
COLLAR
16
Yamaha Motors
COLLAR90387-206K3-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$25.99
$23.39
You save $2.60
More details
-10%
Woodruff Key
17
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
O-Ring
20
Yamaha Motors
O-Ring93210-180A6-00
Required: 1
O-RING
Supersedes: 93210-18023-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
