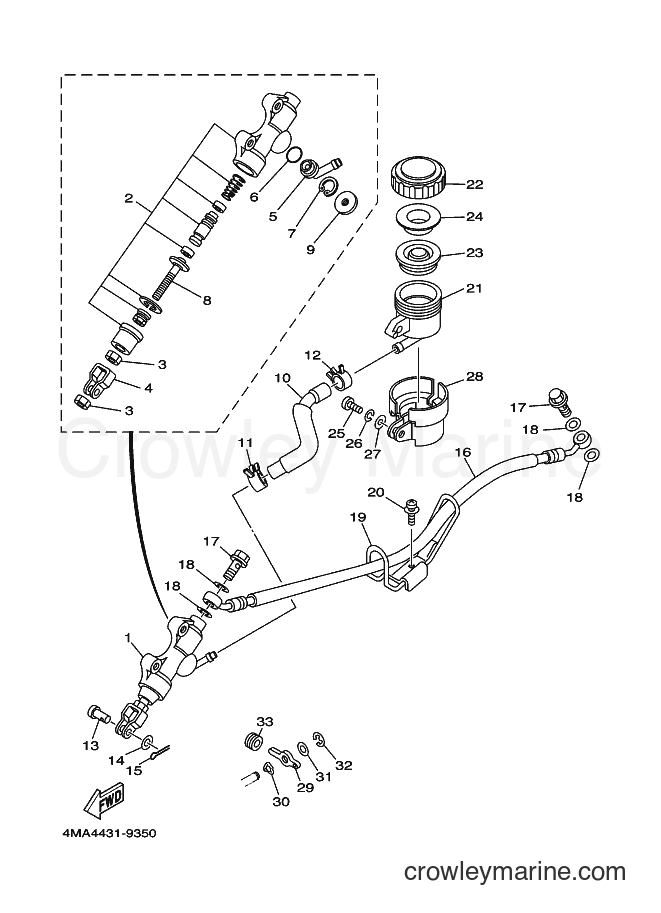

2000 Street Bike V120JR-S - V120JR-S (4MA5) [010] REAR MASTER CYLINDER diagram
![Yamaha Motors V120JR-S (4MA5) [010] - REAR MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/RoZNwILs.png)
1
Yamaha Motors
RR. MASTER CYLINDER ASSY.4MA-F583V-00
Required: 1
RR. MASTER CYLINDER ASSY.
Price unavailable
2
Yamaha Motors
. CYLINDER KIT, MASTER*
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
3
Yamaha Motors
. NUT4SS-F7218-00
Required: 2
. NUT
Price unavailable
4
Yamaha Motors
. JOINT2YK-F7222-00
Required: 1
. JOINT
Price unavailable
5
Yamaha Motors
. JOINT2VN-F582A-50
Required: 1
. JOINT
Price unavailable
-50%
6
Yamaha Motors
O-Ring93210-15566-00
Required: 1
. O-RING
Supersedes: 93210-15620-00
In stock
5+ in stock
$4.25
You save $4.25
7
Yamaha Motors
. CIRCLIP2VN-F5866-00
Required: 1
. CIRCLIP
Price unavailable
8
Yamaha Motors
. PIN, BRAKE ROD3KW-F7234-00
Required: 1
. PIN, BRAKE ROD
Price unavailable
9
Yamaha Motors
. COVER, DUST3FV-F589A-00
Required: 1
. COVER, DUST
Price unavailable
10
Yamaha Motors
HOSE, RESERVOIR4MA-F5895-00
Required: 1
HOSE, RESERVOIR
Price unavailable
-10%
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
$7.64
You save $0.85
-10%
14
Yamaha Motors
Plate Washer90201-08083-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
15
Yamaha Motors
Cotter Pin91490-16020-00
Required: 1
PIN, COTTER
Supersedes: 91401-16012-00
$6.29
You save $0.70
16
Yamaha Motors
HOSE, BRAKE 24MA-F5873-10
Required: 1
HOSE, BRAKE 2
Price unavailable
16
Yamaha Motors
HOSE, BRAKE 24MA-F5873-01
Required: 1
HOSE, BRAKE 2
Price unavailable
17
Yamaha Motors
BOLT, UNION90401-10810
Required: 2
BOLT, UNION
Price unavailable
-20%
18
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
19
Yamaha Motors
HOLDER, BRAKE HOSE 14MA-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
20
Yamaha Motors
SCREW, PAN HEAD WITH WASHER9760L-06116
Required: 1
SCREW, PAN HEAD WITH WASHER
Price unavailable
-10%
21
Yamaha Motors
Reservoir Tank47X-25894-00-00
Required: 1
TANK, RESERVOIR
$39.59
You save $4.40
-10%
22
Yamaha Motors
Reservoir Cap2KF-25852-50-00
Required: 1
CAP, RESERVOIR
Supersedes: 2GU-25852-50-00
$46.79
You save $5.20
-10%
23
Yamaha Motors
Reservoir Diaphragm360-25854-01-00
Required: 1
DIAPHRAGM, RESERVOIR
$23.39
You save $2.60
-10%
24
Yamaha Motors
DIAPRAGHM BUSH2GU-25855-00-00
Required: 1
BUSH,DIAPHRAGM
$30.59
You save $3.40
-20%
25
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-06020-00
In stock
Only 5 remaining
$1.88
You save $0.47
-50%
26
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, SPRING
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
27
Yamaha Motors
Plate Washer90201-06055-00
Required: 1
WASHER, PLATE
$2.97
You save $0.33
28
Yamaha Motors
COVER, RESERVOIR TANK4MA-F5888-00
Required: 1
COVER, RESERVOIR TANK
Price unavailable
29
Yamaha Motors
LEVER4MA-F7262-00
Required: 1
LEVER
Price unavailable
30
Yamaha Motors
WASHER, WAVE90206-08809
Required: 1
WASHER, WAVE
Price unavailable
-10%
$8.54
You save $0.95
In stock
5+ in stock
$3.54
-10%
$2.79
You save $0.31
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
