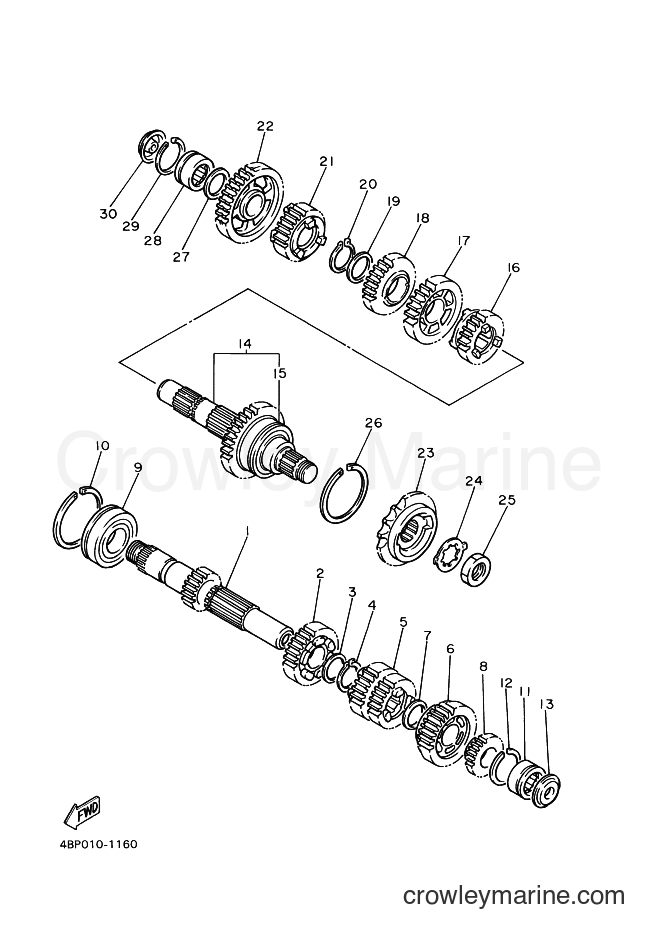

2000 Street Bike XJ600S - XJ600S (4BRG) [110] TRANSMISSION diagram
![Yamaha Motors XJ600S (4BRG) [110] - TRANSMISSION](https://cdn.crowleymarine.com/yamaha/tqvfeFGK.png)
-10%
1
Yamaha Motors
Main Axle4BR-17411-00-00
Required: 1
AXLE, MAIN (15T)
$111.59
You save $12.40
-10%
2
Yamaha Motors
5th Pinion Gear4BR-17151-00-00
Required: 1
GEAR, 5TH PINION (23T)
No longer availableSearch Nationwide Inventory
$99.89
You save $11.10
-10%
$7.64
You save $0.85
-10%
$4.00
You save $0.45
-10%
5
Yamaha Motors
3rd Pinion Gear4BR-17131-00-00
Required: 1
GEAR, 3RD PINION (27T)
No longer availableSearch Nationwide Inventory
$124.19
You save $13.80
-10%
6
Yamaha Motors
6TH PINION GEAR4BR-17161-01-00
Required: 1
GEAR, 6TH PINION (28T)
Supersedes: 4BR-17161-02-00
No longer availableSearch Nationwide Inventory
$117.89
You save $13.10
-10%
7
Yamaha Motors
Plate Washer90201-200K3-00
Required: 1
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$3.56
You save $0.40
-10%
8
Yamaha Motors
2nd Pinion Gear4BR-17121-00-00
Required: 1
GEAR, 2ND PINION (18T)
No longer availableSearch Nationwide Inventory
$80.79
You save $8.98
-10%
9
Yamaha Motors
BEARING93306-30504-00
Required: 1
BEARING (6305NC3)
Supersedes: 93306-30530-00
$70.19
You save $7.80
-10%
$21.59
You save $2.40
-10%
11
Yamaha Motors
BEARING,CYL.#1193311-42045-00
Required: 1
BEARING (20NG3315NE)
$30.59
You save $3.40
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
14
Yamaha Motors
DRIVE AXLE ASSEMBLY4BR-17402-01-00
Required: 1
DRIVE AXLE ASSY
No longer availableSearch Nationwide Inventory
$333.89
You save $37.10
-10%
15
Yamaha Motors
SD-TYPE OIL SEAL93102-35109-00
Required: 1
. OIL SEAL (SD-35-62-6 HS)
$26.09
You save $2.90
-10%
16
Yamaha Motors
6th Wheel Gear4BR-17261-00-00
Required: 1
GEAR, 6TH WHEEL (23T)
No longer availableSearch Nationwide Inventory
$89.99
You save $10.00
-10%
17
Yamaha Motors
3RD WHEEL GEAR4BR-17231-00-00
Required: 1
GEAR, 3RD WHEEL (28T)
No longer availableSearch Nationwide Inventory
$89.99
You save $10.00
-10%
18
Yamaha Motors
4TH WHEEL GEAR4BR-17241-00-00
Required: 1
GEAR, 4TH WHEEL (29T)
No longer availableSearch Nationwide Inventory
$88.19
You save $9.80
-10%
$7.64
You save $0.85
-10%
$4.00
You save $0.45
-10%
21
Yamaha Motors
5th Wheel Gear4BR-17251-01-00
Required: 1
GEAR, 5TH WHEEL (21T)
No longer availableSearch Nationwide Inventory
$89.99
You save $10.00
-10%
22
Yamaha Motors
1st Gear Wheel4BR-17211-00-00
Required: 1
GEAR, 1ST WHEEL (41T)
$71.99
You save $8.00
-10%
23
Yamaha Motors
DRIVE SPROCKET 16T4BR-17460-00-00
Required: 1
SPROCKET, DRIVE (16T)
$70.19
You save $7.80
-50%
In stock
Only 4 remaining
$3.25
You save $3.25
-10%
$18.89
You save $2.10
-10%
$21.59
You save $2.40
-10%
27
Yamaha Motors
Plate Washer90201-20276-00
Required: 1
WASHER, PLATE (T=1.0)
$8.54
You save $0.95
-10%
28
Yamaha Motors
BEARING,CYL.#1193311-42045-00
Required: 1
BEARING (20NG3315NE)
$30.59
You save $3.40
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
