2000 Street Bike XJ900S - XJ900S (4KM9) [050] PICK UP COIL & GOVERNOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

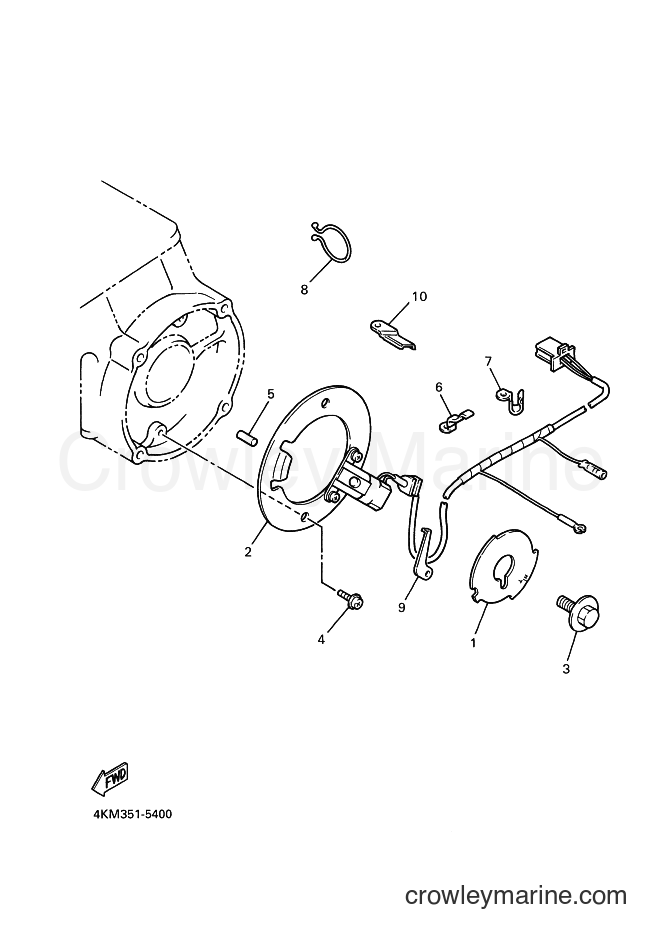

Yamaha Motors XJ900S (4KM9) [050] - PICK UP COIL & GOVERNOR
Change View:
ROTOR
1
Yamaha Motors
ROTOR4KM-81673-00
Required: 1
ROTOR
Price unavailable
BASE, PICKUP
2
Yamaha Motors
BASE, PICKUP4KM-81671-00
Required: 1
BASE, PICKUP
Price unavailable
-10%
Washer Based Bolt
3
Yamaha Motors
Washer Based Bolt90105-10445-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Screw
4
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, WITH WASHER
Supersedes: 90159-06107-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.69
You save $0.41
More details
CLAMP
6
Yamaha Motors
CLAMP90465-08369
Required: 1
CLAMP
Price unavailable
-10%
Clamp
8
Yamaha Motors
Clamp90464-30040-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
CLAMP
10
Yamaha Motors
CLAMP90462-12221
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
