2000 Street Bike XJR1300SP - XJR1300SP (5EAE) [080] REAR SUSPENSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

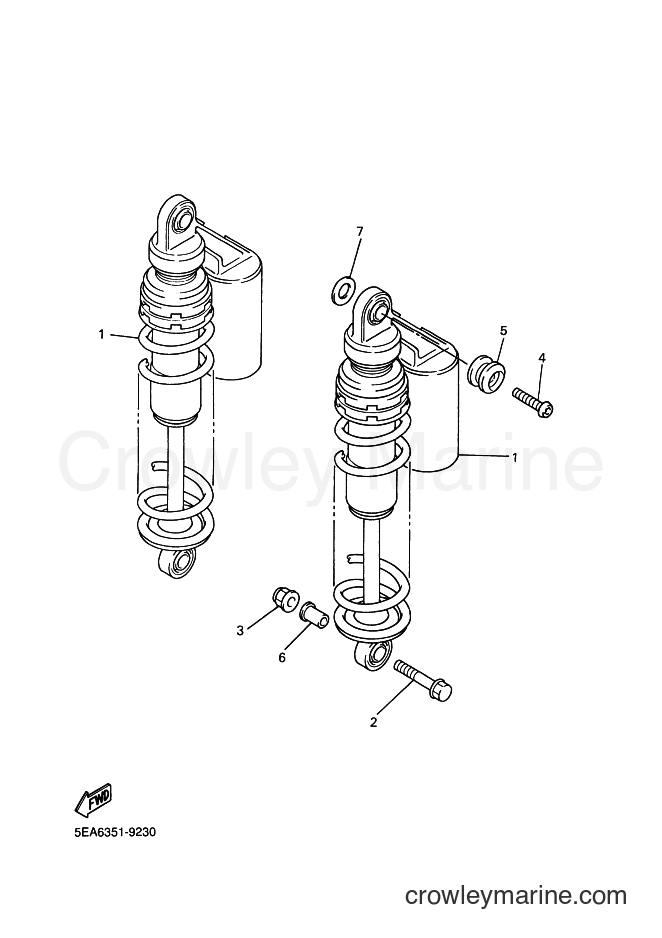

Yamaha Motors XJR1300SP (5EAE) [080] - REAR SUSPENSION
Change View:
SHOCK ABSORBER ASSY, REAR
1
Yamaha Motors
SHOCK ABSORBER ASSY, REAR4PU-22210-10
Required: 2
SHOCK ABSORBER ASSY, REAR
Price unavailable
-10%
Flange Bolt
2
Yamaha Motors
Flange Bolt95024-10045-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BOLT
4
Yamaha Motors
BOLT5EA-22277-00
Required: 2
BOLT
Price unavailable
HOOK
5
Yamaha Motors
HOOK5EA-2216F-00
Required: 2
HOOK
Price unavailable
COLLAR, DISTANCE
6
Yamaha Motors
COLLAR, DISTANCE4KG-22253-00
Required: 2
COLLAR, DISTANCE
Price unavailable
-10%
Washer
7
Yamaha Motors
Washer92907-14600-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$1.60
$1.44
You save $0.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
