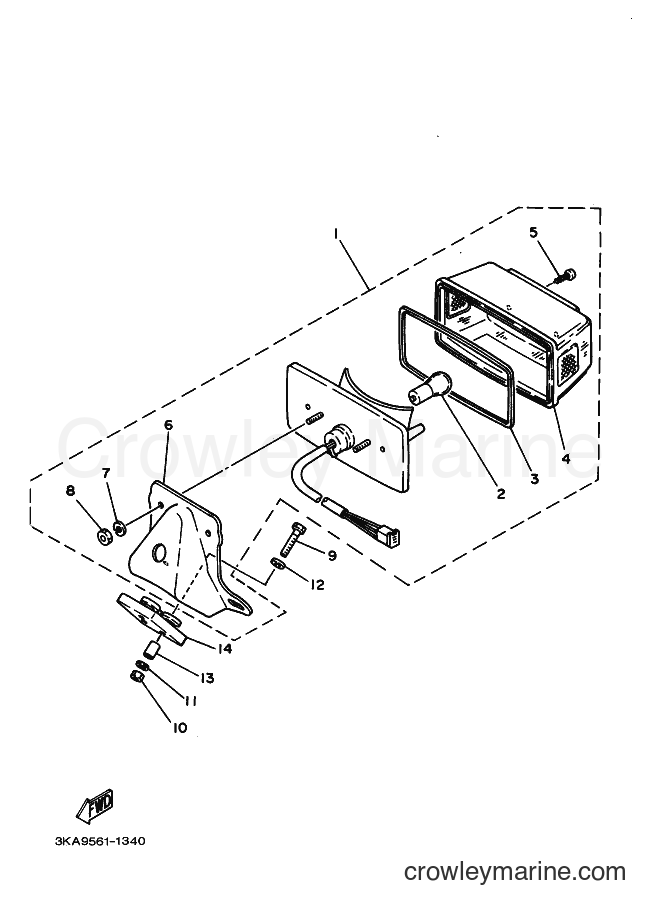

2001 Street Bike RX-K - RX-K (3KA9) [010] TAILLIGHT diagram
![Yamaha Motors RX-K (3KA9) [010] - TAILLIGHT](https://cdn.crowleymarine.com/yamaha/HmgBiumC.png)
1
Yamaha Motors
TAILLIGHT ASSY3KA-H4700-00
Required: 1
TAILLIGHT ASSY
Price unavailable
2
Yamaha Motors
. BULB (12V 21/5W)3XA-H4714-00
Required: 1
. BULB (12V 21/5W)
Price unavailable
3
Yamaha Motors
. GASKET, LENS5T5-H4523-V0
Required: 1
. GASKET, LENS
Price unavailable
4
Yamaha Motors
. LENS, TAILLIGHT3KA-H4521-00
Required: 1
. LENS, TAILLIGHT
Price unavailable
5
Yamaha Motors
. SCREW, TAPPING97707-40530
Required: 2
. SCREW, TAPPING
Price unavailable
6
Yamaha Motors
. BRACKET, LICENCE3KA-H4551-30-33
Required: 1
. BRACKET, LICENCE
Price unavailable
-50%
7
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
. WASHER, SPRING
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
8
Yamaha Motors
Nut95317-06600-00
Required: 2
. NUT
Supersedes: 95307-06600-00
$3.46
You save $0.38
-10%
9
Yamaha Motors
Bolt97017-06030-00
Required: 3
BOLT
Supersedes: 97007-06030-00
$3.51
You save $0.39
-10%
10
Yamaha Motors
Nut95317-06600-00
Required: 3
NUT
Supersedes: 95307-06600-00
$3.46
You save $0.38
-50%
11
Yamaha Motors
Spring Washer92907-06100-00
Required: 3
WASHER, SPRING
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
12
Yamaha Motors
WASHER90209-06012-00
Required: 3
WASHER
Supersedes: 90209-06174-00
$5.84
You save $0.65
-10%
$2.48
You save $0.27
14
Yamaha Motors
DAMPER3M5-84553-01
Required: 1
DAMPER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
