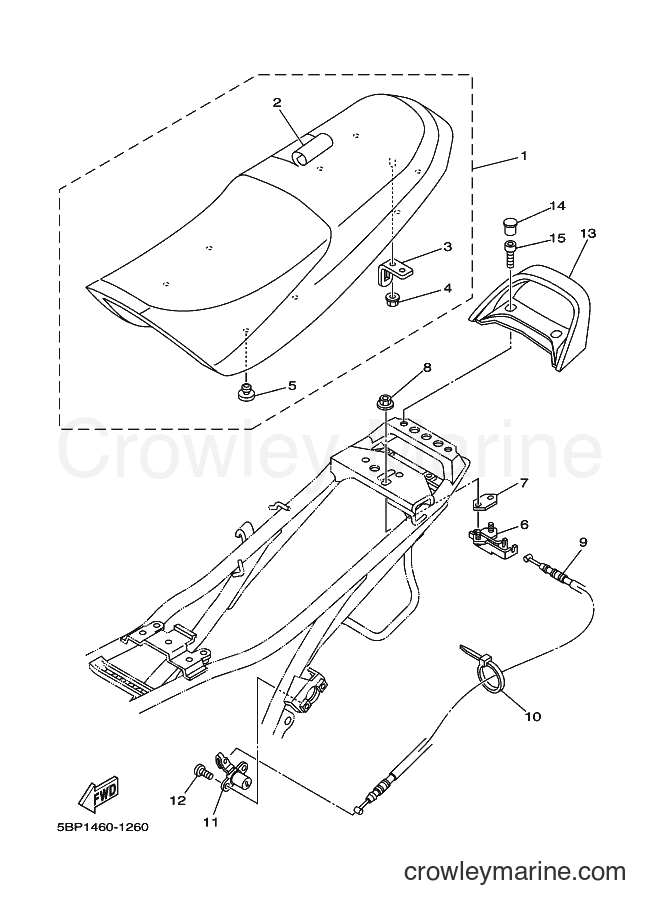

2001 Street Bike SX-4 - SX-4 (5BP1) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SX-4 (5BP1) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY5BP-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT5BP-F4731-00
Required: 1
. COVER, SEAT
Price unavailable
. BRACKET, SEAT
3
Yamaha Motors
. BRACKET, SEAT5BP-F4728-00
Required: 1
. BRACKET, SEAT
Price unavailable
-10%
SEAT PAD (SX4 T105L)
5
Yamaha Motors
SEAT PAD (SX4 T105L)5BP-F4741-00-00
Required: 8
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$3.50
$3.15
You save $0.35
More details
SEAT LOCK ASSY
6
Yamaha Motors
SEAT LOCK ASSY5BP-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
PLATE
7
Yamaha Motors
PLATE5BP-F4792-00
Required: 1
PLATE
Price unavailable
-10%
Flange Nut
8
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
CABLE, SEAT LOCK
9
Yamaha Motors
CABLE, SEAT LOCK5BP-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
ROTOR ASSY
11
Yamaha Motors
ROTOR ASSY5BP-F4799-00
Required: 1
ROTOR ASSY
Price unavailable
-10%
Bind Screw
12
Yamaha Motors
Bind Screw98907-06012-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
HANDLE, SEAT
13
Yamaha Motors
HANDLE, SEAT5BP-F4773-00
Required: 1
HANDLE, SEAT
Price unavailable
CAP, BOLT
14
Yamaha Motors
CAP, BOLT5BP-F3469-00
Required: 2
CAP, BOLT
Price unavailable
-10%
Bolt
15
Yamaha Motors
Bolt91317-08016-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
