2001 Street Bike V100 - V100 (4VJ3) [010] CRANKCASE COVER 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

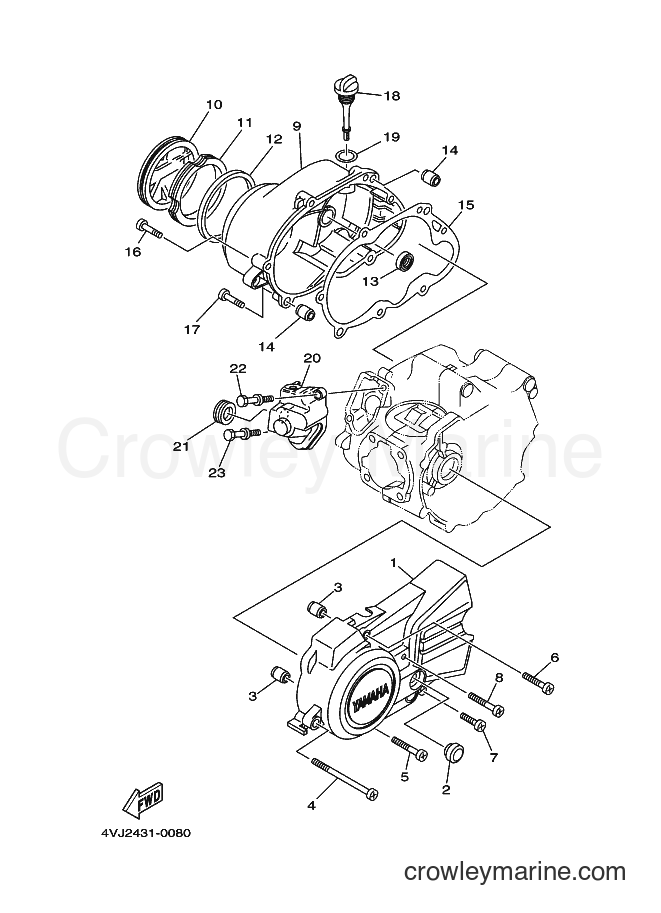

Yamaha Motors V100 (4VJ3) [010] - CRANKCASE COVER 1
Change View:
COVER, CRANKCASE 1
1
Yamaha Motors
COVER, CRANKCASE 13NA-E5411-00
Required: 1
COVER, CRANKCASE 1
Price unavailable
COVER, CAP
2
Yamaha Motors
COVER, CAP2JH-15417-00
Required: 1
COVER, CAP
Price unavailable
SCREW, PAN HEAD
4
Yamaha Motors
SCREW, PAN HEAD90157-06817
Required: 1
SCREW, PAN HEAD
Price unavailable
-10%
Pan Head Screw
5
Yamaha Motors
Pan Head Screw98580-06040-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98504-06040-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98580-06040-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98504-06040-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98580-06550-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98504-06050-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
COVER, CRANKCASE 2
9
Yamaha Motors
COVER, CRANKCASE 23NA-E5421-00
Required: 1
COVER, CRANKCASE 2
Price unavailable
COVER, GENERATOR 2
10
Yamaha Motors
COVER, GENERATOR 23NA-E5425-00
Required: 1
COVER, GENERATOR 2
Price unavailable
DAMPER 4
11
Yamaha Motors
DAMPER 43NA-E5337-00
Required: 1
DAMPER 4
Price unavailable
-10%
Clip
12
Yamaha Motors
Clip90468-98132-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
OIL SEAL
13
Yamaha Motors
OIL SEAL93104-10826
Required: 1
OIL SEAL
Price unavailable
GASKET, CRANKCASE COVER 1
15
Yamaha Motors
GASKET, CRANKCASE COVER 13NA-E5451-00
Required: 1
GASKET, CRANKCASE COVER 1
Price unavailable
-10%
Pan Head Screw
17
Yamaha Motors
Pan Head Screw98580-06040-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98504-06040-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
PLUG, OIL LEVEL
18
Yamaha Motors
PLUG, OIL LEVEL3NA-E5362-00
Required: 1
PLUG, OIL LEVEL
Price unavailable
O-RING
19
Yamaha Motors
O-RING93210-21865
Required: 1
O-RING
Price unavailable
COVER, OIL PUMP
20
Yamaha Motors
COVER, OIL PUMP3NA-E5416-00
Required: 1
COVER, OIL PUMP
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
21
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-21436-00
Required: 1
GROMMET
Supersedes: 90480-21038-00
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
BOLT
22
Yamaha Motors
BOLT90101-06207
Required: 1
BOLT
Price unavailable
BOLT
23
Yamaha Motors
BOLT90101-06135
Required: 1
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
