2001 Street Bike YBR125E - YBR125E (5NH3) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

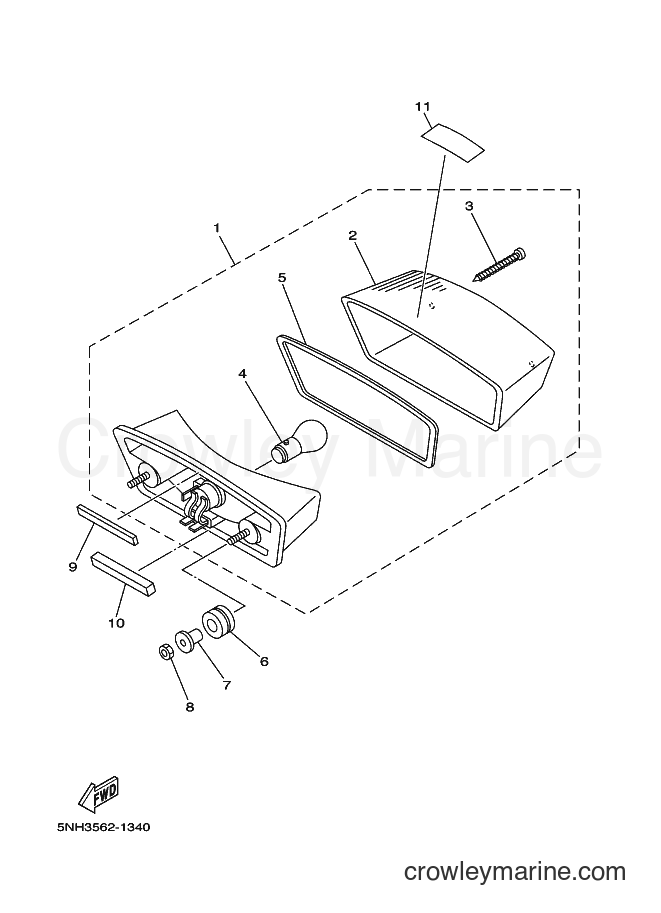

Yamaha Motors YBR125E (5NH3) [010] - TAILLIGHT

Change View:

Yamaha Motors

TAILLIGHT UNIT ASSY5CF-H4710-02

Required: 1

TAILLIGHT UNIT ASSY

Price unavailable

Yamaha Motors

. LENS, TAILLIGHT5CF-H4521-00

Required: 1

. LENS, TAILLIGHT

Price unavailable

Yamaha Motors

. SCREW, LENS FITTING5CF-H4524-00

Required: 2

. SCREW, LENS FITTING

Price unavailable

-50%

Yamaha Motors

Bulb1A2-84714-50-00

Required: 1

. BULB (12V-21/5W)

Supersedes: 1A2-84714-41-00

In stock

Only 3 remaining

~~$15.49~~

$7.74

You save $7.74

More details

Yamaha Motors

. GASKET, LENS5CF-H4523-00

Required: 1

. GASKET, LENS

Price unavailable

-10%

Yamaha Motors

GROMMET, WATER TUBE (UPPER)90480-14229-00

Required: 2

GROMMET

Supersedes: 90480-14555-00

~~$9.49~~

$8.54

You save $0.95

-10%

COLLAR

~~$10.49~~

$9.44

You save $1.05

More details

-10%

Yamaha Motors

95317-06600-009530N-06600-00

Required: 2

NUT

Supersedes: 9530M-06600-00

No longer availableSearch Nationwide Inventory

~~$1.50~~

$1.35

You save $0.15

More details

Yamaha Motors

DAMPER5HH-H4753-00

Required: 1

DAMPER

Price unavailable

Yamaha Motors

DAMPER, TAIL 15HH-H4736-00

Required: 1

DAMPER, TAIL 1

Price unavailable

Yamaha Motors

STAY, SEAT5NH-F471A-10

Required: 1

STAY, SEAT

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
