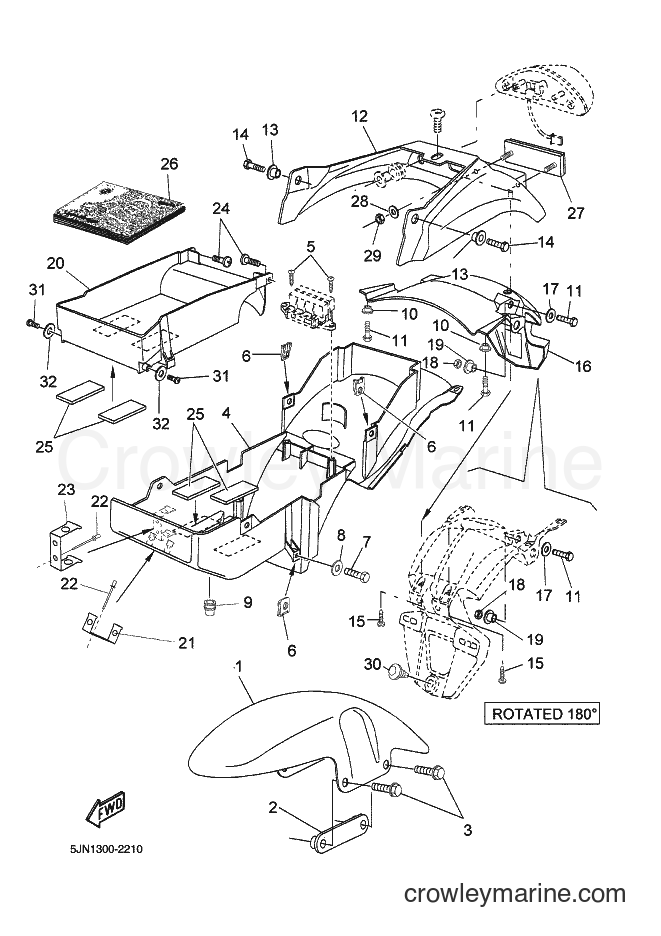

2002 Street Bike BT1100 - BT1100 (5JN1) [020] FENDER diagram
![Yamaha Motors BT1100 (5JN1) [020] - FENDER](https://cdn.crowleymarine.com/yamaha/Nqu49WhF.png)
1
Yamaha Motors
FENDER, FRONT5JN-F1511-00-P0
Required: 1
FENDER, FRONT
Price unavailable
1
Yamaha Motors
FENDER, FRONT5JN-F1511-00-P2
Required: 1
FENDER, FRONT
Price unavailable
1
Yamaha Motors
FENDER, FRONT5JN-F1511-00-4B
Required: 1
FENDER, FRONT
Price unavailable
2
Yamaha Motors
BRACKET, FENDER4KG-21512-00
Required: 2
BRACKET, FENDER
Price unavailable
-50%
In stock
Only 3 remaining
$1.23
You save $1.23
4
Yamaha Motors
FENDER, REAR5JN-F1611-00
Required: 1
FENDER, REAR
Price unavailable
-10%
5
Yamaha Motors
Truss Screw97707-60016-00
Required: 2
SCREW, TAPPING
$1.67
You save $0.19
6
Yamaha Motors
NUT,PLATE2VW-F1736-00
Required: 4
NUT,PLATE
Price unavailable
7
Yamaha Motors
BOLT9701M-06014
Required: 2
BOLT
Price unavailable
-10%
$0.89
You save $0.10
9
Yamaha Motors
DAMPER 15JN-F1638-00
Required: 1
DAMPER 1
Price unavailable
10
Yamaha Motors
COLLAR90387-06X19
Required: 2
COLLAR
Price unavailable
11
Yamaha Motors
BOLT9701M-06016
Required: 4
BOLT
Price unavailable
12
Yamaha Motors
GUARD, MUD5JN-F1629-00
Required: 1
GUARD, MUD
Price unavailable
13
Yamaha Motors
COLLAR90387-06X23
Required: 2
COLLAR
Price unavailable
14
Yamaha Motors
BOLT9701M-06016
Required: 2
BOLT
Price unavailable
-10%
15
Yamaha Motors
Truss Screw97707-40012-00
Required: 4
SCREW, TAPPING
$8.54
You save $0.95
16
Yamaha Motors
BRACKET, LICENSE5JN-F1685-00
Required: 1
BRACKET, LICENSE
Price unavailable
-10%
$0.89
You save $0.10
-10%
No longer availableSearch Nationwide Inventory
$1.35
You save $0.15
-10%
$9.44
You save $1.05
20
Yamaha Motors
PLATE5JN-F176E-00
Required: 1
PLATE
Price unavailable
21
Yamaha Motors
BRACKET, FILTER5JN-F4566-00
Required: 1
BRACKET, FILTER
Price unavailable
22
Yamaha Motors
RIVET, BLIND90267-40X01
Required: 4
RIVET, BLIND
Price unavailable
23
Yamaha Motors
STAY, RELAY5JN-H1953-00
Required: 1
STAY, RELAY
Price unavailable
-10%
$1.62
You save $0.18
25
Yamaha Motors
DAMPER, LOCATING 15JN-F1778-00
Required: 4
DAMPER, LOCATING 1
Price unavailable
26
Yamaha Motors
MANUAL,OWNER'S5JN-F8199-G0
Required: 1
MANUAL,OWNER'S
Price unavailable
27
Yamaha Motors
REAR REFLECTOR ASSY5JN-H5130-00
Required: 1
REAR REFLECTOR ASSY
Price unavailable
-10%
$1.62
You save $0.18
29
Yamaha Motors
NUT, FLANGE9570L-04300
Required: 2
NUT, FLANGE
Price unavailable
30
Yamaha Motors
DAMPER4DL-F1717-00
Required: 1
DAMPER
Price unavailable
-10%
31
Yamaha Motors
Tapping Screw97707-40506-00
Required: 2
SCREW, TAPPING
$4.05
You save $0.45
-10%
32
Yamaha Motors
Plate Washer90201-05033-00
Required: 2
WASHER, PLATE
$10.34
You save $1.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
