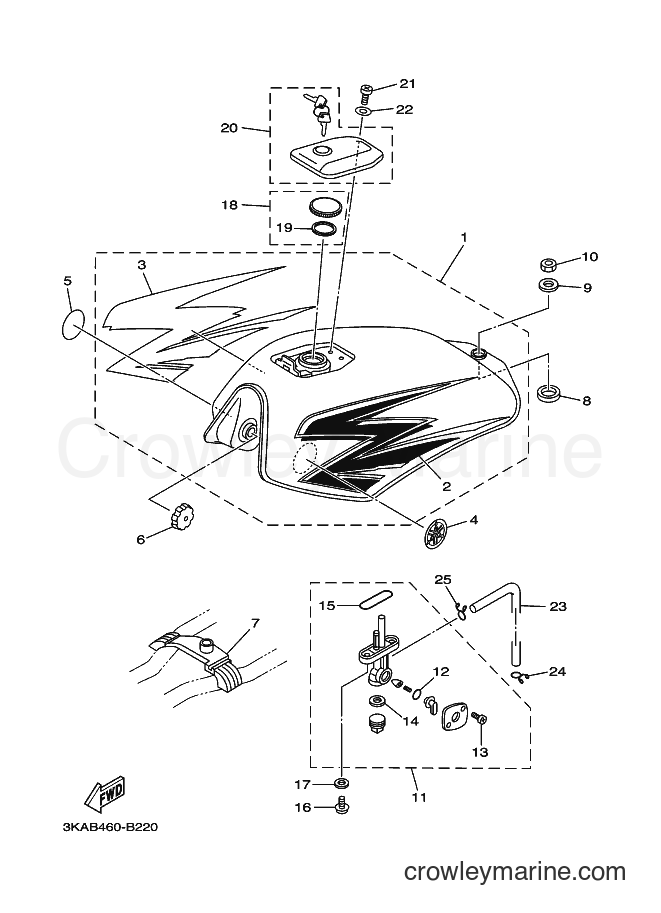

2003 Street Bike RX-K - RX-K (3KAB) [010] FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX-K (3KAB) [010] - FUEL TANK
Change View:
FUEL TANK COMP.
1
Yamaha Motors
FUEL TANK COMP.3KA-F4110-B2-33
Required: 1
FUEL TANK COMP.
Price unavailable
. GRAPHIC 3
2
Yamaha Motors
. GRAPHIC 33KA-F4246-V0
Required: 1
. GRAPHIC 3
Price unavailable
. GRAPHIC 3
2
Yamaha Motors
. GRAPHIC 33KA-F4246-X0
Required: 1
. GRAPHIC 3
Price unavailable
. GRAPHIC 3
2
Yamaha Motors
. GRAPHIC 33KA-F4246-W0
Required: 1
. GRAPHIC 3
Price unavailable
. GRAPHIC
3
Yamaha Motors
. GRAPHIC3KA-F4247-V0
Required: 1
. GRAPHIC
Price unavailable
. GRAPHIC
3
Yamaha Motors
. GRAPHIC3KA-F4247-W0
Required: 1
. GRAPHIC
Price unavailable
. GRAPHIC
3
Yamaha Motors
. GRAPHIC3KA-F4247-X0
Required: 1
. GRAPHIC
Price unavailable
EMBLEM
4
Yamaha Motors
EMBLEM3KA-F416B-00
Required: 1
EMBLEM
Price unavailable
EMBLEM
5
Yamaha Motors
EMBLEM3KA-F417B-00
Required: 1
EMBLEM
Price unavailable
DAMPER, LOCATING 3
6
Yamaha Motors
DAMPER, LOCATING 33KA-F4183-00
Required: 2
DAMPER, LOCATING 3
Price unavailable
DAMPER, LOCATING 2
7
Yamaha Motors
DAMPER, LOCATING 23KA-F4182-00
Required: 1
DAMPER, LOCATING 2
Price unavailable
DAMPER, LOCATING 1
8
Yamaha Motors
DAMPER, LOCATING 13KA-F4181-00
Required: 1
DAMPER, LOCATING 1
Price unavailable
-10%
Plate Washer
9
Yamaha Motors
Plate Washer90201-08612-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Nut
10
Yamaha Motors
Nut95337-08600-00
Required: 1
NUT
Supersedes: 95307-08600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
FUEL COCK ASSY 1
11
Yamaha Motors
FUEL COCK ASSY 13KA-F4500-00
Required: 1
FUEL COCK ASSY 1
Price unavailable
. SEAL, COCK
12
Yamaha Motors
. SEAL, COCK*
Required: 1
. SEAL, COCK
Price unavailable
. SCREW, PAN HEAD
13
Yamaha Motors
. SCREW, PAN HEAD98504-03008
Required: 2
. SCREW, PAN HEAD
Price unavailable
. GASKET
14
Yamaha Motors
. GASKET4X8-24565-V0
Required: 1
. GASKET
Price unavailable
. GASKET
15
Yamaha Motors
. GASKET4X8-24512-V0
Required: 1
. GASKET
Price unavailable
Screw
16
Yamaha Motors
Screw90149-06011-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$2.84
More details
CAP ASSY
18
Yamaha Motors
CAP ASSY4YY-F4610-00
Required: 1
CAP ASSY
Price unavailable
. GASKET, CAP
19
Yamaha Motors
. GASKET, CAP4YY-F4612-00
Required: 1
. GASKET, CAP
Price unavailable
CAP ASSY
20
Yamaha Motors
CAP ASSY29N-F4650-V0
Required: 1
CAP ASSY
Price unavailable
Plate Washer
22
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.98
More details
-10%
Scissor Clip
24
Yamaha Motors
Scissor Clip90467-08003-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Scissor Clip
25
Yamaha Motors
Scissor Clip90467-08003-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
