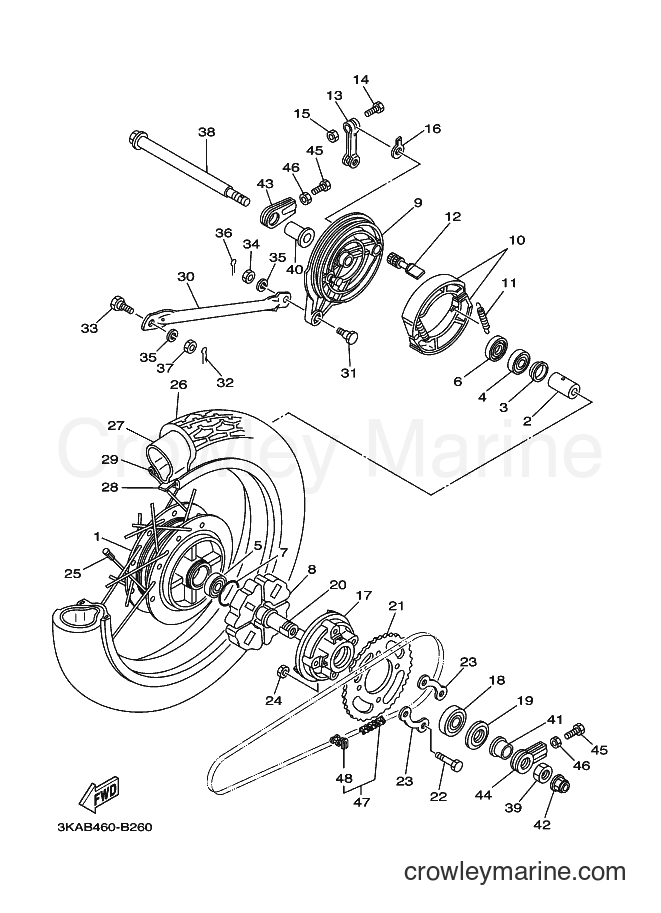

2003 Street Bike RX-K - RX-K (3KAB) [010] REAR WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX-K (3KAB) [010] - REAR WHEEL
Change View:
HUB, REAR
1
Yamaha Motors
HUB, REAR3WL-F5311-00-33
Required: 1
HUB, REAR
Price unavailable
-10%
Spacer
2
Yamaha Motors
Spacer90560-15136-00
Required: 1
SPACER
Cross Ship
Leaves in 2-5 days
$20.99
$18.89
You save $2.10
More details
FLANGE, SPACER
3
Yamaha Motors
FLANGE, SPACER5BP-F5315-00
Required: 1
FLANGE, SPACER
Price unavailable
BEARING
4
Yamaha Motors
BEARING93306-202X0
Required: 1
BEARING
Price unavailable
BEARING
4
Yamaha Motors
BEARING93306-202Y1
Required: 1
BEARING
Price unavailable
BEARING
5
Yamaha Motors
BEARING93306-202YA
Required: 1
BEARING
Price unavailable
BEARING
5
Yamaha Motors
BEARING93306-202YB
Required: 1
BEARING
Price unavailable
OIL SEAL
6
Yamaha Motors
OIL SEAL93104-22837
Required: 1
OIL SEAL
Price unavailable
O-RING
7
Yamaha Motors
O-RING93210-418G7
Required: 1
O-RING
Price unavailable
DAMPER
8
Yamaha Motors
DAMPER23T-F5364-00
Required: 4
DAMPER
Price unavailable
PLATE, BRAKE SHOE
9
Yamaha Motors
PLATE, BRAKE SHOE5BP-F5321-00-33
Required: 1
PLATE, BRAKE SHOE
Price unavailable
BRAKE SHOE COMP.
10
Yamaha Motors
BRAKE SHOE COMP.5BP-F5330-00
Required: 2
BRAKE SHOE COMP.
Price unavailable
CAMSHAFT
12
Yamaha Motors
CAMSHAFT3Y6-F5351-00
Required: 1
CAMSHAFT
Price unavailable
LEVER, CAMSHAFT
13
Yamaha Motors
LEVER, CAMSHAFT3KA-F5355-00
Required: 1
LEVER, CAMSHAFT
Price unavailable
-10%
Bolt
14
Yamaha Motors
Bolt90101-06278-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
-10%
Nut
15
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.46
You save $0.38
More details
PLATE, INDICATOR
16
Yamaha Motors
PLATE, INDICATOR4ST-F533A-00
Required: 1
PLATE, INDICATOR
Price unavailable
CLUTCH, HUB
17
Yamaha Motors
CLUTCH, HUB37J-F5366-02
Required: 1
CLUTCH, HUB
Price unavailable
BEARING
18
Yamaha Motors
BEARING93306-004Y8
Required: 1
BEARING
Price unavailable
BEARING
18
Yamaha Motors
BEARING93306-004X6
Required: 1
BEARING
Price unavailable
AXLE, SPROCKET
20
Yamaha Motors
AXLE, SPROCKET29N-25387-00
Required: 1
AXLE, SPROCKET
Price unavailable
SPROCKET, DRIVEN (37T)
21
Yamaha Motors
SPROCKET, DRIVEN (37T)4ST-F5437-00
Required: 1
SPROCKET, DRIVEN (37T)
Price unavailable
BOLT
22
Yamaha Motors
BOLT90101-08800
Required: 4
BOLT
Price unavailable
WASHER
23
Yamaha Motors
WASHER3HB-F5412-00
Required: 2
WASHER
Price unavailable
SPOKE SET, REAR
25
Yamaha Motors
SPOKE SET, REAR1TR-F5304-00
Required: 1
SPOKE SET, REAR
Price unavailable
TIRE (3.00-18 4P.R. N65)
26
Yamaha Motors
TIRE (3.00-18 4P.R. N65)94130-188X5
Required: 1
TIRE (3.00-18 4P.R. N65)
Price unavailable
TUBE (2.75/3.00-18 TR4)
27
Yamaha Motors
TUBE (2.75/3.00-18 TR4)94227-18800
Required: 1
TUBE (2.75/3.00-18 TR4)
Price unavailable
BAND, RIM (2.75-18)
28
Yamaha Motors
BAND, RIM (2.75-18)94325-18812
Required: 1
BAND, RIM (2.75-18)
Price unavailable
RIM (1.60-18)
29
Yamaha Motors
RIM (1.60-18)94416-18825
Required: 1
RIM (1.60-18)
Price unavailable
BAR, TENSION
30
Yamaha Motors
BAR, TENSION3RS-F5371-00-33
Required: 1
BAR, TENSION
Price unavailable
-10%
BOLT
31
Yamaha Motors
BOLT90109-08063-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
BOLT
33
Yamaha Motors
BOLT90109-08368-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
HEX NUT (SMALL)
34
Yamaha Motors
HEX NUT (SMALL)95317-08700-00
Required: 1
NUT
Supersedes: 95307-08700-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Spring Washer
35
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Nut
37
Yamaha Motors
Nut95337-08600-00
Required: 1
NUT
Supersedes: 95307-08600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
AXLE, WHEEL
38
Yamaha Motors
AXLE, WHEEL29N-F5381-01
Required: 1
AXLE, WHEEL
Price unavailable
NUT
39
Yamaha Motors
NUT90170-20224
Required: 1
NUT
Price unavailable
-10%
COLLAR
41
Yamaha Motors
COLLAR90387-20165-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Self-Locking Nut
42
Yamaha Motors
Self-Locking Nut90185-14112-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
PULLER, CHAIN 2
43
Yamaha Motors
PULLER, CHAIN 23M5-F5389-00
Required: 1
PULLER, CHAIN 2
Price unavailable
PULLER, CHAIN 1
44
Yamaha Motors
PULLER, CHAIN 13M5-F5388-00
Required: 1
PULLER, CHAIN 1
Price unavailable
-10%
BOLT
45
Yamaha Motors
BOLT90101-08060-00
Required: 2
BOLT
Supersedes: 90101-08034-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
HEX NUT (SMALL)
46
Yamaha Motors
HEX NUT (SMALL)95317-08700-00
Required: 2
NUT
Supersedes: 95307-08700-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
CHAIN (DID 428H-110L)
47
Yamaha Motors
CHAIN (DID 428H-110L)94580-30110
Required: 1
CHAIN (DID 428H-110L)
Price unavailable
. JOINT, CHAIN (DID 428H)
48
Yamaha Motors
. JOINT, CHAIN (DID 428H)94608-20001
Required: 1
. JOINT, CHAIN (DID 428H)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
