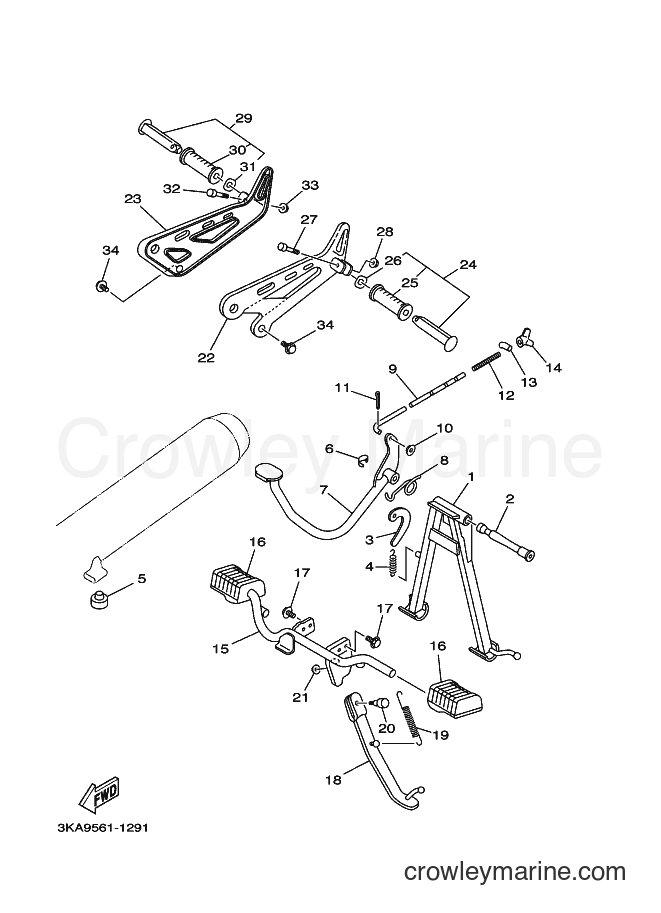

2003 Street Bike RX-K - RX-K (3KAB) [010] STAND & FOOTREST diagram
![Yamaha Motors RX-K (3KAB) [010] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/Ab8FdsoE.png)
1
Yamaha Motors
STAND, MAIN3KA-F7111-00-33
Required: 1
STAND, MAIN
Price unavailable
2
Yamaha Motors
SHAFT, MAIN STAND37J-F7112-01
Required: 1
SHAFT, MAIN STAND
Price unavailable
3
Yamaha Motors
LINK, MAIN STAND3HB-F7115-00
Required: 1
LINK, MAIN STAND
Price unavailable
-10%
4
Yamaha Motors
TENSION SPRING90506-29054-00
Required: 1
SPRING, TENSION
$3.24
You save $0.36
5
Yamaha Motors
STOPPER, MAIN STAND3HB-F7114-00
Required: 1
STOPPER, MAIN STAND
Price unavailable
-10%
$8.54
You save $0.95
7
Yamaha Motors
PEDAL, BRAKE3KA-F7211-30-93
Required: 1
PEDAL, BRAKE
Price unavailable
-10%
8
Yamaha Motors
Torsion Spring90508-32056-00
Required: 1
SPRING, TORSION
$7.64
You save $0.85
9
Yamaha Motors
ROD, BRAKE3KA-F7231-00
Required: 1
ROD, BRAKE
Price unavailable
-10%
10
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
$0.90
You save $0.10
11
Yamaha Motors
PIN, COTTER91401-20012
Required: 1
PIN, COTTER
Price unavailable
-10%
12
Yamaha Motors
Compression Spring90501-10245-00
Required: 1
SPRING, COMPRESSION
$8.54
You save $0.95
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
-50%
In stock
Only 1 remaining
$2.75
You save $2.75
15
Yamaha Motors
FOOTREST 13KA-F7411-00-33
Required: 1
FOOTREST 1
Price unavailable
16
Yamaha Motors
COVER, FOOTREST2ET-F7413-00
Required: 2
COVER, FOOTREST
Price unavailable
-50%
17
Yamaha Motors
Flange Bolt95817-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08020-00
In stock
Only 1 remaining
$5.25
You save $5.25
18
Yamaha Motors
STAND, SIDE3KA-F7311-00-33
Required: 1
STAND, SIDE
Price unavailable
-10%
19
Yamaha Motors
TENSION SPRING90506-25047-00
Required: 1
SPRING, TENSION
$9.44
You save $1.05
-10%
$8.54
You save $0.95
-10%
$9.44
You save $1.05
22
Yamaha Motors
BRACKET, FOOTREST 13KA-F7452-00-35
Required: 1
BRACKET, FOOTREST 1
Price unavailable
23
Yamaha Motors
BRACKET, FOOTREST 23KA-F7462-00-35
Required: 1
BRACKET, FOOTREST 2
Price unavailable
24
Yamaha Motors
REAR FOOTREST ASSY 13XA-F7430-00
Required: 1
REAR FOOTREST ASSY 1
Price unavailable
25
Yamaha Motors
. COVER, REAR FOOTREST3XA-F7433-00
Required: 1
. COVER, REAR FOOTREST
Price unavailable
-10%
$2.75
You save $0.30
27
Yamaha Motors
BOLT90109-066F1
Required: 1
BOLT
Price unavailable
28
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$3.60
29
Yamaha Motors
REAR FOOTREST ASSY 23XA-F7440-00
Required: 1
REAR FOOTREST ASSY 2
Price unavailable
30
Yamaha Motors
. COVER, REAR FOOTREST3XA-F7433-00
Required: 1
. COVER, REAR FOOTREST
Price unavailable
-10%
$2.75
You save $0.30
32
Yamaha Motors
BOLT90109-066F1
Required: 1
BOLT
Price unavailable
33
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$3.60
-50%
34
Yamaha Motors
Flange Bolt95814-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 95804-08020-00
In stock
Only 2 remaining
$4.75
You save $4.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
