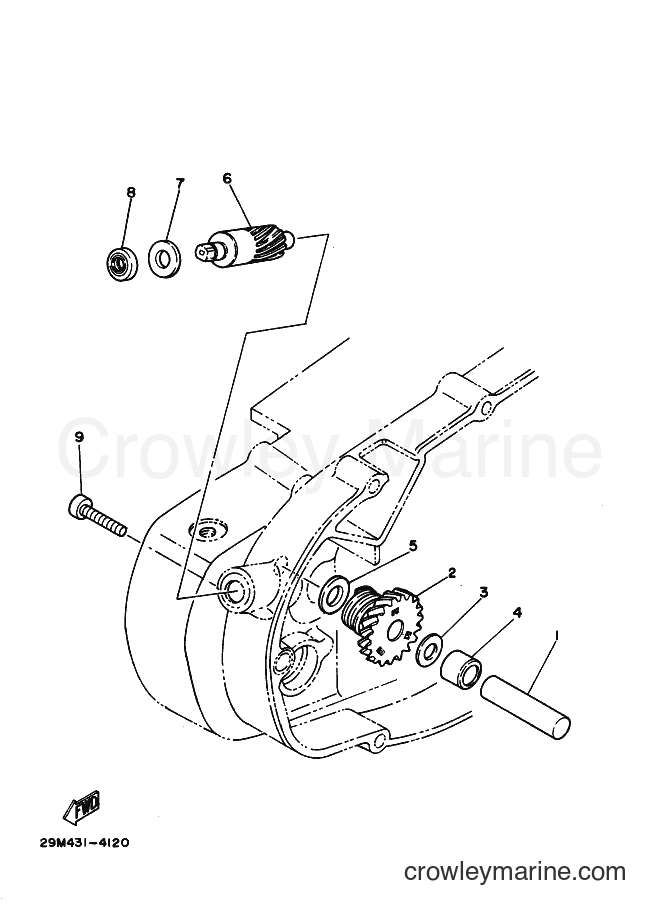

2003 Street Bike RX-K - RX-K (3KAD) [010] TACHOMETER GEAR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX-K (3KAD) [010] - TACHOMETER GEAR
Change View:
-10%
Drive Gear
2
Yamaha Motors
Drive Gear443-17831-02-00
Required: 1
GEAR, DRIVE
Cross Ship
Leaves in 2-5 days
$40.99
$36.89
You save $4.10
More details
-10%
Cam Thrust Plate
3
Yamaha Motors
Cam Thrust Plate137-13148-00-00
Required: 1
PLATE, CAM THRUST
Cross Ship
Leaves in 2-5 days
$3.85
$3.46
You save $0.38
More details
COLLAR
4
Yamaha Motors
COLLAR90387-10087-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$5.16
More details
GEAR, DRIVEN (15T)
6
Yamaha Motors
GEAR, DRIVEN (15T)1V1-17841-00
Required: 1
GEAR, DRIVEN (15T)
Price unavailable
-10%
Plate Washer
7
Yamaha Motors
Plate Washer90201-12M34-00
Required: 1
WASHER, PLATE
Supersedes: 90201-12163-00
Cross Ship
Leaves in 2-5 days
$3.90
$3.51
You save $0.39
More details
OIL SEAL
8
Yamaha Motors
OIL SEAL93109-08822
Required: 1
OIL SEAL
Price unavailable
-10%
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-06025-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.65
You save $0.40
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
