2003 Street Bike RX100T - RX100T (36L6) [010] CARBURETOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

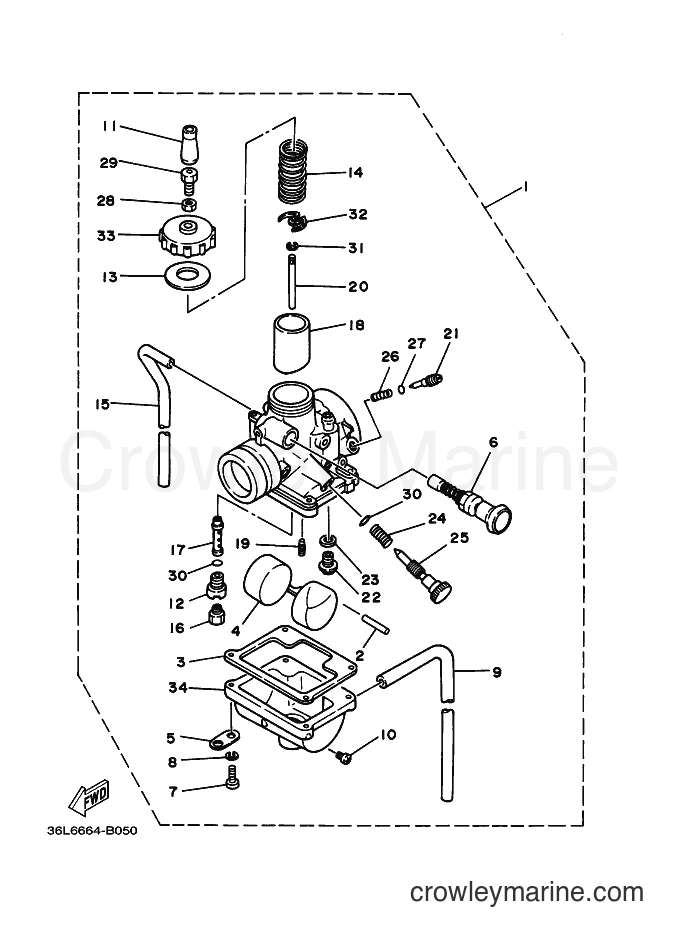

Yamaha Motors RX100T (36L6) [010] - CARBURETOR
Change View:
CARBURETOR ASSY 1
1
Yamaha Motors
CARBURETOR ASSY 136L-E4101-00
Required: 1
CARBURETOR ASSY 1
Price unavailable
. PIN, FLOAT
2
Yamaha Motors
. PIN, FLOAT36L-E4186-00
Required: 1
. PIN, FLOAT
Price unavailable
. GASKET, FLOAT CHAMBER
3
Yamaha Motors
. GASKET, FLOAT CHAMBER36L-E4184-00
Required: 1
. GASKET, FLOAT CHAMBER
Price unavailable
. FLOAT
4
Yamaha Motors
. FLOAT36L-E4185-00
Required: 1
. FLOAT
Price unavailable
. PLATE
5
Yamaha Motors
. PLATE36L-E4146-00
Required: 1
. PLATE
Price unavailable
. PLUNGER, STARTER
6
Yamaha Motors
. PLUNGER, STARTER36L-E4171-00
Required: 1
. PLUNGER, STARTER
Price unavailable
-10%
Pan Head Screw
7
Yamaha Motors
Pan Head Screw98517-04016-00
Required: 4
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. PIPE
9
Yamaha Motors
. PIPE36L-E4196-00
Required: 1
. PIPE
Price unavailable
. PLUG, DRAIN
10
Yamaha Motors
. PLUG, DRAIN36L-E4191-00
Required: 1
. PLUG, DRAIN
Price unavailable
. CAP
11
Yamaha Motors
. CAP36L-E4169-00
Required: 1
. CAP
Price unavailable
. SETTER, NEEDLE JET
12
Yamaha Motors
. SETTER, NEEDLE JET36L-E4145-00
Required: 1
. SETTER, NEEDLE JET
Price unavailable
. GASKET
13
Yamaha Motors
. GASKET36L-E4126-00
Required: 1
. GASKET
Price unavailable
. SPRING, THROTTLE VALVE
14
Yamaha Motors
. SPRING, THROTTLE VALVE36L-E4131-00
Required: 1
. SPRING, THROTTLE VALVE
Price unavailable
. PIPE
15
Yamaha Motors
. PIPE36L-E4197-00
Required: 1
. PIPE
Price unavailable
. JET, MAIN (#115)
16
Yamaha Motors
. JET, MAIN (#115)36L-E4143-23
Required: 1
. JET, MAIN (#115)
Price unavailable
. NOZZLE, MAIN
17
Yamaha Motors
. NOZZLE, MAIN36L-E4141-28
Required: 1
. NOZZLE, MAIN
Price unavailable
. VALVE, THROTTLE 1
18
Yamaha Motors
. VALVE, THROTTLE 136L-E4112-20
Required: 1
. VALVE, THROTTLE 1
Price unavailable
. JET, PILOT (# 20)
19
Yamaha Motors
. JET, PILOT (# 20)36L-E4142-00
Required: 1
. JET, PILOT (# 20)
Price unavailable
. NEEDLE
20
Yamaha Motors
. NEEDLE36L-E4116-02
Required: 1
. NEEDLE
Price unavailable
. SCREW, AIR ADJUSTING
21
Yamaha Motors
. SCREW, AIR ADJUSTING36L-E4123-00
Required: 1
. SCREW, AIR ADJUSTING
Price unavailable
. NEEDLE VALVE ASSY
22
Yamaha Motors
. NEEDLE VALVE ASSY36L-E4190-20
Required: 1
. NEEDLE VALVE ASSY
Price unavailable
. WASHER, NEEDLE VALVE
23
Yamaha Motors
. WASHER, NEEDLE VALVE36L-E4195-00
Required: 1
. WASHER, NEEDLE VALVE
Price unavailable
. SPRING, THROTTLE STOP
24
Yamaha Motors
. SPRING, THROTTLE STOP36L-E4133-00
Required: 1
. SPRING, THROTTLE STOP
Price unavailable
. SCREW, THROTTLE
25
Yamaha Motors
. SCREW, THROTTLE36L-E4122-00
Required: 1
. SCREW, THROTTLE
Price unavailable
. SCREW, AIR ADJUSTING
26
Yamaha Motors
. SCREW, AIR ADJUSTING36L-E4123-00
Required: 1
. SCREW, AIR ADJUSTING
Price unavailable
. O-RING
27
Yamaha Motors
. O-RING36L-E4147-10
Required: 1
. O-RING
Price unavailable
. NUT, CABLE ADJUSTING
28
Yamaha Motors
. NUT, CABLE ADJUSTING36L-E4161-00
Required: 1
. NUT, CABLE ADJUSTING
Price unavailable
. SCREW, CABLE ADJUSTING
29
Yamaha Motors
. SCREW, CABLE ADJUSTING36L-E4124-00
Required: 1
. SCREW, CABLE ADJUSTING
Price unavailable
. O-RING
30
Yamaha Motors
. O-RING36L-E4147-00
Required: 2
. O-RING
Price unavailable
. CLIP
31
Yamaha Motors
. CLIP36L-E4137-00
Required: 1
. CLIP
Price unavailable
. SEAT, SPRING
32
Yamaha Motors
. SEAT, SPRING36L-E4136-00
Required: 1
. SEAT, SPRING
Price unavailable
. MIXING ASSY 2
33
Yamaha Motors
. MIXING ASSY 236L-E4120-00
Required: 1
. MIXING ASSY 2
Price unavailable
. BODY, FLOAT CHAMBER 1
34
Yamaha Motors
. BODY, FLOAT CHAMBER 136L-E4181-00
Required: 1
. BODY, FLOAT CHAMBER 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
