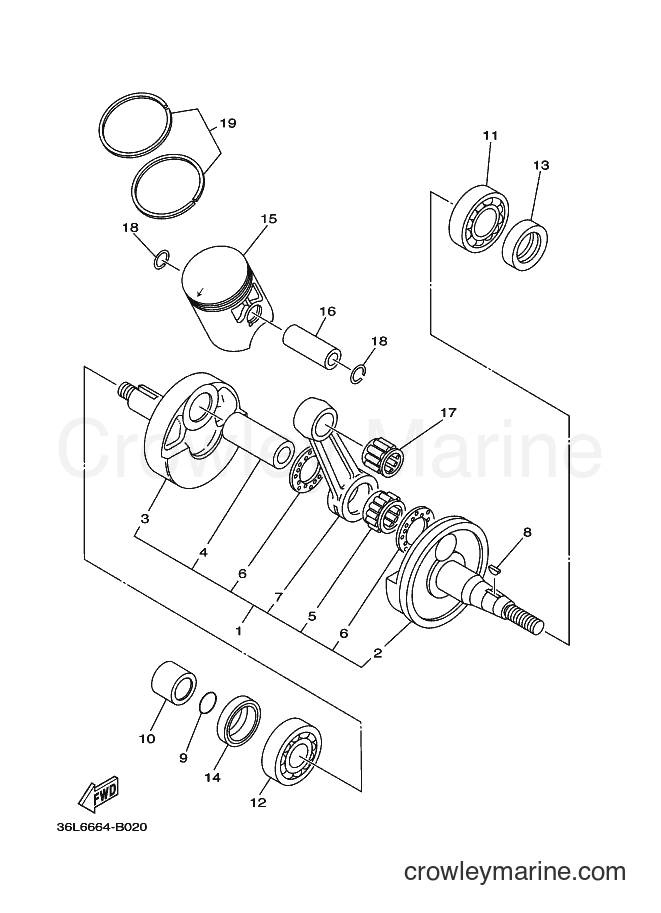

2003 Street Bike RX100T - RX100T (36L6) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX100T (36L6) [010] - CRANKSHAFT & PISTON
Change View:
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSY36L-E1400-00
Required: 1
CRANKSHAFT ASSY
Price unavailable
. CRANK 1
2
Yamaha Motors
. CRANK 136L-E1412-00
Required: 1
. CRANK 1
Price unavailable
. CRANK 2
3
Yamaha Motors
. CRANK 236L-E1422-00
Required: 1
. CRANK 2
Price unavailable
. PIN, CRANK 1
4
Yamaha Motors
. PIN, CRANK 136L-E1681-00
Required: 1
. PIN, CRANK 1
Price unavailable
. BEARING
5
Yamaha Motors
. BEARING93310-422Y1
Required: 1
. BEARING
Price unavailable
-10%
Special Shape Washer
6
Yamaha Motors
Special Shape Washer90209-22071-00
Required: 2
. WASHER
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
. ROD, CONNECTING
7
Yamaha Motors
. ROD, CONNECTING36L-E1651-00
Required: 1
. ROD, CONNECTING
Price unavailable
-10%
Woodruff Key
8
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
O-Ring
9
Yamaha Motors
O-Ring93210-180A6-00
Required: 1
O-RING
Supersedes: 93210-18023-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
COLLAR
10
Yamaha Motors
COLLAR90387-205E9-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
BEARING
11
Yamaha Motors
BEARING93306-205X9
Required: 1
BEARING
Price unavailable
BEARING
12
Yamaha Motors
BEARING93306-304X4
Required: 1
BEARING
Price unavailable
OIL SEAL
13
Yamaha Motors
OIL SEAL93102-25807
Required: 1
OIL SEAL
Price unavailable
OIL SEAL
14
Yamaha Motors
OIL SEAL93103-28800
Required: 1
OIL SEAL
Price unavailable
PISTON (STD)
15
Yamaha Motors
PISTON (STD)36L-E1631-01
Required: 1
PISTON (STD)
Price unavailable
PISTON (0.75MM O/S)
15
Yamaha Motors
PISTON (0.75MM O/S)36L-E1637-00
Required: 1
PISTON (0.75MM O/S)
Price unavailable
PISTON (1.00MM O/S)
15
Yamaha Motors
PISTON (1.00MM O/S)36L-E1638-00
Required: 1
PISTON (1.00MM O/S)
Price unavailable
PISTON (0.25MM O/S)
15
Yamaha Motors
PISTON (0.25MM O/S)36L-E1635-00
Required: 1
PISTON (0.25MM O/S)
Price unavailable
PISTON (0.50MM O/S)
15
Yamaha Motors
PISTON (0.50MM O/S)36L-E1636-00
Required: 1
PISTON (0.50MM O/S)
Price unavailable
PIN, PISTON
16
Yamaha Motors
PIN, PISTON36L-E1633-00
Required: 1
PIN, PISTON
Price unavailable
BEARING
17
Yamaha Motors
BEARING93310-214Y2
Required: 1
BEARING
Price unavailable
Inner Circle Clip
18
Yamaha Motors
Inner Circle Clip93450-15090-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$0.91
More details
PISTON RING SET (0.25MM O/S)
19
Yamaha Motors
PISTON RING SET (0.25MM O/S)36L-E1604-00
Required: 1
PISTON RING SET (0.25MM O/S)
Price unavailable
PISTON RING SET (1.00MM O/S)
19
Yamaha Motors
PISTON RING SET (1.00MM O/S)36E-E1607-00
Required: 1
PISTON RING SET (1.00MM O/S)
Price unavailable
PISTON RING SET (0.75MM O/S)
19
Yamaha Motors
PISTON RING SET (0.75MM O/S)36L-E1606-00
Required: 1
PISTON RING SET (0.75MM O/S)
Price unavailable
PISTON RING SET (STD)
19
Yamaha Motors
PISTON RING SET (STD)36L-E1603-00
Required: 1
PISTON RING SET (STD)
Price unavailable
PISTON RING SET (0.50MM O/S)
19
Yamaha Motors
PISTON RING SET (0.50MM O/S)36L-E1605-00
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
