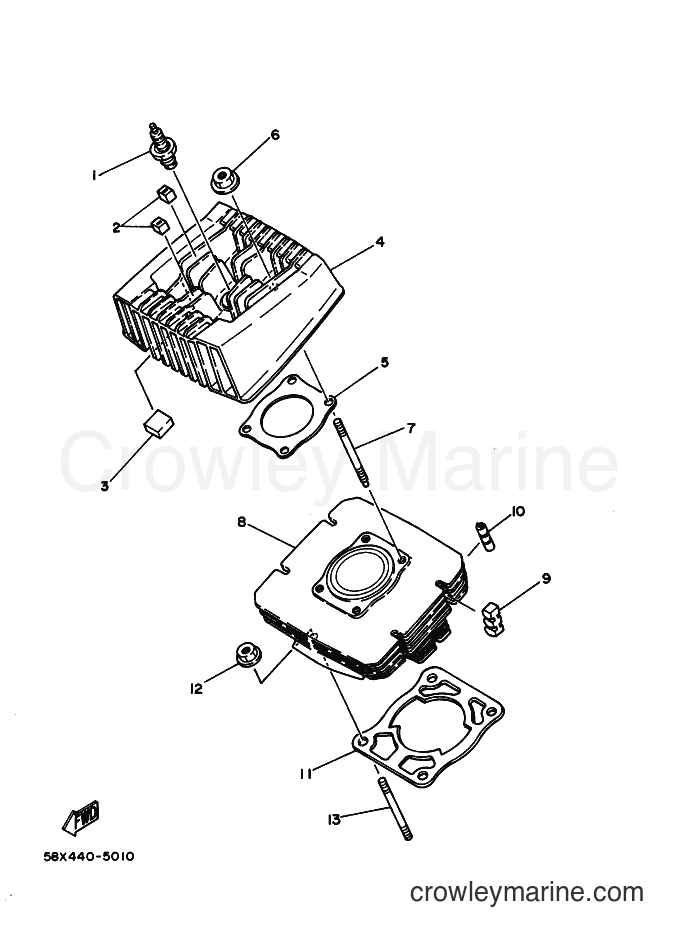

2003 Street Bike RX100T - RX100T (36L6) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX100T (36L6) [010] - CYLINDER
Change View:
PLUG, SPARK (NGK BP7HS)
1
Yamaha Motors
PLUG, SPARK (NGK BP7HS)94700-00812
Required: 1
PLUG, SPARK (NGK BP7HS)
Price unavailable
ABSORBER 3
2
Yamaha Motors
ABSORBER 336L-E1127-00
Required: 6
ABSORBER 3
Price unavailable
ABSORBER 4
3
Yamaha Motors
ABSORBER 436L-E1128-00
Required: 2
ABSORBER 4
Price unavailable
HEAD, CYLINDER 1
4
Yamaha Motors
HEAD, CYLINDER 136L-E1111-00
Required: 1
HEAD, CYLINDER 1
Price unavailable
GASKET, CYLINDER HEAD 1
5
Yamaha Motors
GASKET, CYLINDER HEAD 136L-E1181-00
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
NUT
6
Yamaha Motors
NUT90179-08823
Required: 4
NUT
Price unavailable
-10%
Stud Bolt
7
Yamaha Motors
Stud Bolt90116-08393-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$4.45
$4.00
You save $0.45
More details
CYLINDER 1
8
Yamaha Motors
CYLINDER 136L-E1311-10
Required: 1
CYLINDER 1
Price unavailable
ABSORBER 1
9
Yamaha Motors
ABSORBER 136L-E1161-00
Required: 4
ABSORBER 1
Price unavailable
ABSORBER 2
10
Yamaha Motors
ABSORBER 236L-E1162-00
Required: 4
ABSORBER 2
Price unavailable
GASKET, CYLINDER
11
Yamaha Motors
GASKET, CYLINDER36L-E1351-00
Required: 1
GASKET, CYLINDER
Price unavailable
NUT
12
Yamaha Motors
NUT90179-10812
Required: 4
NUT
Price unavailable
-10%
Stud Bolt
13
Yamaha Motors
Stud Bolt90116-10278-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$4.80
$4.32
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
