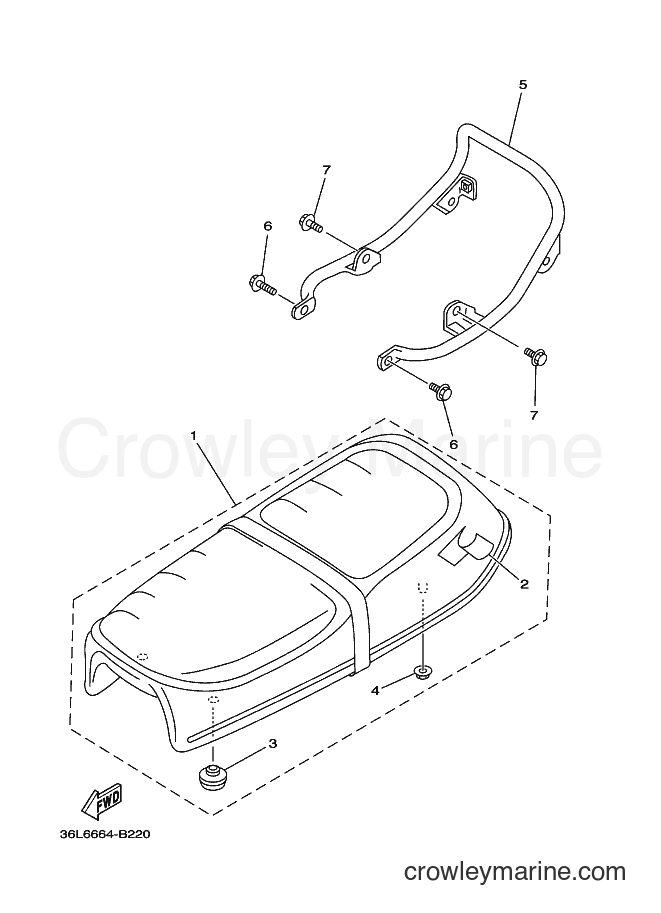

2003 Street Bike RX100T - RX100T (36L6) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX100T (36L6) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY36L-F4730-10
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT36L-F4731-00
Required: 1
. COVER, SEAT
Price unavailable
. PAD, SEAT
3
Yamaha Motors
. PAD, SEAT36L-F4741-00
Required: 4
. PAD, SEAT
Price unavailable
. NUT, FLANGE
4
Yamaha Motors
. NUT, FLANGE9570N-08500
Required: 2
. NUT, FLANGE
Price unavailable
ASSIST, GRIP
5
Yamaha Motors
ASSIST, GRIP36L-F474A-00
Required: 1
ASSIST, GRIP
Price unavailable
BOLT, FLANGE
6
Yamaha Motors
BOLT, FLANGE9580N-06016
Required: 2
BOLT, FLANGE
Price unavailable
BOLT, FLANGE
7
Yamaha Motors
BOLT, FLANGE9580N-08012
Required: 2
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
