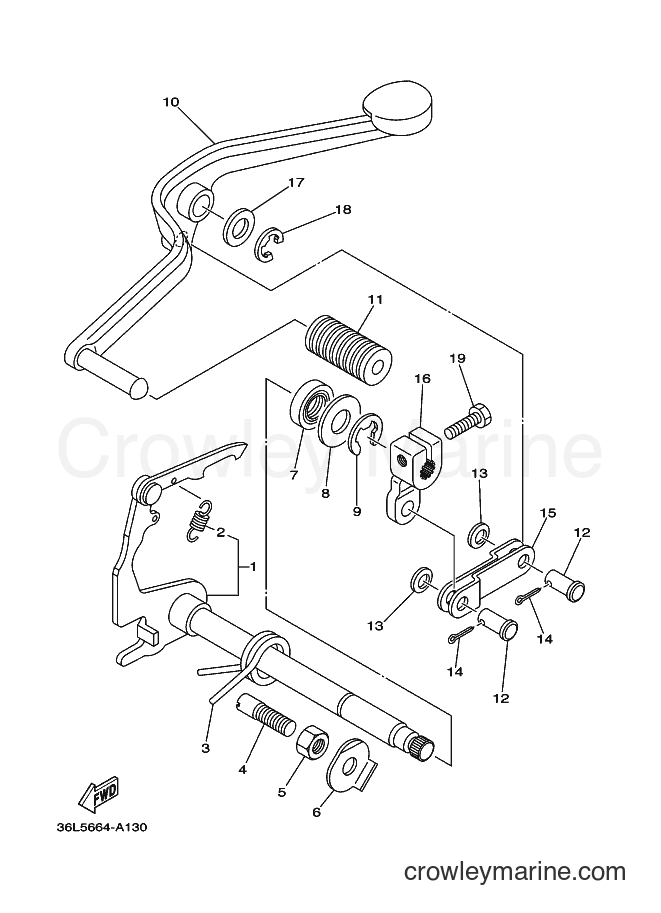

2003 Street Bike RX100T - RX100T (36L6) [010] SHIFT SHAFT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX100T (36L6) [010] - SHIFT SHAFT
Change View:
SHIFT SHAFT ASSY
1
Yamaha Motors
SHIFT SHAFT ASSY36L-E8101-00
Required: 1
SHIFT SHAFT ASSY
Price unavailable
. SPRING, TENSION
2
Yamaha Motors
. SPRING, TENSION90506-08818
Required: 1
. SPRING, TENSION
Price unavailable
SPRING, TORSION
3
Yamaha Motors
SPRING, TORSION90508-32811
Required: 1
SPRING, TORSION
Price unavailable
-10%
SPECIAL SHAPE SCREW
4
Yamaha Motors
SPECIAL SHAPE SCREW90149-08094-00
Required: 1
SCREW
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Hexagon Nut
5
Yamaha Motors
Hexagon Nut90170-08193-00
Required: 1
NUT
Supersedes: 90170-08029-00
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
-10%
LOCK WASHER
6
Yamaha Motors
LOCK WASHER90215-08014-00
Required: 1
WASHER, LOCK
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
OIL SEAL
7
Yamaha Motors
OIL SEAL93109-14803
Required: 1
OIL SEAL
Price unavailable
-10%
Plate Washer
8
Yamaha Motors
Plate Washer90201-14220-00
Required: 1
WASHER, PLATE
Supersedes: 90201-14586-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
CIRCLIP
9
Yamaha Motors
CIRCLIP93430-12812
Required: 1
CIRCLIP
Price unavailable
PEDAL, SHIFT
10
Yamaha Motors
PEDAL, SHIFT36L-E8111-00
Required: 1
PEDAL, SHIFT
Price unavailable
COVER, SHIFT PEDAL
11
Yamaha Motors
COVER, SHIFT PEDAL36L-E8113-00
Required: 1
COVER, SHIFT PEDAL
Price unavailable
PIN, CLEVIS
12
Yamaha Motors
PIN, CLEVIS90240-08053
Required: 2
PIN, CLEVIS
Price unavailable
-10%
Plate Washer
13
Yamaha Motors
Plate Washer90201-08085-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Cotter Pin
14
Yamaha Motors
Cotter Pin91490-16020-00
Required: 2
PIN, COTTER
Supersedes: 91401-16012-00
Cross Ship
Leaves in 2-5 days
$6.99
$6.29
You save $0.70
More details
ROD, SHIFT
15
Yamaha Motors
ROD, SHIFT36L-E8115-00
Required: 1
ROD, SHIFT
Price unavailable
ARM, SHIFT
16
Yamaha Motors
ARM, SHIFT36L-E8112-00
Required: 1
ARM, SHIFT
Price unavailable
WASHER, PLATE
17
Yamaha Motors
WASHER, PLATE90201-122H2
Required: 1
WASHER, PLATE
Price unavailable
CIRCLIP
18
Yamaha Motors
CIRCLIP93430-10811
Required: 1
CIRCLIP
Price unavailable
BOLT
19
Yamaha Motors
BOLT9702N-06022
Required: 1
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
