2003 Street Bike RX100T - RX100T (36L6) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

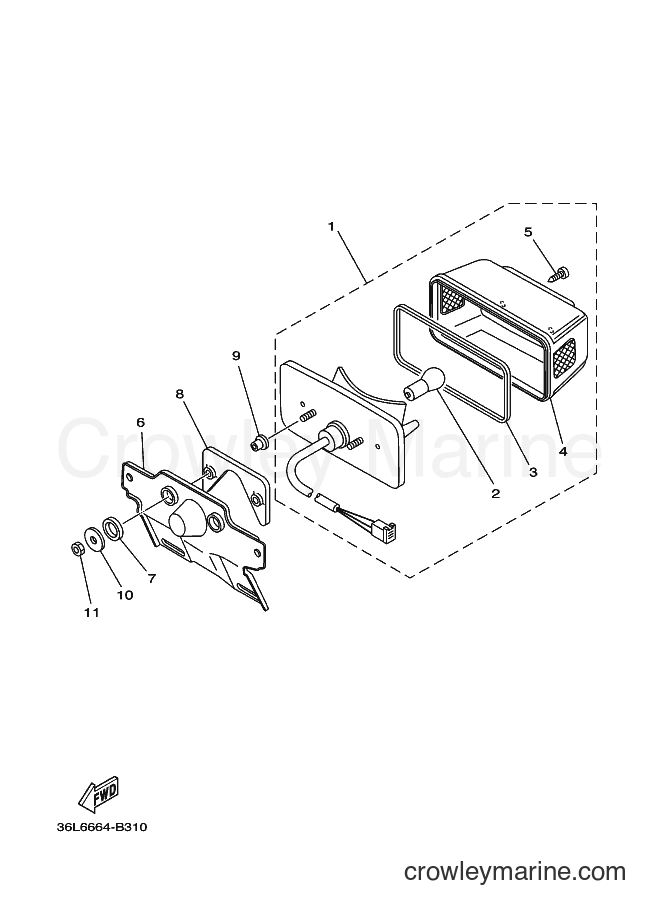

Yamaha Motors RX100T (36L6) [010] - TAILLIGHT

Change View:

Yamaha Motors

TAILLIGHT UNIT ASSY36L-H4510-V0

Required: 1

TAILLIGHT UNIT ASSY

Price unavailable

Yamaha Motors

. BULB (6V-17/5.3W)36L-H4514-V0

Required: 1

. BULB (6V-17/5.3W)

Price unavailable

Yamaha Motors

. GASKET, LENS36L-H4523-V0

Required: 1

. GASKET, LENS

Price unavailable

Yamaha Motors

. LENS, TAILLIGHT36L-H4521-V0

Required: 1

. LENS, TAILLIGHT

Price unavailable

Yamaha Motors

. SCREW, TAPPING9770N-06020

Required: 2

. SCREW, TAPPING

Price unavailable

Yamaha Motors

BRACKET, LICENCE36L-H4551-V0

Required: 1

BRACKET, LICENCE

Price unavailable

Yamaha Motors

DAMPER36L-H4553-V0

Required: 2

DAMPER

Price unavailable

Yamaha Motors

SEAT, BASE36L-H4542-V0

Required: 1

SEAT, BASE

Price unavailable

Yamaha Motors

COLLAR36L-H4557-V0

Required: 2

COLLAR

Price unavailable

-10%

Yamaha Motors

Plate Washer90201-06057-00

Required: 2

WASHER, PLATE

Supersedes: 90201-06059-00

~~$6.49~~

$5.84

You save $0.65

-10%

NUT

Supersedes: 9530N-06600-00

~~$3.85~~

$3.46

You save $0.38

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
