2003 Street Bike RX100T - RX100T (36L6) [010] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

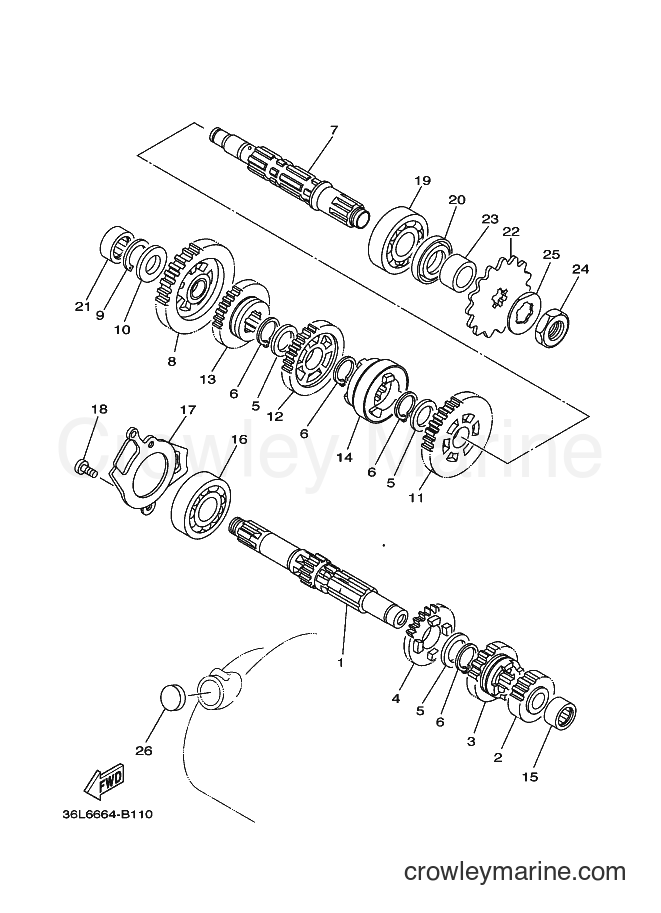

Yamaha Motors RX100T (36L6) [010] - TRANSMISSION
Change View:
AXLE, MAIN (11T)
1
Yamaha Motors
AXLE, MAIN (11T)36L-E7411-00
Required: 1
AXLE, MAIN (11T)
Price unavailable
GEAR, 2ND PINION (15T)
2
Yamaha Motors
GEAR, 2ND PINION (15T)36L-E7121-00
Required: 1
GEAR, 2ND PINION (15T)
Price unavailable
GEAR, 3RD PINION (19T)
3
Yamaha Motors
GEAR, 3RD PINION (19T)36L-E7131-00
Required: 1
GEAR, 3RD PINION (19T)
Price unavailable
GEAR, 4TH PINION (23T)
4
Yamaha Motors
GEAR, 4TH PINION (23T)36L-E7141-00
Required: 1
GEAR, 4TH PINION (23T)
Price unavailable
-10%
Plate Washer
5
Yamaha Motors
Plate Washer90201-20266-00
Required: 3
WASHER, PLATE (T=1.0)
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
S -type Circlip
6
Yamaha Motors
S -type Circlip93410-20038-00
Required: 4
CIRCLIP
Supersedes: 93410-20809-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.65
You save $0.40
More details
AXLE, DRIVE
7
Yamaha Motors
AXLE, DRIVE36L-E7421-00
Required: 1
AXLE, DRIVE
Price unavailable
GEAR, 1ST WHEEL (35T)
8
Yamaha Motors
GEAR, 1ST WHEEL (35T)36L-E7211-01
Required: 1
GEAR, 1ST WHEEL (35T)
Price unavailable
-10%
Circlip (Outer)
9
Yamaha Motors
Circlip (Outer)93440-15012-00
Required: 1
CIRCLIP
Supersedes: 93440-15802-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
WASHER, PLATE
10
Yamaha Motors
WASHER, PLATE90201-15828
Required: 1
WASHER, PLATE
Price unavailable
GEAR, 2ND WHEEL (30T)
11
Yamaha Motors
GEAR, 2ND WHEEL (30T)36L-E7221-00
Required: 1
GEAR, 2ND WHEEL (30T)
Price unavailable
GEAR, 3RD WHEEL (26T)
12
Yamaha Motors
GEAR, 3RD WHEEL (26T)36L-E7231-00
Required: 1
GEAR, 3RD WHEEL (26T)
Price unavailable
GEAR, 4TH WHEEL (23T)
13
Yamaha Motors
GEAR, 4TH WHEEL (23T)36L-E7241-00
Required: 1
GEAR, 4TH WHEEL (23T)
Price unavailable
CLUTCH, DOG
14
Yamaha Motors
CLUTCH, DOG36L-E7285-00
Required: 1
CLUTCH, DOG
Price unavailable
BEARING
15
Yamaha Motors
BEARING93311-315Y0
Required: 1
BEARING
Price unavailable
BEARING
16
Yamaha Motors
BEARING93306-303Y1
Required: 1
BEARING
Price unavailable
PLATE, COVER
17
Yamaha Motors
PLATE, COVER36L-E7471-00
Required: 1
PLATE, COVER
Price unavailable
SCREW, PAN HEAD
18
Yamaha Motors
SCREW, PAN HEAD9850N-06012
Required: 2
SCREW, PAN HEAD
Price unavailable
BEARING
19
Yamaha Motors
BEARING93306-304Y1
Required: 1
BEARING
Price unavailable
OIL SEAL
20
Yamaha Motors
OIL SEAL93102-26805
Required: 1
OIL SEAL
Price unavailable
BEARING
21
Yamaha Motors
BEARING93311-315Y0
Required: 1
BEARING
Price unavailable
SPROCKET, DRIVE (15T)
22
Yamaha Motors
SPROCKET, DRIVE (15T)36L-E7461-50
Required: 1
SPROCKET, DRIVE (15T)
Price unavailable
-10%
COLLAR
23
Yamaha Motors
COLLAR90387-20491-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$17.49
$15.74
You save $1.75
More details
-10%
SPECIAL SHAPE NUT
24
Yamaha Motors
SPECIAL SHAPE NUT90179-16226-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
LOCK WASHER
25
Yamaha Motors
LOCK WASHER90215-16127-00
Required: 1
WASHER, LOCK
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
PLUG
26
Yamaha Motors
PLUG90338-19802
Required: 1
PLUG
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
