2003 Street Bike V110E - V110E (4WHA) [010] FRONT WHEEL FOR SPOKE WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

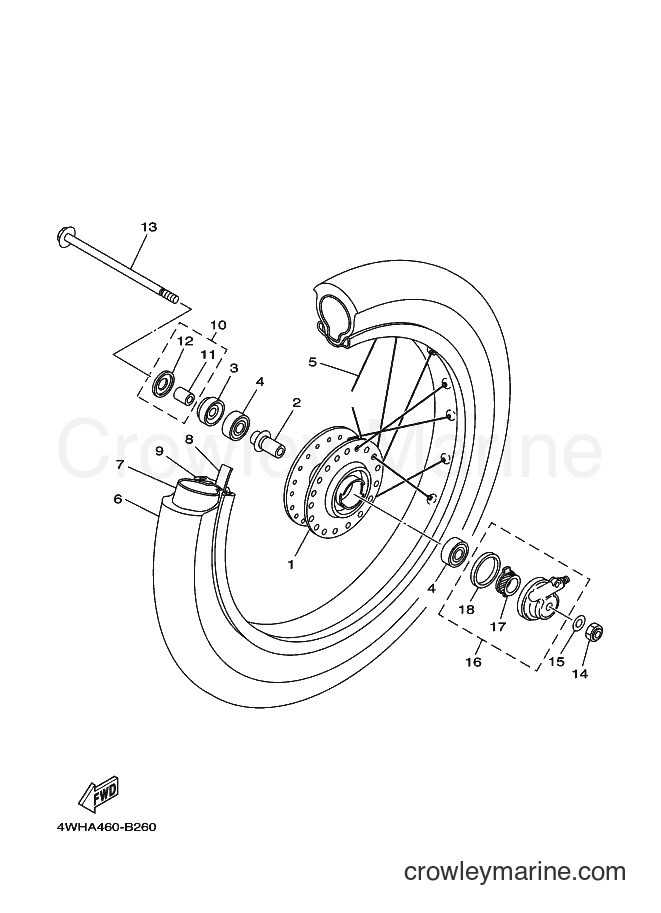

Yamaha Motors V110E (4WHA) [010] - FRONT WHEEL FOR SPOKE WHEEL
Change View:
HUB, FRONT
1
Yamaha Motors
HUB, FRONT4NS-F5111-00-33
Required: 1
HUB, FRONT
Price unavailable
FLANGE, SPACER 2
2
Yamaha Motors
FLANGE, SPACER 24ST-F5116-01
Required: 1
FLANGE, SPACER 2
Price unavailable
OIL SEAL
3
Yamaha Motors
OIL SEAL93106-20816
Required: 1
OIL SEAL
Price unavailable
BEARING
4
Yamaha Motors
BEARING93306-300Y6
Required: 2
BEARING
Price unavailable
SPOKE SET, FRONT
5
Yamaha Motors
SPOKE SET, FRONT4NS-F5104-00
Required: 1
SPOKE SET, FRONT
Price unavailable
TIRE (2.50-17)
6
Yamaha Motors
TIRE (2.50-17)94125-17801
Required: 1
TIRE (2.50-17)
Price unavailable
TUBE (2.25-17 TR4)
7
Yamaha Motors
TUBE (2.25-17 TR4)94222-17800
Required: 1
TUBE (2.25-17 TR4)
Price unavailable
BAND, RIM (1.40-17)
8
Yamaha Motors
BAND, RIM (1.40-17)94322-17800
Required: 1
BAND, RIM (1.40-17)
Price unavailable
RIM (1.40-17)
9
Yamaha Motors
RIM (1.40-17)94414-17888
Required: 1
RIM (1.40-17)
Price unavailable
COLLAR, WHEEL
10
Yamaha Motors
COLLAR, WHEEL4ST-F5183-00
Required: 1
COLLAR, WHEEL
Price unavailable
. COVER, HUB DUST
11
Yamaha Motors
. COVER, HUB DUST4ST-F5118-00
Required: 1
. COVER, HUB DUST
Price unavailable
-10%
517 F. WHEEL COLLAR
12
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
. COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
AXLE, WHEEL
13
Yamaha Motors
AXLE, WHEEL3AY-F5181-01
Required: 1
AXLE, WHEEL
Price unavailable
-10%
Self-Locking Nut
14
Yamaha Motors
Self-Locking Nut90185-10091-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Plain Washer
15
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
GEAR UNIT ASSY
16
Yamaha Motors
GEAR UNIT ASSY3PP-25190-04
Required: 1
GEAR UNIT ASSY
Price unavailable
. GEAR, DRIVE
17
Yamaha Motors
. GEAR, DRIVE3PP-25135-00
Required: 1
. GEAR, DRIVE
Price unavailable
. O-RING
18
Yamaha Motors
. O-RING93109-40012
Required: 1
. O-RING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
