2004 Street Bike BT1100 - BT1100 (5JN3) [070] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

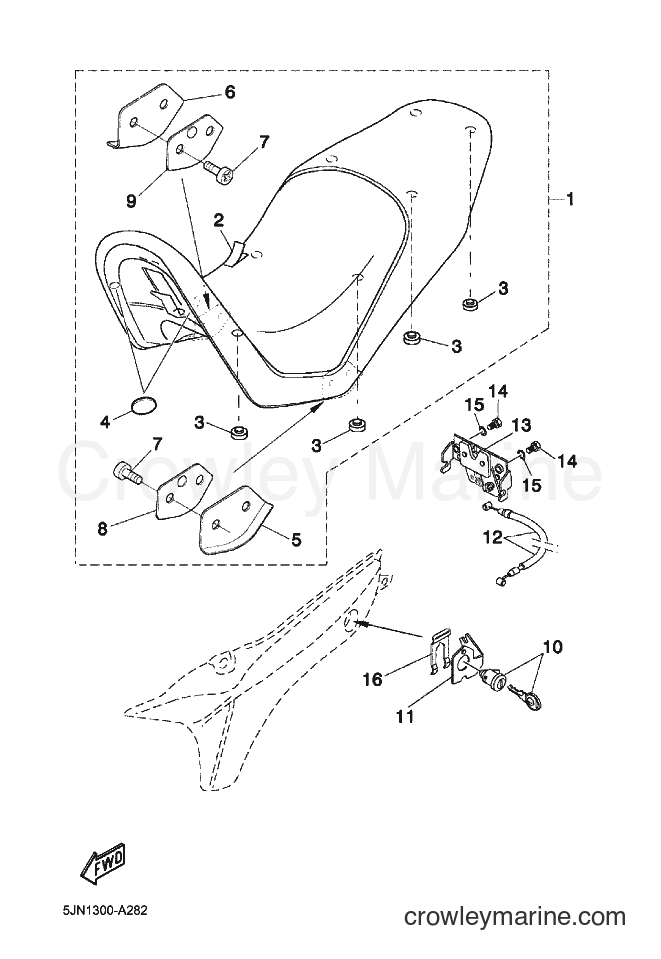

Yamaha Motors BT1100 (5JN3) [070] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY5JN-F4730-02
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. SEAT COVER COMP.
2
Yamaha Motors
. SEAT COVER COMP.5JN-F470F-00
Required: 1
. SEAT COVER COMP.
Price unavailable
. PAD, SEAT
3
Yamaha Motors
. PAD, SEAT4DL-F4741-00
Required: 8
. PAD, SEAT
Price unavailable
. DAMPER, SEAT
4
Yamaha Motors
. DAMPER, SEAT5JN-F4737-00
Required: 2
. DAMPER, SEAT
Price unavailable
. PROTECTOR,1
5
Yamaha Motors
. PROTECTOR,15JN-F476U-00
Required: 1
. PROTECTOR,1
Price unavailable
. PROTECTOR,2
6
Yamaha Motors
. PROTECTOR,25JN-F476V-00
Required: 1
. PROTECTOR,2
Price unavailable
. SCREW, SPECIAL
7
Yamaha Motors
. SCREW, SPECIAL5JN-F8382-00
Required: 4
. SCREW, SPECIAL
Price unavailable
. PLATE, SLIDE
8
Yamaha Motors
. PLATE, SLIDE5JN-F4663-00
Required: 1
. PLATE, SLIDE
Price unavailable
. PLATE, SLIDE
9
Yamaha Motors
. PLATE, SLIDE5JN-F4663-10
Required: 1
. PLATE, SLIDE
Price unavailable
SEAT LOCK ASSY
10
Yamaha Motors
SEAT LOCK ASSY5JN-F4705-00
Required: 1
SEAT LOCK ASSY
Price unavailable
PLATE
11
Yamaha Motors
PLATE5JN-F4792-00
Required: 1
PLATE
Price unavailable
CABLE, SEAT LOCK
12
Yamaha Motors
CABLE, SEAT LOCK5JN-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
ROTOR ASSY
13
Yamaha Motors
ROTOR ASSY5JN-F4799-00
Required: 1
ROTOR ASSY
Price unavailable
BOLT, FLANGE
14
Yamaha Motors
BOLT, FLANGE9581M-06012
Required: 2
BOLT, FLANGE
Price unavailable
WASHER, TOOTH
15
Yamaha Motors
WASHER, TOOTH90205-06803
Required: 2
WASHER, TOOTH
Price unavailable
SPRING, TORSION
16
Yamaha Motors
SPRING, TORSION5JN-F478V-00
Required: 1
SPRING, TORSION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
