2004 Street Bike BT1100 - BT1100 (5JN3) [060] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

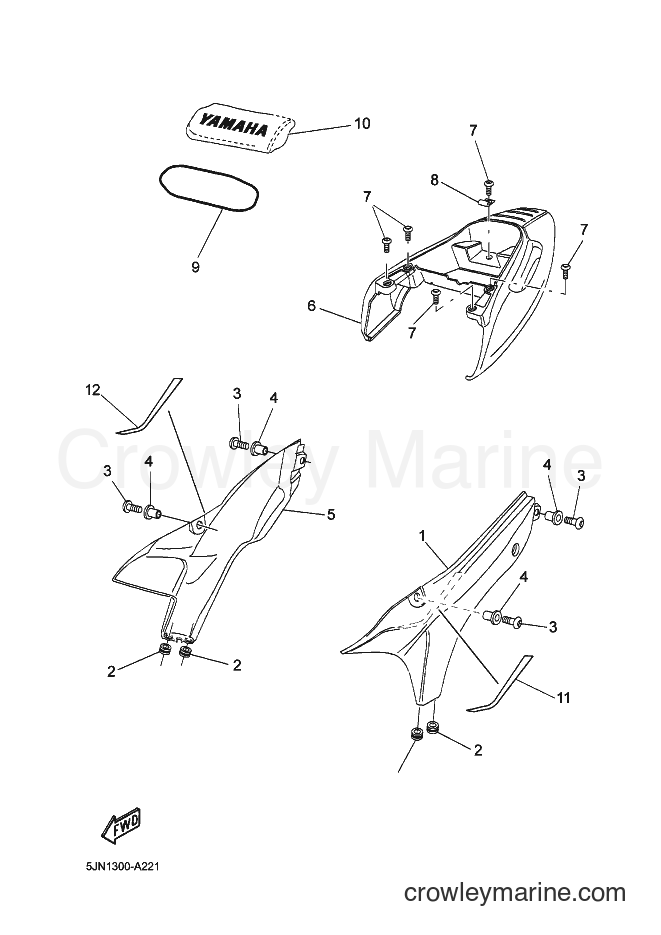

Yamaha Motors BT1100 (5JN3) [060] - SIDE COVER
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 15JN-F1711-00-P0
Required: 1
COVER, SIDE 1
Price unavailable
GROMMET
2
Yamaha Motors
GROMMET90480-12851
Required: 4
GROMMET
Price unavailable
-10%
Bind Screw
3
Yamaha Motors
Bind Screw98907-06012-00
Required: 4
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
COLLAR
4
Yamaha Motors
COLLAR90387-062M9-00
Required: 4
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
COVER, SIDE 2
5
Yamaha Motors
COVER, SIDE 25JN-F1721-00-P0
Required: 1
COVER, SIDE 2
Price unavailable
COVER, REAR FENDER
6
Yamaha Motors
COVER, REAR FENDER5JN-F1651-00
Required: 1
COVER, REAR FENDER
Price unavailable
BOLT, BUTTON HEAD
7
Yamaha Motors
BOLT, BUTTON HEAD9201N-08020
Required: 5
BOLT, BUTTON HEAD
Price unavailable
HOOK
8
Yamaha Motors
HOOK5JN-F814E-00
Required: 1
HOOK
Price unavailable
-10%
O-Ring
9
Yamaha Motors
O-Ring93210-87723-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
TOOL KIT
10
Yamaha Motors
TOOL KIT5JN-F8100-00
Required: 1
TOOL KIT
Price unavailable
TAPE 1
11
Yamaha Motors
TAPE 15JN-F173T-00
Required: 1
TAPE 1
Price unavailable
TAPE 2
12
Yamaha Motors
TAPE 25JN-F173U-00
Required: 1
TAPE 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
