2004 Street Bike RX-K - RX-K (3KAF) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

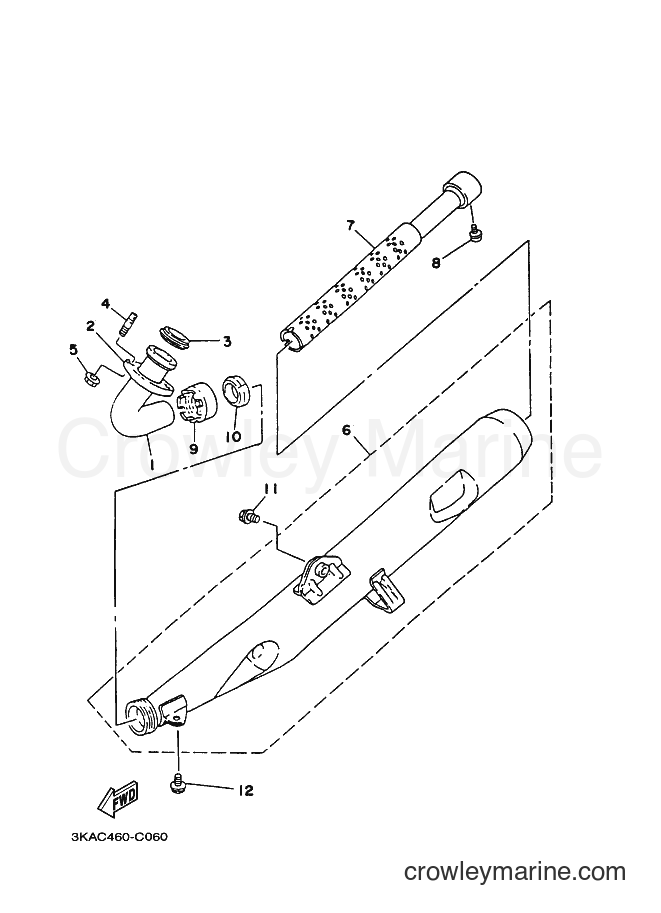

Yamaha Motors RX-K (3KAF) [010] - EXHAUST
Change View:
PIPE, EXHAUST 1
1
Yamaha Motors
PIPE, EXHAUST 14X8-E4611-01-93
Required: 1
PIPE, EXHAUST 1
Price unavailable
NUT, RING
2
Yamaha Motors
NUT, RING3KA-E4612-00
Required: 1
NUT, RING
Price unavailable
GASKET, EXHAUST PIPE
3
Yamaha Motors
GASKET, EXHAUST PIPE3KA-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
-10%
Stud Bolt
4
Yamaha Motors
Stud Bolt90116-08408-00
Required: 2
BOLT, STUD
Supersedes: 90116-08166-00
Cross Ship
Leaves in 2-5 days
$19.49
$17.54
You save $1.95
More details
-15%
Flange Nut
5
Yamaha Motors
Flange Nut95707-08500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
MUFFLER 1
6
Yamaha Motors
MUFFLER 129N-E4711-00-93
Required: 1
MUFFLER 1
Price unavailable
SILENCER, EXHAUST
7
Yamaha Motors
SILENCER, EXHAUST4X8-E4753-00
Required: 1
SILENCER, EXHAUST
Price unavailable
SCREW,WITH WASHER
8
Yamaha Motors
SCREW,WITH WASHER97607-06112
Required: 1
SCREW,WITH WASHER
Price unavailable
NUT, MUFFLER JOINT
9
Yamaha Motors
NUT, MUFFLER JOINT360-E4713-00
Required: 1
NUT, MUFFLER JOINT
Price unavailable
GASKET, MUFFLER
10
Yamaha Motors
GASKET, MUFFLER3KA-E4714-00
Required: 1
GASKET, MUFFLER
Price unavailable
-10%
Flange Bolt
11
Yamaha Motors
Flange Bolt95814-10025-00
Required: 1
BOLT, FLANGE
Supersedes: 95804-10025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Flange Bolt
12
Yamaha Motors
Flange Bolt95817-08016-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-08016-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
