2004 Street Bike V110E - V110E (4WHE) [010] REAR WHEEL FOR CAST WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

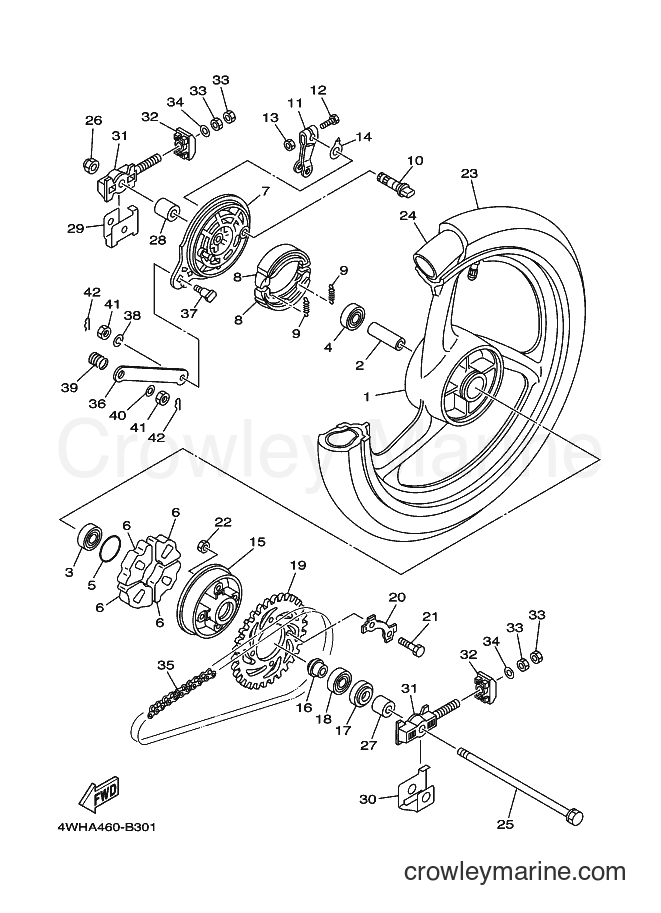

Yamaha Motors V110E (4WHE) [010] - REAR WHEEL FOR CAST WHEEL
Change View:
CAST WHEEL, REAR
1
Yamaha Motors
CAST WHEEL, REAR4WH-F5338-00-33
Required: 1
CAST WHEEL, REAR
Price unavailable
-10%
Spacer
2
Yamaha Motors
Spacer90560-12145-00
Required: 1
SPACER
Cross Ship
Leaves in 2-5 days
$22.99
$20.69
You save $2.30
More details
BEARING
3
Yamaha Motors
BEARING93306-301Y9
Required: 1
BEARING
Price unavailable
BEARING
4
Yamaha Motors
BEARING93306-301Y8
Required: 1
BEARING
Price unavailable
O-RING
5
Yamaha Motors
O-RING93210-418G7
Required: 1
O-RING
Price unavailable
DAMPER
6
Yamaha Motors
DAMPER23T-F5364-00
Required: 4
DAMPER
Price unavailable
PLATE, BRAKE SHOE
7
Yamaha Motors
PLATE, BRAKE SHOE23T-F5321-02-33
Required: 1
PLATE, BRAKE SHOE
Price unavailable
BRAKE SHOE COMP.
8
Yamaha Motors
BRAKE SHOE COMP.23T-F5330-00
Required: 2
BRAKE SHOE COMP.
Price unavailable
-10%
TENSION SPRING
9
Yamaha Motors
TENSION SPRING90506-18288-00
Required: 2
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
CAMSHAFT
10
Yamaha Motors
CAMSHAFT3Y6-F5351-00
Required: 1
CAMSHAFT
Price unavailable
LEVER, CAMSHAFT
11
Yamaha Motors
LEVER, CAMSHAFT3AY-F5355-00
Required: 1
LEVER, CAMSHAFT
Price unavailable
-10%
Bolt
12
Yamaha Motors
Bolt90101-06278-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
-10%
Nut
13
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.46
You save $0.38
More details
PLATE, INDICATOR
14
Yamaha Motors
PLATE, INDICATOR4ST-F533A-00
Required: 1
PLATE, INDICATOR
Price unavailable
CLUTCH, HUB
15
Yamaha Motors
CLUTCH, HUB3XA-F5366-00
Required: 1
CLUTCH, HUB
Price unavailable
COLLAR
16
Yamaha Motors
COLLAR90387-127Y0
Required: 1
COLLAR
Price unavailable
OIL SEAL
17
Yamaha Motors
OIL SEAL93106-30817
Required: 1
OIL SEAL
Price unavailable
BEARING
18
Yamaha Motors
BEARING93306-004X6
Required: 1
BEARING
Price unavailable
BEARING
18
Yamaha Motors
BEARING93306-004Y8
Required: 1
BEARING
Price unavailable
SPROCKET, DRIVEN (39T)
19
Yamaha Motors
SPROCKET, DRIVEN (39T)4ST-F5439-00
Required: 1
SPROCKET, DRIVEN (39T)
Price unavailable
WASHER
20
Yamaha Motors
WASHER5LM-F5412-00
Required: 2
WASHER
Price unavailable
BOLT
21
Yamaha Motors
BOLT90101-08801
Required: 4
BOLT
Price unavailable
TIRE (2.75-17)
23
Yamaha Motors
TIRE (2.75-17)94127-17800
Required: 1
TIRE (2.75-17)
Price unavailable
TUBE (2.75-17 TR4)
24
Yamaha Motors
TUBE (2.75-17 TR4)94227-17800
Required: 1
TUBE (2.75-17 TR4)
Price unavailable
AXLE, WHEEL
25
Yamaha Motors
AXLE, WHEEL3XA-F5381-01
Required: 1
AXLE, WHEEL
Price unavailable
-10%
Self-Locking Nut
26
Yamaha Motors
Self-Locking Nut90185-12134-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-12046-00
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
COLLAR
27
Yamaha Motors
COLLAR90387-127Y1
Required: 1
COLLAR
Price unavailable
COLLAR
28
Yamaha Motors
COLLAR90387-127Y6
Required: 1
COLLAR
Price unavailable
REINFORCEMENT
29
Yamaha Motors
REINFORCEMENT4US-F538H-00
Required: 1
REINFORCEMENT
Price unavailable
REINFORCEMENT
30
Yamaha Motors
REINFORCEMENT4US-F538F-00
Required: 1
REINFORCEMENT
Price unavailable
PULLER, CHAIN 1
31
Yamaha Motors
PULLER, CHAIN 13XA-F5388-00
Required: 2
PULLER, CHAIN 1
Price unavailable
PLATE 1
32
Yamaha Motors
PLATE 13RS-F539F-00
Required: 2
PLATE 1
Price unavailable
-10%
Nut
33
Yamaha Motors
Nut95337-08600-00
Required: 4
NUT
Supersedes: 95307-08600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
WASHER
34
Yamaha Motors
WASHER92907-08600-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.25
$2.93
You save $0.32
More details
CHAIN (D.I.D 428 100L)
35
Yamaha Motors
CHAIN (D.I.D 428 100L)94580-24100
Required: 1
CHAIN (D.I.D 428 100L)
Price unavailable
BAR, TENSION
36
Yamaha Motors
BAR, TENSION3AY-F5371-00
Required: 1
BAR, TENSION
Price unavailable
-10%
BOLT
37
Yamaha Motors
BOLT90109-08183-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Spring Washer
38
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
SPRING, COMPRESSION
39
Yamaha Motors
SPRING, COMPRESSION90501-205E8
Required: 1
SPRING, COMPRESSION
Price unavailable
-10%
Plate Washer
40
Yamaha Motors
Plate Washer90201-087F0-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
HEX NUT (SMALL)
41
Yamaha Motors
HEX NUT (SMALL)95317-08700-00
Required: 2
NUT
Supersedes: 95307-08700-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
