2005 Street Bike YBR125ESD - YBR125ESD (4P22) [010] COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

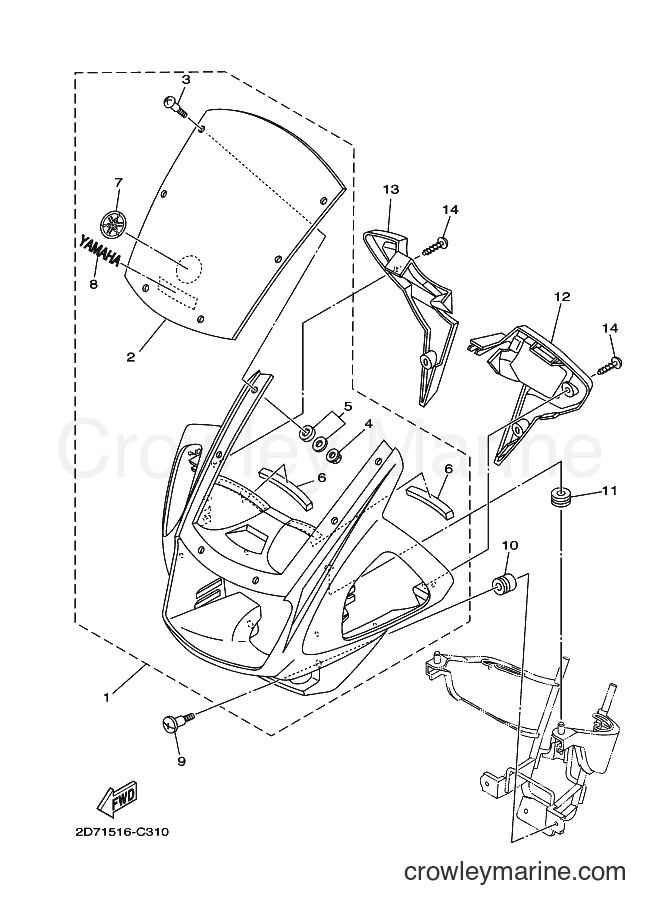

Yamaha Motors YBR125ESD (4P22) [010] - COWLING
Change View:
PANEL COMP. 1
1
Yamaha Motors
PANEL COMP. 15VL-W2835-01-P3
Required: 1
PANEL COMP. 1
Price unavailable
PANEL COMP. 1
1
Yamaha Motors
PANEL COMP. 15VL-W2835-00-P3
Required: 1
PANEL COMP. 1
Price unavailable
. WINDSHIELD
2
Yamaha Motors
. WINDSHIELD5VL-F8381-00
Required: 1
. WINDSHIELD
Price unavailable
-10%
SPECIAL SHAPE SCREW
3
Yamaha Motors
SPECIAL SHAPE SCREW90149-05273-00
Required: 6
. SCREW
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Flange Nut
4
Yamaha Motors
Flange Nut95707-05500-00
Required: 6
. NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. WASHER, SPECIAL
5
Yamaha Motors
. WASHER, SPECIAL5VL-F8215-00
Required: 6
. WASHER, SPECIAL
Price unavailable
. DAMPER 1
6
Yamaha Motors
. DAMPER 15VL-F8217-00
Required: 2
. DAMPER 1
Price unavailable
. EMBLEM
7
Yamaha Motors
. EMBLEM5VL-F8315-00
Required: 1
. EMBLEM
Price unavailable
-10%
Yamaha Emblem (4BP)
8
Yamaha Motors
Yamaha Emblem (4BP)99246-00080-00
Required: 1
. EMBLEM, YAMAHA
Supersedes: 99236-00080-00
Cross Ship
Leaves in 2-5 days
$22.99
$20.69
You save $2.30
More details
SCREW, ROUND HEAD
9
Yamaha Motors
SCREW, ROUND HEAD90150-06807
Required: 2
SCREW, ROUND HEAD
Price unavailable
GROMMET
10
Yamaha Motors
GROMMET90480-08891
Required: 2
GROMMET
Price unavailable
GROMMET
11
Yamaha Motors
GROMMET90480-13890
Required: 2
GROMMET
Price unavailable
PANEL, CONSOLE 1
12
Yamaha Motors
PANEL, CONSOLE 15VL-F837L-01
Required: 1
PANEL, CONSOLE 1
Price unavailable
PANEL, CONSOLE 2
13
Yamaha Motors
PANEL, CONSOLE 25VL-F837M-01
Required: 1
PANEL, CONSOLE 2
Price unavailable
SCREW, TAPPING
14
Yamaha Motors
SCREW, TAPPING9770N-50016
Required: 4
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
