2005 Street Bike YBR125ESD - YBR125ESD (4P22) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

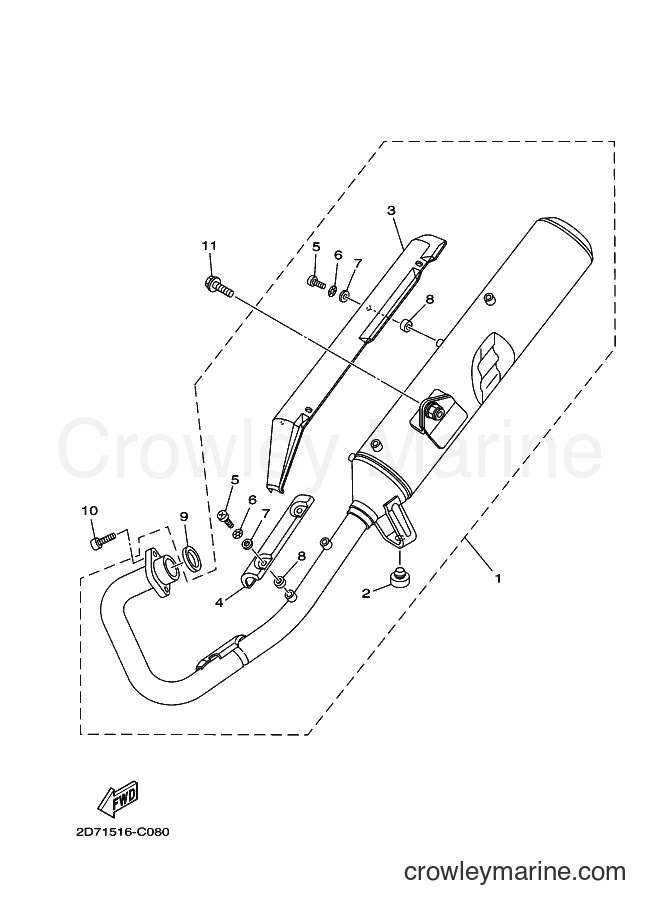

Yamaha Motors YBR125ESD (4P22) [010] - EXHAUST

Change View:

Yamaha Motors

MUFFLER ASSY 15VL-E4710-00

Required: 1

MUFFLER ASSY 1

Price unavailable

Yamaha Motors

. PAD, SEAT4TU-F4741-00

Required: 1

. PAD, SEAT

Price unavailable

Yamaha Motors

. PROTECTER, SILENCER5VL-E4758-00

Required: 1

. PROTECTER, SILENCER

Price unavailable

Yamaha Motors

. PROTECTOR, EXHAUST PIPE5VL-E4628-00

Required: 1

. PROTECTOR, EXHAUST PIPE

Price unavailable

-50%

Yamaha Motors

Screw (M8 X 40)98980-06012-00

Required: 6

. SCREW, BIND

In stock

Only 3 remaining

~~$9.49~~

$4.75

You save $4.75

More details

-50%

Yamaha Motors

Wave Washer90206-06090-00

Required: 6

. WASHER, WAVE

In stock

Only 3 remaining

~~$9.49~~

$4.75

You save $4.75

More details

Yamaha Motors

. WASHER, PLATE90201-05803

Required: 6

. WASHER, PLATE

Price unavailable

Yamaha Motors

. WASHER, PLATE90201-05804

Required: 6

. WASHER, PLATE

Price unavailable

Yamaha Motors

GASKET, EXHAUST PIPE5VL-E4613-00

Required: 1

GASKET, EXHAUST PIPE

Price unavailable

Yamaha Motors

BOLT9131N-06020

Required: 2

BOLT

Price unavailable

-10%

Yamaha Motors

Flange Bolt95812-08020-00

Required: 1

BOLT, FLANGE

Supersedes: 9581N-08020-00

~~$2.80~~

$2.52

You save $0.28

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
