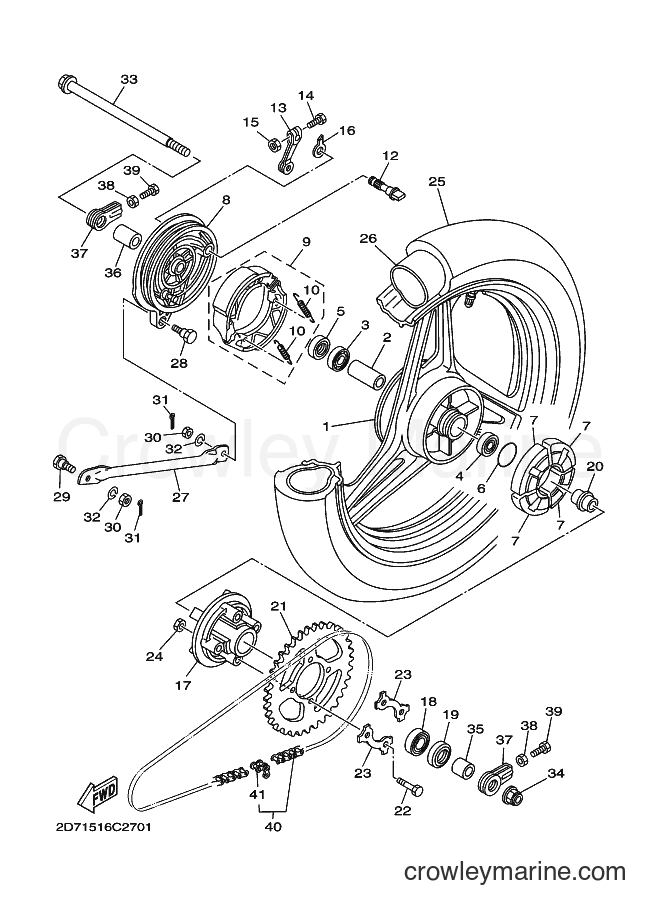

2005 Street Bike YBR125ESD - YBR125ESD (4P22) [010] REAR WHEEL diagram
![Yamaha Motors YBR125ESD (4P22) [010] - REAR WHEEL](https://cdn.crowleymarine.com/yamaha/qJdqMVrV.png)
1
Yamaha Motors
CAST WHEEL, REAR4GU-F5338-00-35
Required: 1
CAST WHEEL, REAR
Price unavailable
1
Yamaha Motors
CAST WHEEL, REAR4GU-F5338-00-33
Required: 1
CAST WHEEL, REAR
Price unavailable
-10%
$18.89
You save $2.10
3
Yamaha Motors
BEARING93306-202Y4
Required: 1
BEARING
Price unavailable
4
Yamaha Motors
BEARING93306-202Y1
Required: 1
BEARING
Price unavailable
5
Yamaha Motors
OIL SEAL93104-22805
Required: 1
OIL SEAL
Price unavailable
6
Yamaha Motors
O-RING93210-42807
Required: 1
O-RING
Price unavailable
7
Yamaha Motors
DAMPER1KL-F5364-00
Required: 4
DAMPER
Price unavailable
8
Yamaha Motors
PLATE, BRAKE SHOE5VL-F5321-00-8L
Required: 1
PLATE, BRAKE SHOE
Price unavailable
8
Yamaha Motors
PLATE, BRAKE SHOE5VL-F5321-00-33
Required: 1
PLATE, BRAKE SHOE
Price unavailable
-10%
9
Yamaha Motors
BRAKE SHOE KIT3FA-W253A-00-00
Required: 1
BRAKE SHOE KIT
$24.29
You save $2.70
-20%
10
Yamaha Motors
TENSION SPRING90506-15260-00
Required: 2
. SPRING, TENSION
Supersedes: 90506-15848-00
In stock
Only 3 remaining
$7.59
You save $1.90
12
Yamaha Motors
CAMSHAFT4GU-F5351-01
Required: 1
CAMSHAFT
Price unavailable
13
Yamaha Motors
LEVER, CAMSHAFT5VL-F5355-00
Required: 1
LEVER, CAMSHAFT
Price unavailable
14
Yamaha Motors
BOLT90101-06848
Required: 1
BOLT
Price unavailable
-10%
15
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 9530N-06600-00
$3.46
You save $0.38
16
Yamaha Motors
PLATE, INDICATOR4GU-F533A-00
Required: 1
PLATE, INDICATOR
Price unavailable
17
Yamaha Motors
CLUTCH, HUB5VL-F5366-00
Required: 1
CLUTCH, HUB
Price unavailable
18
Yamaha Motors
BEARING93306-004YL
Required: 1
BEARING
Price unavailable
19
Yamaha Motors
OIL SEAL93106-26801
Required: 1
OIL SEAL
Price unavailable
20
Yamaha Motors
AXLE, SPROCKET5VL-F5387-00
Required: 1
AXLE, SPROCKET
Price unavailable
21
Yamaha Motors
SPROCKET, DRIVEN (45T)5VL-F5445-00
Required: 1
SPROCKET, DRIVEN (45T)
Price unavailable
22
Yamaha Motors
BOLT90109-08864
Required: 4
BOLT
Price unavailable
23
Yamaha Motors
WASHER5LK-F5412-00
Required: 2
WASHER
Price unavailable
-50%
In stock
Only 4 remaining
$5.25
You save $5.25
25
Yamaha Motors
TIRE94109-18803
Required: 1
TIRE
Price unavailable
26
Yamaha Motors
TUBE (2.75-18)94227-18808
Required: 1
TUBE (2.75-18)
Price unavailable
27
Yamaha Motors
BAR, TENSION5VL-F5371-00
Required: 1
BAR, TENSION
Price unavailable
28
Yamaha Motors
BOLT90109-08847
Required: 1
BOLT
Price unavailable
29
Yamaha Motors
BOLT90109-08848
Required: 1
BOLT
Price unavailable
-10%
30
Yamaha Motors
Nut95337-08600-00
Required: 2
NUT
Supersedes: 9531L-08600-00
$8.54
You save $0.95
31
Yamaha Motors
PIN, COTTER91401-20012
Required: 2
PIN, COTTER
Price unavailable
32
Yamaha Motors
WASHER, SPRING9290N-08100
Required: 2
WASHER, SPRING
Price unavailable
33
Yamaha Motors
AXLE, WHEEL5VL-F5381-00
Required: 1
AXLE, WHEEL
Price unavailable
34
Yamaha Motors
NUT, SELF-LOCKING9560L-14200
Required: 1
NUT, SELF-LOCKING
Price unavailable
35
Yamaha Motors
COLLAR, SPROCKET AXLE5VL-F5386-00
Required: 1
COLLAR, SPROCKET AXLE
Price unavailable
36
Yamaha Motors
COLLAR, WHEEL5VL-F5377-00
Required: 1
COLLAR, WHEEL
Price unavailable
37
Yamaha Motors
PULLER, CHAIN 15VL-F5388-00
Required: 2
PULLER, CHAIN 1
Price unavailable
-10%
38
Yamaha Motors
Nut95337-08600-00
Required: 2
NUT
Supersedes: 9531L-08600-00
$8.54
You save $0.95
39
Yamaha Motors
SCREW, HEXAGON90153-08804
Required: 2
SCREW, HEXAGON
Price unavailable
40
Yamaha Motors
CHAIN (DID428 98LL)5VL-F53C0-00
Required: 1
CHAIN (DID428 98LL)
Price unavailable
41
Yamaha Motors
. JOINT, CHAIN (DID 428)94668-83001
Required: 1
. JOINT, CHAIN (DID 428)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
