2005 Street Bike YBR125ESD - YBR125ESD (4P22) [010] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

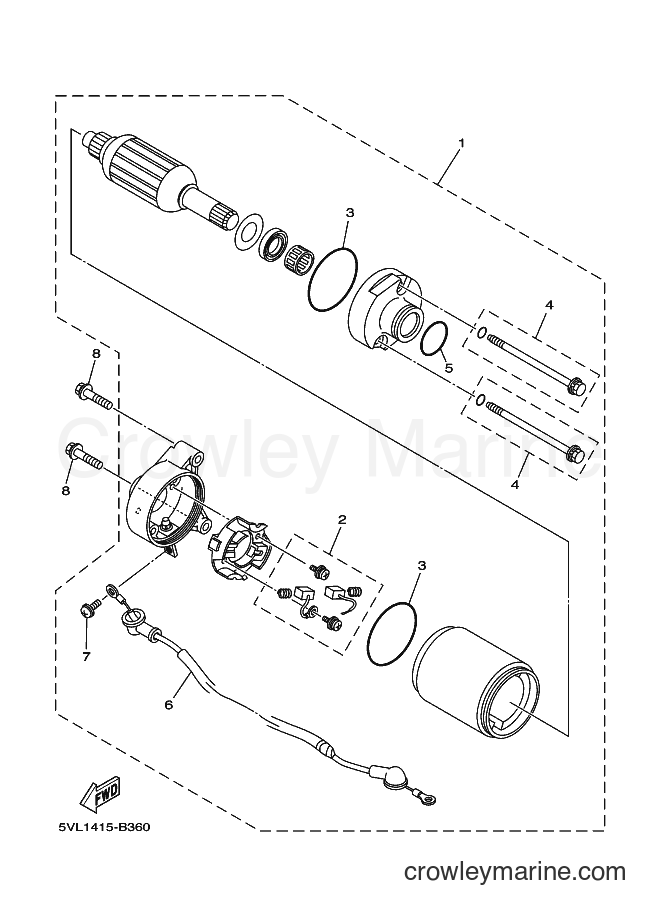

Yamaha Motors YBR125ESD (4P22) [010] - STARTING MOTOR
Change View:
STARTING MOTOR ASSY
1
Yamaha Motors
STARTING MOTOR ASSY5VL-H1800-00
Required: 1
STARTING MOTOR ASSY
Price unavailable
-10%
Brush Set
2
Yamaha Motors
Brush Set4FP-H1801-00-00
Required: 1
. BRUSH SET
Cross Ship
Leaves in 2-5 days
$34.99
$31.49
You save $3.50
More details
-10%
O-Ring
3
Yamaha Motors
O-Ring93210-55669-00
Required: 2
. O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
O-Ring
5
Yamaha Motors
O-Ring93210-25711-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
. CORD COMP.
6
Yamaha Motors
. CORD COMP.5VL-H183G-00
Required: 1
. CORD COMP.
Price unavailable
. SCREW, PAN HEAD WITH WASHER
7
Yamaha Motors
. SCREW, PAN HEAD WITH WASHER9760L-05180
Required: 1
. SCREW, PAN HEAD WITH WASHER
Price unavailable
-10%
Flange Bolt
8
Yamaha Motors
Flange Bolt9502L-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.60
$0.54
You save $0.06
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
