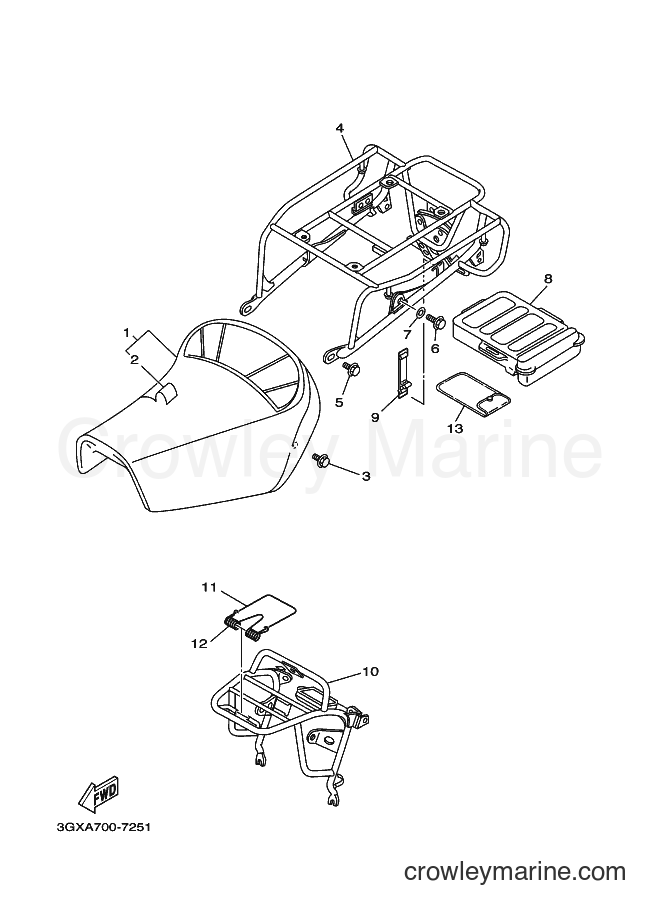

2005 Street Bike AG200F - AG200F (3GXM) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AG200F (3GXM) [010] - SEAT
Change View:
SINGLE SEAT ASSY
1
Yamaha Motors
SINGLE SEAT ASSY3GX-24710-31
Required: 1
SINGLE SEAT ASSY
Price unavailable
. COVER, SINGLE SEAT
2
Yamaha Motors
. COVER, SINGLE SEAT3GX-24711-31
Required: 1
. COVER, SINGLE SEAT
Price unavailable
-10%
Bolt With Washer
3
Yamaha Motors
Bolt With Washer90119-06063-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
CARRIER ASSY
4
Yamaha Motors
CARRIER ASSY36X-24810-00-98
Required: 1
CARRIER ASSY
Price unavailable
-10%
Plate Washer
7
Yamaha Motors
Plate Washer90201-08326-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
TOOL BOX COMP.
8
Yamaha Motors
TOOL BOX COMP.36X-21107-00
Required: 1
TOOL BOX COMP.
Price unavailable
-10%
Band
9
Yamaha Motors
Band36X-2811G-00-00
Required: 1
BAND
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
FRONT CARRIER ASSY
10
Yamaha Motors
FRONT CARRIER ASSY36X-24860-00-98
Required: 1
FRONT CARRIER ASSY
Price unavailable
CLAMP, CARRIER
11
Yamaha Motors
CLAMP, CARRIER36X-24862-00
Required: 1
CLAMP, CARRIER
Price unavailable
SPRING, FRONT CARRIER
12
Yamaha Motors
SPRING, FRONT CARRIER36X-24861-00
Required: 1
SPRING, FRONT CARRIER
Price unavailable
-10%
TOOL KIT
13
Yamaha Motors
TOOL KIT36X-W2810-00-00
Required: 1
TOOL KIT
Supersedes: 36X-28100-00-00
Cross Ship
Leaves in 2-5 days
$95.99
$86.39
You save $9.60
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
