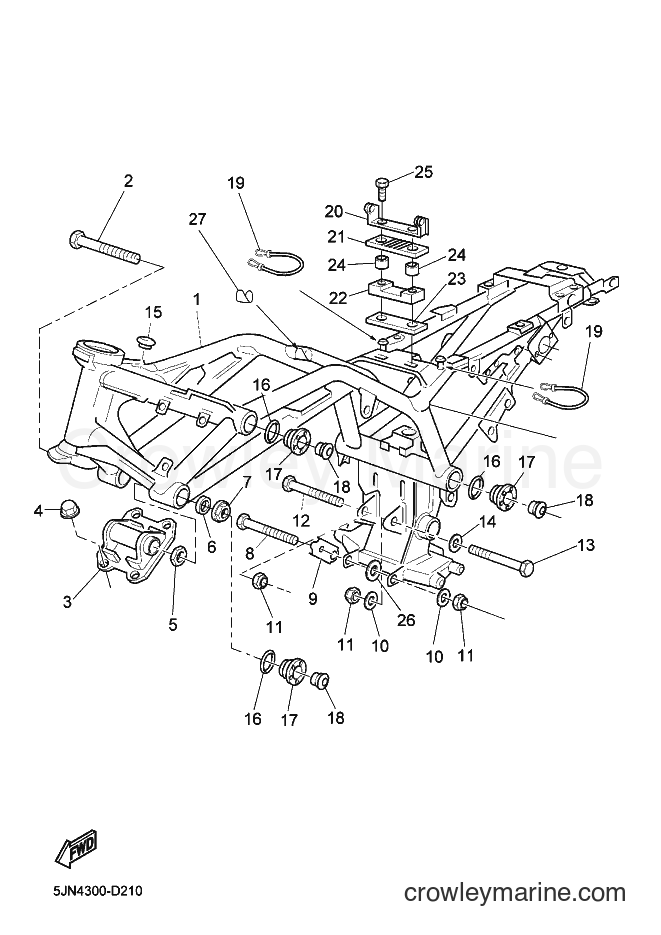

2005 Street Bike BT1100 - BT1100 (5JN4) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors BT1100 (5JN4) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.5JN-F1110-10-P0
Required: 1
FRAME COMP.
Price unavailable
BOLT, FLANGE
2
Yamaha Motors
BOLT, FLANGE90105-12014
Required: 1
BOLT, FLANGE
Price unavailable
STAY, ENGINE 3
3
Yamaha Motors
STAY, ENGINE 35JN-F1317-00
Required: 1
STAY, ENGINE 3
Price unavailable
-10%
SPECIAL SHAPE NUT
4
Yamaha Motors
SPECIAL SHAPE NUT90179-12657-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
NUT
5
Yamaha Motors
NUT5JN-F1494-00
Required: 1
NUT
Price unavailable
-10%
Plate Washer
6
Yamaha Motors
Plate Washer90201-12191-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Flange Bolt
8
Yamaha Motors
Flange Bolt90105-10114-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
GUIDE, WIRE HARNESS
9
Yamaha Motors
GUIDE, WIRE HARNESS5JN-F1397-00
Required: 1
GUIDE, WIRE HARNESS
Price unavailable
-10%
Plain Washer
10
Yamaha Motors
Plain Washer90201-106F2-00
Required: 2
WASHER, PLATE
Supersedes: 90201-100L3-00
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
FLANGE NUT (95704-10500-00)
11
Yamaha Motors
FLANGE NUT (95704-10500-00)90179-10658-00
Required: 3
NUT
Supersedes: 90179-10247-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Washer Based Bolt
13
Yamaha Motors
Washer Based Bolt90105-10027-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
Plate Washer
14
Yamaha Motors
Plate Washer90201-126A7-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
PLUG, BLIND
15
Yamaha Motors
PLUG, BLIND5JN-F1279-00
Required: 1
PLUG, BLIND
Price unavailable
RING, STOP
16
Yamaha Motors
RING, STOP5JN-F1718-00
Required: 6
RING, STOP
Price unavailable
CAP, TOOL BOX
17
Yamaha Motors
CAP, TOOL BOX5JN-F1399-00
Required: 6
CAP, TOOL BOX
Price unavailable
-10%
Plug
18
Yamaha Motors
Plug90338-11111-00
Required: 6
PLUG
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
WIRE
19
Yamaha Motors
WIRE4SU-F473J-00
Required: 2
WIRE
Price unavailable
DAMPER, LOCATING 5
22
Yamaha Motors
DAMPER, LOCATING 55JN-F4185-00
Required: 1
DAMPER, LOCATING 5
Price unavailable
COLLAR
24
Yamaha Motors
COLLAR90387-06X18
Required: 2
COLLAR
Price unavailable
-10%
Plate Washer
26
Yamaha Motors
Plate Washer90201-105A8-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
PROTECTOR
27
Yamaha Motors
PROTECTOR5JN-F117G-00
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
