2005 Street Bike YBR125ED - YBR125ED (3D91) [020] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

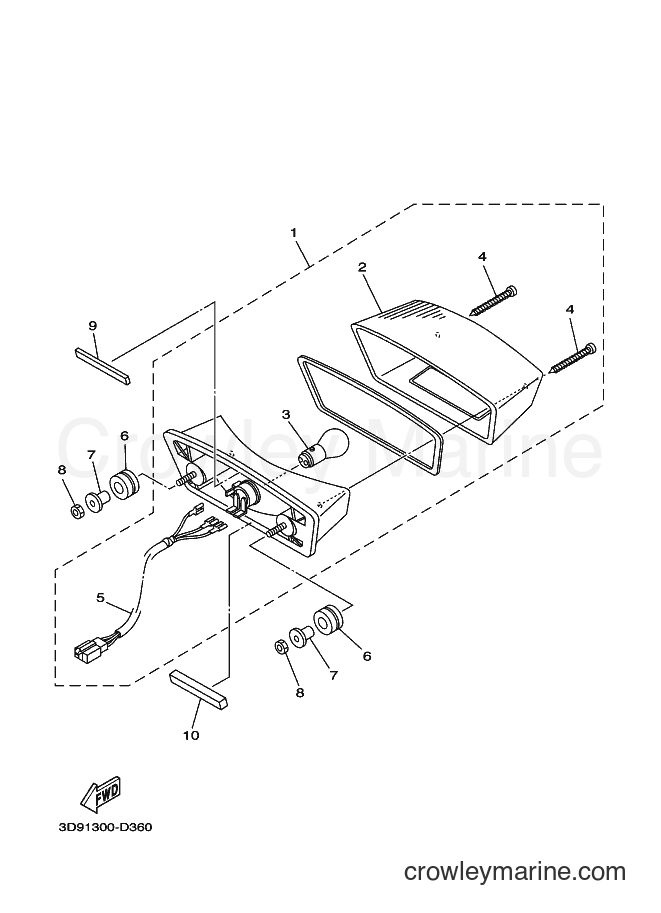

Yamaha Motors YBR125ED (3D91) [020] - TAILLIGHT
Change View:
TAILLIGHT UNIT ASSY
1
Yamaha Motors
TAILLIGHT UNIT ASSY3D9-H4710-00
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
. LENS, TAILLIGHT
2
Yamaha Motors
. LENS, TAILLIGHT3D9-H4721-00
Required: 1
. LENS, TAILLIGHT
Price unavailable
. BULB (12V-21/5W)
3
Yamaha Motors
. BULB (12V-21/5W)3D9-H4714-00
Required: 1
. BULB (12V-21/5W)
Price unavailable
. SCREW, LENS FITTING
4
Yamaha Motors
. SCREW, LENS FITTING3D9-H4724-00
Required: 2
. SCREW, LENS FITTING
Price unavailable
. CORD, TAILLIGHT
5
Yamaha Motors
. CORD, TAILLIGHT3D9-H4717-00
Required: 1
. CORD, TAILLIGHT
Price unavailable
GROMMET
6
Yamaha Motors
GROMMET90480-14812
Required: 2
GROMMET
Price unavailable
COLLAR
7
Yamaha Motors
COLLAR90387-06837
Required: 2
COLLAR
Price unavailable
-10%
Nut
8
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 9530N-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.46
You save $0.38
More details
DAMPER
9
Yamaha Motors
DAMPER5VL-H4753-00
Required: 1
DAMPER
Price unavailable
DAMPER, TAIL 1
10
Yamaha Motors
DAMPER, TAIL 15VL-H4736-00
Required: 1
DAMPER, TAIL 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
