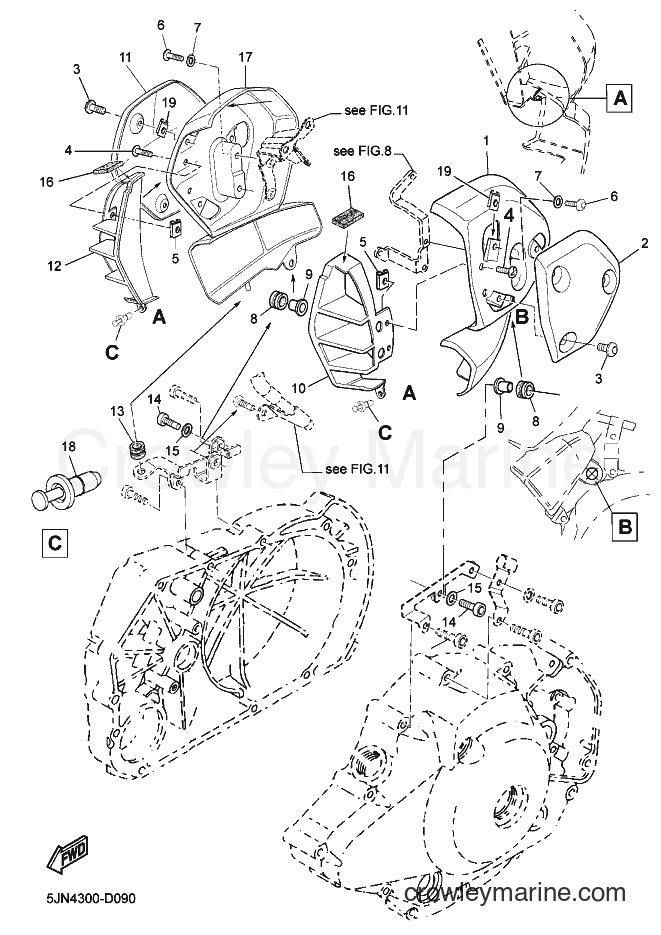

2006 Street Bike BT1100 - BT1100 (5JN5) [010] INTAKE 2 diagram
![Yamaha Motors BT1100 (5JN5) [010] - INTAKE 2](https://cdn.crowleymarine.com/yamaha/7XgezlVX.png)
1
Yamaha Motors
COVER, CARBURETOR 15JN-E4283-10
Required: 1
COVER, CARBURETOR 1
Price unavailable
2
Yamaha Motors
COVER, CARBURETOR5JN-E4280-00
Required: 1
COVER, CARBURETOR
Price unavailable
-10%
3
Yamaha Motors
BOLT92014-05014-00
Required: 6
BOLT, BUTTON HEAD
$8.54
You save $0.95
-10%
4
Yamaha Motors
Tapping Screw90167-05030-00
Required: 4
SCREW, TAPPING
$8.54
You save $0.95
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
6
Yamaha Motors
BOLT, BUTTON HEAD9201L-05014
Required: 4
BOLT, BUTTON HEAD
Price unavailable
7
Yamaha Motors
WASHER9290L-05200
Required: 4
WASHER
Price unavailable
-15%
In stock
5+ in stock
$2.80
You save $0.50
9
Yamaha Motors
COLLAR90387-06X17
Required: 2
COLLAR
Price unavailable
10
Yamaha Motors
COVER 15JN-E4417-00
Required: 1
COVER 1
Price unavailable
11
Yamaha Motors
COVER, CARBURETOR5JN-E4280-10
Required: 1
COVER, CARBURETOR
Price unavailable
12
Yamaha Motors
COVER 25JN-E4418-00
Required: 1
COVER 2
Price unavailable
-10%
$1.17
You save $0.13
-10%
$1.04
You save $0.11
-10%
15
Yamaha Motors
92990-06200-009290L-06200-00
Required: 2
WASHER
Supersedes: 9290M-06200-00
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
16
Yamaha Motors
DAMPER 15JN-E4425-00
Required: 2
DAMPER 1
Price unavailable
17
Yamaha Motors
COVER, CARBURETOR 25JN-E4284-10
Required: 1
COVER, CARBURETOR 2
Price unavailable
-10%
$2.66
You save $0.29
19
Yamaha Motors
NUT, SPRING90183-05812
Required: 6
NUT, SPRING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
