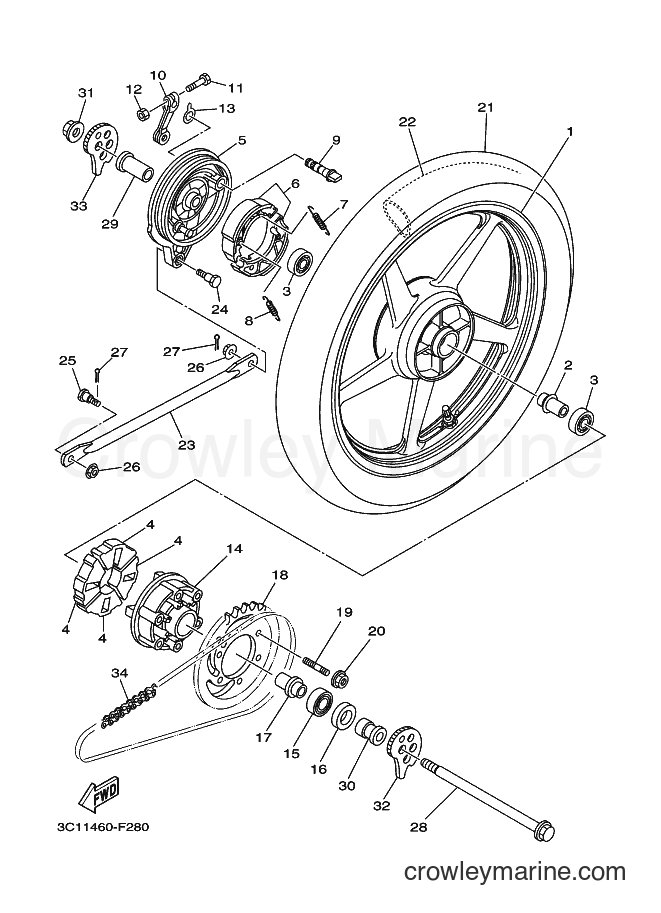

2007 Street Bike FZ150 - FZ150 (3C11) [010] REAR WHEEL diagram
![Yamaha Motors FZ150 (3C11) [010] - REAR WHEEL](https://cdn.crowleymarine.com/yamaha/1LWZEtuw.png)
1
Yamaha Motors
CAST WHEEL, REAR3C1-F5338-00
Required: 1
CAST WHEEL, REAR
Price unavailable
2
Yamaha Motors
COLLAR ASSY5BP-F530S-00
Required: 1
COLLAR ASSY
Price unavailable
3
Yamaha Motors
BEARING93306-252X7
Required: 2
BEARING
Price unavailable
4
Yamaha Motors
DAMPER3C1-F5364-00
Required: 4
DAMPER
Price unavailable
5
Yamaha Motors
PLATE, BRAKE SHOE5BP-F5321-01-33
Required: 1
PLATE, BRAKE SHOE
Price unavailable
6
Yamaha Motors
BRAKE SHOE SET5BP-F530K-00
Required: 1
BRAKE SHOE SET
Price unavailable
-10%
7
Yamaha Motors
Tension Spring90506-12001-00
Required: 1
SPRING, TENSION
$9.44
You save $1.05
-10%
8
Yamaha Motors
Tension Spring90506-15001-00
Required: 1
SPRING, TENSION
$5.84
You save $0.65
9
Yamaha Motors
CAMSHAFT5BP-F5351-00
Required: 1
CAMSHAFT
Price unavailable
10
Yamaha Motors
LEVER, CAMSHAFT5BP-F5355-00
Required: 1
LEVER, CAMSHAFT
Price unavailable
-10%
$2.34
You save $0.26
-10%
12
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
$3.46
You save $0.38
13
Yamaha Motors
PLATE, INDICATOR4ST-F533A-00
Required: 1
PLATE, INDICATOR
Price unavailable
14
Yamaha Motors
CLUTCH, HUB3C1-F5366-00-33
Required: 1
CLUTCH, HUB
Price unavailable
15
Yamaha Motors
BEARING93306-004XV
Required: 1
BEARING
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$6.57
You save $0.73
17
Yamaha Motors
COLLAR90387-158V4
Required: 1
COLLAR
Price unavailable
18
Yamaha Motors
SPROCKET, DRIVEN (42T)3C1-F5442-00
Required: 1
SPROCKET, DRIVEN (42T)
Price unavailable
19
Yamaha Motors
BOLT, STUD90116-08812
Required: 6
BOLT, STUD
Price unavailable
-10%
20
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 6
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.54
You save $0.95
21
Yamaha Motors
TIRE (90/90-17 49P NR72)94109-17801
Required: 1
TIRE (90/90-17 49P NR72)
Price unavailable
21
Yamaha Motors
TIRE (90/90-17 49P D102A)94109-17802
Required: 1
TIRE (90/90-17 49P D102A)
Price unavailable
22
Yamaha Motors
TUBE (3.00/3.25-17 TR4)94218-17800
Required: 1
TUBE (3.00/3.25-17 TR4)
Price unavailable
22
Yamaha Motors
TUBE (2.75-17 TR4)94227-17805
Required: 1
TUBE (2.75-17 TR4)
Price unavailable
23
Yamaha Motors
BAR, TENSION3C1-F5371-00
Required: 1
BAR, TENSION
Price unavailable
-10%
$10.34
You save $1.15
25
Yamaha Motors
BOLT90109-08825
Required: 1
BOLT
Price unavailable
-15%
$1.66
You save $0.29
27
Yamaha Motors
PIN, COTTER91401-20012
Required: 2
PIN, COTTER
Price unavailable
28
Yamaha Motors
AXLE, WHEEL3C1-F5381-00
Required: 1
AXLE, WHEEL
Price unavailable
29
Yamaha Motors
COLLAR, WHEEL3C1-F5383-00
Required: 1
COLLAR, WHEEL
Price unavailable
30
Yamaha Motors
COLLAR, SPROCKET AXLE3C1-F5386-00
Required: 1
COLLAR, SPROCKET AXLE
Price unavailable
-10%
31
Yamaha Motors
Self-Locking Nut95607-14200-00
Required: 1
NUT, SELF-LOCKING
$12.14
You save $1.35
32
Yamaha Motors
PULLER, CHAIN 13C1-F5388-00
Required: 1
PULLER, CHAIN 1
Price unavailable
33
Yamaha Motors
PULLER, CHAIN 23C1-F5389-00
Required: 1
PULLER, CHAIN 2
Price unavailable
34
Yamaha Motors
CHAIN (FSCM 428H-120)94568-C0120
Required: 1
CHAIN (FSCM 428H-120)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
