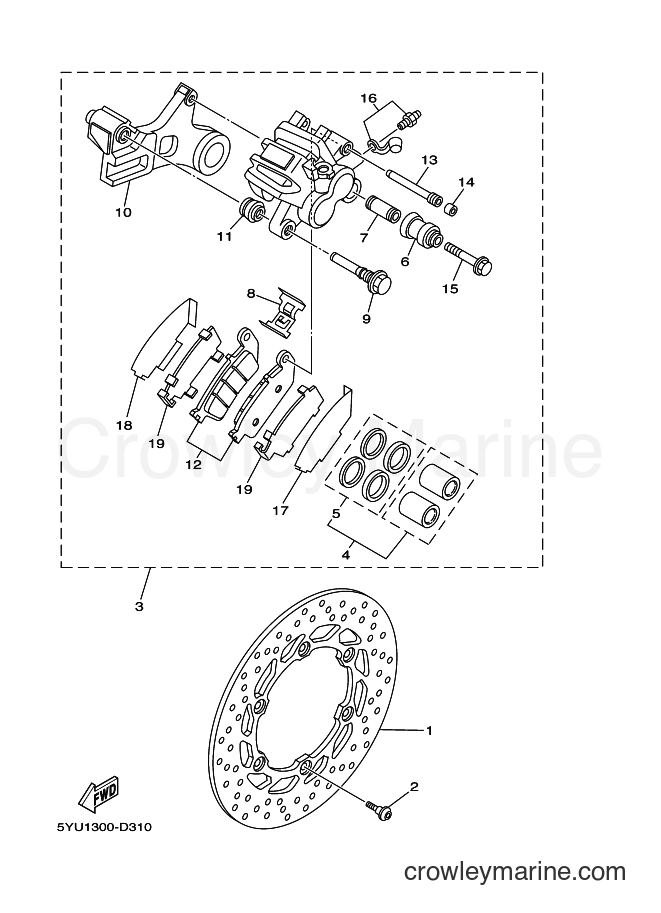

2007 Street Bike MT01 - MT01 (5YUD) [010] REAR BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MT01 (5YUD) [010] - REAR BRAKE CALIPER
Change View:
DISC, REAR BRAKE 1
1
Yamaha Motors
DISC, REAR BRAKE 15YU-2582V-00
Required: 1
DISC, REAR BRAKE 1
Price unavailable
-10%
BOLT
2
Yamaha Motors
BOLT90109-06254-00
Required: 6
BOLT
Supersedes: 90109-064G6-00
Cross Ship
Leaves in 2-5 days
$3.60
$3.24
You save $0.36
More details
CALIPER ASSY, REAR 1
3
Yamaha Motors
CALIPER ASSY, REAR 15YU-2580V-00
Required: 1
CALIPER ASSY, REAR 1
Price unavailable
-10%
CALIPER PISTON ASSEMBLY
4
Yamaha Motors
CALIPER PISTON ASSEMBLY3LD-25802-00-00
Required: 1
. PISTON ASSY, CALIPER
Supersedes: 3LD-W0057-00-00
Cross Ship
Leaves in 2-5 days
$58.99
$53.09
You save $5.90
More details
-10%
Caliper Seal Kit
5
Yamaha Motors
Caliper Seal Kit3JD-25803-00-00
Required: 1
. . CALIPER SEAL KIT
Supersedes: 3JD-W0047-00-00
Cross Ship
Leaves in 2-5 days
$23.99
$21.59
You save $2.40
More details
-10%
Caliper Boot
6
Yamaha Motors
Caliper Boot5SL-25917-00-00
Required: 1
. BOOT, CALIPER
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
-10%
CALIPER SLEEVE
7
Yamaha Motors
CALIPER SLEEVE5SL-25838-00-00
Required: 1
. SLEEVE, CALIPER
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
. SUPPORT, PAD
8
Yamaha Motors
. SUPPORT, PAD5YU-25919-00
Required: 1
. SUPPORT, PAD
Price unavailable
. PIN, SLIDE
9
Yamaha Motors
. PIN, SLIDE5YU-25914-00
Required: 1
. PIN, SLIDE
Price unavailable
. BRACKET, SUPPORT
10
Yamaha Motors
. BRACKET, SUPPORT5YU-25921-00
Required: 1
. BRACKET, SUPPORT
Price unavailable
-10%
Caliper Boot
11
Yamaha Motors
Caliper Boot3JD-25917-00-00
Required: 1
. BOOT, CALIPER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. BRAKE PAD KIT 2
12
Yamaha Motors
. BRAKE PAD KIT 25YU-W0046-00
Required: 1
. BRAKE PAD KIT 2
Price unavailable
. PIN, PAD
13
Yamaha Motors
. PIN, PAD5YU-25924-00
Required: 1
. PIN, PAD
Price unavailable
-10%
Plug
14
Yamaha Motors
Plug5DH-25916-00-00
Required: 1
. PLUG
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
BOLT
15
Yamaha Motors
BOLT5SL-25926-00-00
Required: 1
. BOLT
Cross Ship
Leaves in 2-5 days
$19.99
$17.99
You save $2.00
More details
. SHIM, CALIPER
17
Yamaha Motors
. SHIM, CALIPER5YU-25827-00
Required: 1
. SHIM, CALIPER
Price unavailable
. SHIM, CALIPER
18
Yamaha Motors
. SHIM, CALIPER5YU-25827-10
Required: 1
. SHIM, CALIPER
Price unavailable
. SHIM, CALIPER
19
Yamaha Motors
. SHIM, CALIPER5YU-25828-00
Required: 2
. SHIM, CALIPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
