2007 Street Bike TDM900A - TDM900A (2B03) [040] COWLING 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

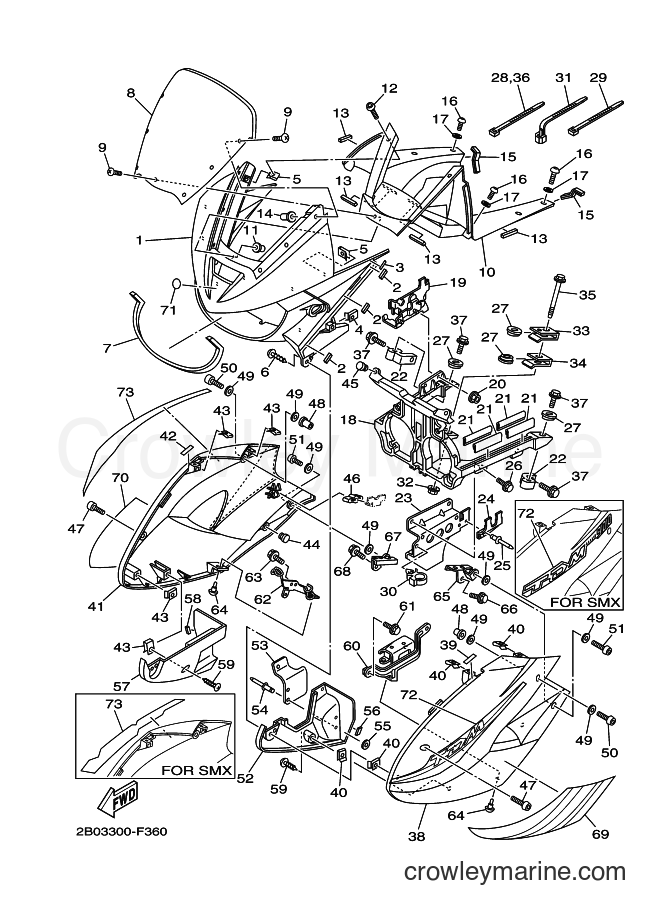

Yamaha Motors TDM900A (2B03) [040] - COWLING 1
Change View:
BODY, FRONT UPPER 1
1
Yamaha Motors
BODY, FRONT UPPER 15PS-2835G-00-P6
Required: 1
BODY, FRONT UPPER 1
Price unavailable
DAMPER
2
Yamaha Motors
DAMPER4TX-21717-00
Required: 6
DAMPER
Price unavailable
LABEL
3
Yamaha Motors
LABEL5PS-2178A-00
Required: 2
LABEL
Price unavailable
-10%
Spring Nut
4
Yamaha Motors
Spring Nut90183-05061-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Tapping Screw
6
Yamaha Motors
Tapping Screw90167-05080-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.70
$2.43
You save $0.27
More details
DAMPER
7
Yamaha Motors
DAMPER5PS-84163-00
Required: 1
DAMPER
Price unavailable
WINDSHIELD
8
Yamaha Motors
WINDSHIELD5PS-28381-01
Required: 1
WINDSHIELD
Price unavailable
-10%
PLASTIC SCREW
9
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 7
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$3.35
$3.02
You save $0.33
More details
PANEL, INNER 1
10
Yamaha Motors
PANEL, INNER 15PS-2836K-00
Required: 1
PANEL, INNER 1
Price unavailable
-10%
Tapping Screw
12
Yamaha Motors
Tapping Screw90167-05080-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.70
$2.43
You save $0.27
More details
-10%
Damper
13
Yamaha Motors
Damper5PS-28217-00-00
Required: 4
DAMPER 1
Cross Ship
Leaves in 2-5 days
$3.60
$3.24
You save $0.36
More details
MOLE 1
15
Yamaha Motors
MOLE 15PS-28345-00
Required: 2
MOLE 1
Price unavailable
-10%
Self-Tapping (4TX) Screw
16
Yamaha Motors
Self-Tapping (4TX) Screw90167-05076-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.85
$2.56
You save $0.29
More details
-10%
PLATE WASHER (MG5)
17
Yamaha Motors
PLATE WASHER (MG5)90202-05224-00
Required: 6
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
STAY 1
18
Yamaha Motors
STAY 15PS-28356-01
Required: 1
STAY 1
Price unavailable
STAY 2
19
Yamaha Motors
STAY 22B0-28322-10
Required: 1
STAY 2
Price unavailable
-10%
95604-06200-00
20
Yamaha Motors
95604-06200-0095607-06200-00
Required: 2
NUT, SELF U-FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
-10%
Protector
21
Yamaha Motors
Protector52W-2117G-00-00
Required: 4
PROTECTOR
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
STAY, LEG SHIELD
22
Yamaha Motors
STAY, LEG SHIELD5PS-28332-00
Required: 2
STAY, LEG SHIELD
Price unavailable
PLATE
23
Yamaha Motors
PLATE2B0-28336-00
Required: 1
PLATE
Price unavailable
HOLDER
24
Yamaha Motors
HOLDER2B0-28337-00
Required: 1
HOLDER
Price unavailable
-10%
BLIND RIVET
25
Yamaha Motors
BLIND RIVET90267-32071-00
Required: 2
RIVET, BLIND
Supersedes: 90267-32018-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.98
You save $0.22
More details
-10%
Bolt with Washer
26
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
COLLAR
27
Yamaha Motors
COLLAR5PS-28373-00
Required: 4
COLLAR
Price unavailable
-10%
Clamp
29
Yamaha Motors
Clamp90464-35132-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Clamp
30
Yamaha Motors
Clamp90464-07209-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.50
$2.25
You save $0.25
More details
-10%
Clamp
31
Yamaha Motors
Clamp90464-15195-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$4.41
$3.97
You save $0.44
More details
-15%
Flange Nut
32
Yamaha Motors
Flange Nut95707-08500-00
Required: 1
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
PLATE 1
33
Yamaha Motors
PLATE 15PS-28396-00
Required: 1
PLATE 1
Price unavailable
PLATE 2
34
Yamaha Motors
PLATE 25PS-28397-00
Required: 1
PLATE 2
Price unavailable
BOLT, LEG SHIELD
35
Yamaha Motors
BOLT, LEG SHIELD5PS-28331-00
Required: 1
BOLT, LEG SHIELD
Price unavailable
-10%
Bolt Flange (4LN)
37
Yamaha Motors
Bolt Flange (4LN)95817-08025-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
PANEL 1
38
Yamaha Motors
PANEL 15PS-2835U-00-P9
Required: 1
PANEL 1
Price unavailable
LABEL
39
Yamaha Motors
LABEL5PS-2178A-00
Required: 2
LABEL
Price unavailable
PANEL 2
41
Yamaha Motors
PANEL 25PS-2835V-00-P9
Required: 1
PANEL 2
Price unavailable
LABEL
42
Yamaha Motors
LABEL5PS-2178A-00
Required: 2
LABEL
Price unavailable
-10%
Plug
44
Yamaha Motors
Plug90338-10132-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$3.80
$3.42
You save $0.38
More details
-10%
Plug
45
Yamaha Motors
Plug90338-11125-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
DAMPER 2
46
Yamaha Motors
DAMPER 215A-21717-00-00
Required: 2
DAMPER
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
BOLT,HEX. SOCKET BUTTON
47
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-05059-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05201-00
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details
-10%
PLATE WASHER (MG5)
49
Yamaha Motors
PLATE WASHER (MG5)90202-05224-00
Required: 8
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
BOLT,HEX. SOCKET BUTTON
51
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-05059-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05201-00
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details
GRILL, AIR INTAKE 1
52
Yamaha Motors
GRILL, AIR INTAKE 15PS-2837N-01
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
COVER
53
Yamaha Motors
COVER2B0-2177F-00
Required: 1
COVER
Price unavailable
-10%
Blind Rivet
54
Yamaha Motors
Blind Rivet90267-32192-00
Required: 3
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$1.95
$1.76
You save $0.20
More details
DAMPER
56
Yamaha Motors
DAMPER4TX-21717-00
Required: 1
DAMPER
Price unavailable
GRILL, AIR INTAKE 2
57
Yamaha Motors
GRILL, AIR INTAKE 25PS-2837R-00
Required: 1
GRILL, AIR INTAKE 2
Price unavailable
DAMPER
58
Yamaha Motors
DAMPER4TX-21717-00
Required: 1
DAMPER
Price unavailable
STAY 1
60
Yamaha Motors
STAY 12B0-28321-00
Required: 1
STAY 1
Price unavailable
STAY 2
62
Yamaha Motors
STAY 22B0-28357-00
Required: 1
STAY 2
Price unavailable
-10%
RIVET
64
Yamaha Motors
RIVET90269-07077-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BRACKET 1
65
Yamaha Motors
BRACKET 15PS-2836A-00
Required: 1
BRACKET 1
Price unavailable
BRACKET 2
67
Yamaha Motors
BRACKET 25PS-2836E-00
Required: 1
BRACKET 2
Price unavailable
GRAPHIC 3
69
Yamaha Motors
GRAPHIC 35PS-28393-40
Required: 1
GRAPHIC 3
Price unavailable
GRAPHIC 4
70
Yamaha Motors
GRAPHIC 45PS-28394-40
Required: 1
GRAPHIC 4
Price unavailable
GRAPHIC 1
72
Yamaha Motors
GRAPHIC 15PS-28391-B0
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
73
Yamaha Motors
GRAPHIC 25PS-28392-B0
Required: 1
GRAPHIC 2
Price unavailable
