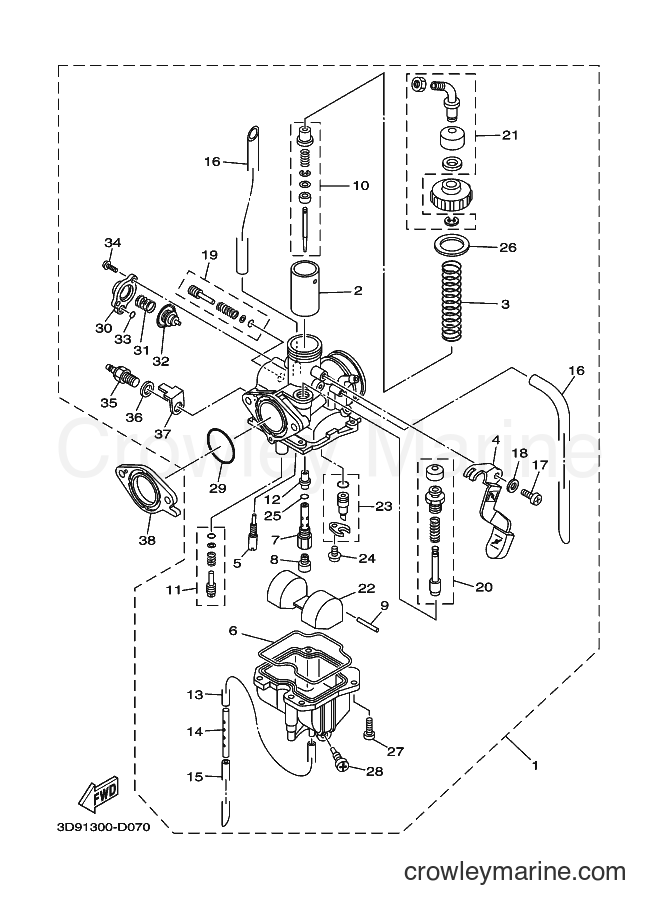

2007 Street Bike YBR125ED - YBR125ED (3D96) [010] CARBURETOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YBR125ED (3D96) [010] - CARBURETOR
Change View:
CARBURETOR ASSY 1
1
Yamaha Motors
CARBURETOR ASSY 13D9-E4101-01
Required: 1
CARBURETOR ASSY 1
Price unavailable
. VALVE, THROTTLE 2
2
Yamaha Motors
. VALVE, THROTTLE 23S9-1411F-25
Required: 1
. VALVE, THROTTLE 2
Price unavailable
. SPRING, THROTTLE VALVE
3
Yamaha Motors
. SPRING, THROTTLE VALVE5VL-14131-00
Required: 1
. SPRING, THROTTLE VALVE
Price unavailable
. LEVER, STARTER
4
Yamaha Motors
. LEVER, STARTER3D9-14905-00
Required: 1
. LEVER, STARTER
Price unavailable
-10%
PILOT JET #15
5
Yamaha Motors
PILOT JET #153H1-14142-15-00
Required: 1
. JET, PILOT (# 15)
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
. O-RING
6
Yamaha Motors
. O-RING5VL-14147-00
Required: 1
. O-RING
Price unavailable
. SETTER, NEEDLE JET
7
Yamaha Motors
. SETTER, NEEDLE JET4LS-14145-00
Required: 1
. SETTER, NEEDLE JET
Price unavailable
-10%
Main Jet (#97.5)
8
Yamaha Motors
Main Jet (#97.5)620-1423A-70-A0
Required: 1
. JET, MAIN (#97.5)
Supersedes: 620-1423A-70-00
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
Float Pin
9
Yamaha Motors
Float Pin127-14186-00-00
Required: 1
. PIN, FLOAT
Cross Ship
Leaves in 2-5 days
$6.99
$6.29
You save $0.70
More details
. NEEDLE SET
10
Yamaha Motors
. NEEDLE SET5VL-1490J-10
Required: 1
. NEEDLE SET
Price unavailable
. PILOT SCREW SET
11
Yamaha Motors
. PILOT SCREW SET5VL-14105-00
Required: 1
. PILOT SCREW SET
Price unavailable
. NOZZLE, MAIN
12
Yamaha Motors
. NOZZLE, MAIN5VL-14141-27
Required: 1
. NOZZLE, MAIN
Price unavailable
. PIPE
13
Yamaha Motors
. PIPE5VL-14193-10
Required: 1
. PIPE
Price unavailable
. PIPE
14
Yamaha Motors
. PIPE5VL-14148-00
Required: 1
. PIPE
Price unavailable
. PIPE
15
Yamaha Motors
. PIPE5VL-14196-00
Required: 1
. PIPE
Price unavailable
. PIPE
16
Yamaha Motors
. PIPE5VL-14197-10
Required: 2
. PIPE
Price unavailable
. SCREW
17
Yamaha Motors
. SCREW3XP-14565-00
Required: 1
. SCREW
Price unavailable
. WASHER
18
Yamaha Motors
. WASHER3XP-14285-00
Required: 1
. WASHER
Price unavailable
. THROTTLE SCREW SET
19
Yamaha Motors
. THROTTLE SCREW SET5VL-14103-00
Required: 1
. THROTTLE SCREW SET
Price unavailable
. STARTER SET
20
Yamaha Motors
. STARTER SET5VL-1410A-00
Required: 1
. STARTER SET
Price unavailable
. CABLE ADJUST SCREW SET
21
Yamaha Motors
. CABLE ADJUST SCREW SET5VL-14106-00
Required: 1
. CABLE ADJUST SCREW SET
Price unavailable
-10%
Float
22
Yamaha Motors
Float21V-14185-00-00
Required: 1
. FLOAT
Cross Ship
Leaves in 2-5 days
$76.99
$69.29
You save $7.70
More details
. NEEDLE VALVE SET
23
Yamaha Motors
. NEEDLE VALVE SET5PC-14107-18
Required: 1
. NEEDLE VALVE SET
Price unavailable
-10%
Screw with Washer
24
Yamaha Motors
Screw with Washer97607-03106-00
Required: 1
. SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$2.07
You save $0.23
More details
-10%
O-Ring
25
Yamaha Motors
O-Ring583-14561-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
. GASKET
26
Yamaha Motors
. GASKET5VL-14126-00
Required: 1
. GASKET
Price unavailable
-10%
Pan Head Screw
27
Yamaha Motors
Pan Head Screw98507-04010-00
Required: 4
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.65
$3.29
You save $0.37
More details
-10%
Drain Plug
28
Yamaha Motors
Drain Plug12R-14191-00-00
Required: 1
. PLUG, DRAIN
Cross Ship
Leaves in 2-5 days
$17.99
$16.19
You save $1.80
More details
-10%
O-Ring
29
Yamaha Motors
O-Ring24W-14147-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$11.99
$10.79
You save $1.20
More details
. COVER, CARBURETOR
30
Yamaha Motors
. COVER, CARBURETOR5VL-14280-00
Required: 1
. COVER, CARBURETOR
Price unavailable
. SPRING, DIAPHRAGM
31
Yamaha Motors
. SPRING, DIAPHRAGM5VL-14933-00
Required: 1
. SPRING, DIAPHRAGM
Price unavailable
. DIAPHRAGM ASSY
32
Yamaha Motors
. DIAPHRAGM ASSY5VL-14940-00
Required: 1
. DIAPHRAGM ASSY
Price unavailable
-10%
O-Ring
33
Yamaha Motors
O-Ring3H1-14147-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
With Washer Screw
34
Yamaha Motors
With Washer Screw97607-04110-00
Required: 2
. SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.65
$2.39
You save $0.27
More details
-10%
Heater Assembly
35
Yamaha Motors
Heater Assembly5FU-83790-10-00
Required: 1
. HEATER ASSY (20W)
Cross Ship
Leaves in 2-5 days
$45.99
$41.39
You save $4.60
More details
-10%
WASHER
36
Yamaha Motors
WASHER5CY-14951-00-00
Required: 1
. WASHER
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
Terminal
37
Yamaha Motors
Terminal5FU-82103-00-00
Required: 1
. TERMINAL 1
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
JOINT
38
Yamaha Motors
JOINT5VL-E3595-00
Required: 1
JOINT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
