2007 Street Bike YBR125ED - YBR125ED (3D96) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

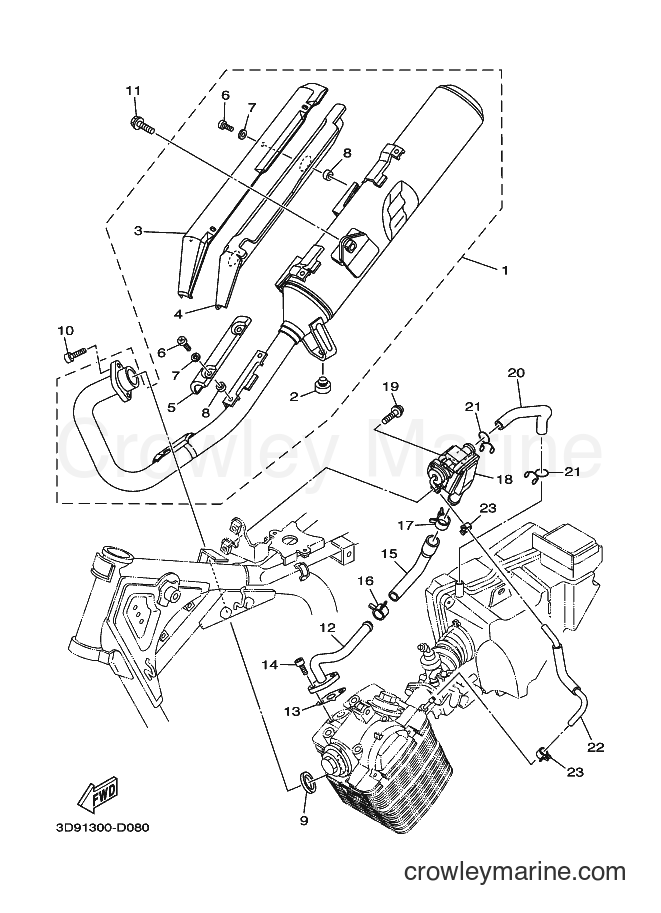

Yamaha Motors YBR125ED (3D96) [010] - EXHAUST
Change View:
MUFFLER ASSY 1
1
Yamaha Motors
MUFFLER ASSY 13D9-E4710-01
Required: 1
MUFFLER ASSY 1
Price unavailable
. PAD, SEAT
2
Yamaha Motors
. PAD, SEAT4TU-F4741-00
Required: 1
. PAD, SEAT
Price unavailable
. PROTECTOR, SILENCER
3
Yamaha Motors
. PROTECTOR, SILENCER3D9-E4758-00
Required: 1
. PROTECTOR, SILENCER
Price unavailable
. PROTECTOR, MUFFLER 2
4
Yamaha Motors
. PROTECTOR, MUFFLER 25VL-E4728-20
Required: 1
. PROTECTOR, MUFFLER 2
Price unavailable
. PROTECTOR, EXHAUST PIPE
5
Yamaha Motors
. PROTECTOR, EXHAUST PIPE5VL-E4628-00
Required: 1
. PROTECTOR, EXHAUST PIPE
Price unavailable
. WASHER, PLATE
7
Yamaha Motors
. WASHER, PLATE90201-05803
Required: 6
. WASHER, PLATE
Price unavailable
. WASHER, PLATE
8
Yamaha Motors
. WASHER, PLATE90201-05804
Required: 6
. WASHER, PLATE
Price unavailable
GASKET, EXHAUST PIPE
9
Yamaha Motors
GASKET, EXHAUST PIPE5VL-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
-10%
Bolt (3JB)
10
Yamaha Motors
Bolt (3JB)91314-06020-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.65
$2.39
You save $0.27
More details
-10%
Flange Bolt
11
Yamaha Motors
Flange Bolt95812-08020-00
Required: 1
BOLT, FLANGE
Supersedes: 9581N-08020-00
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details
PIPE 2
12
Yamaha Motors
PIPE 25VL-E4872-00
Required: 1
PIPE 2
Price unavailable
-10%
Tank Cap Gasket
13
Yamaha Motors
Tank Cap Gasket5VL-E4815-00-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
BOLT
14
Yamaha Motors
BOLT9131M-06016-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.61
More details
HOSE, BEND 1
15
Yamaha Motors
HOSE, BEND 15VL-E4881-00
Required: 1
HOSE, BEND 1
Price unavailable
-10%
Clip
16
Yamaha Motors
Clip90467-13802-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$3.10
$2.79
You save $0.31
More details
-10%
Clip
17
Yamaha Motors
Clip90467-16800-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$3.10
$2.79
You save $0.31
More details
AIR INDUCTION SYSTEM ASSY
18
Yamaha Motors
AIR INDUCTION SYSTEM ASSY5VL-E4803-00
Required: 1
AIR INDUCTION SYSTEM ASSY
Price unavailable
SCREW, PAN HEAD WITH WASHER
19
Yamaha Motors
SCREW, PAN HEAD WITH WASHER9760N-06220
Required: 2
SCREW, PAN HEAD WITH WASHER
Price unavailable
HOSE, BEND 2
20
Yamaha Motors
HOSE, BEND 25VL-E4882-00
Required: 1
HOSE, BEND 2
Price unavailable
-10%
Scissor Clip
21
Yamaha Motors
Scissor Clip90467-15012-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
HOSE
22
Yamaha Motors
HOSE5VL-E4987-00
Required: 1
HOSE
Price unavailable
CLIP
23
Yamaha Motors
CLIP90467-08801
Required: 2
CLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
