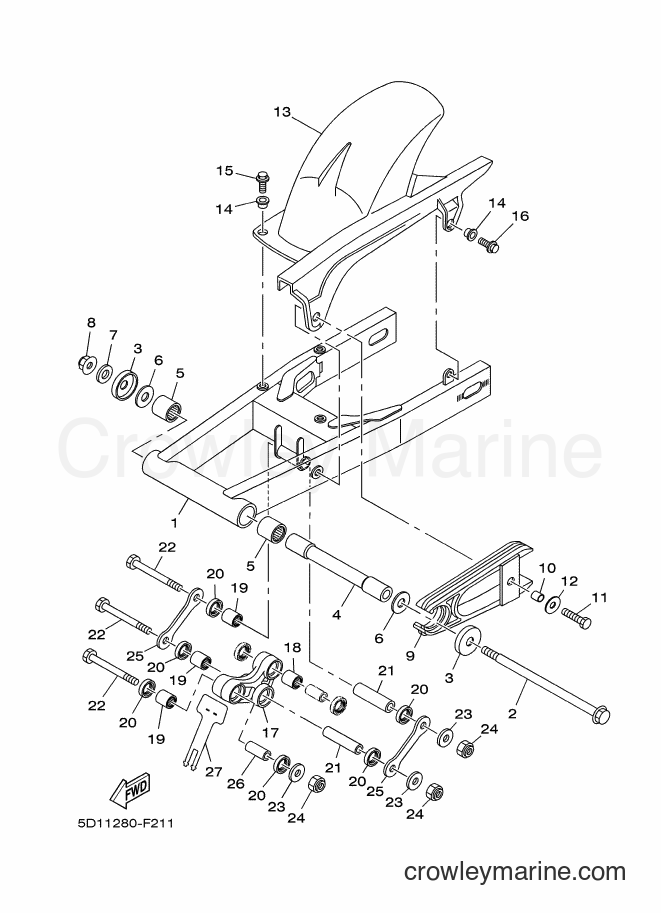

2007 Street Bike YBR250 - YBR250 (5D11) [050] REAR ARM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YBR250 (5D11) [050] - REAR ARM
Change View:
REAR ARM COMP.
1
Yamaha Motors
REAR ARM COMP.1S4-F2110-50
Required: 1
REAR ARM COMP.
Price unavailable
SHAFT, PIVOT
2
Yamaha Motors
SHAFT, PIVOT5HH-F2141-01
Required: 1
SHAFT, PIVOT
Price unavailable
COVER, THRUST 2
3
Yamaha Motors
COVER, THRUST 21S4-F2129-00
Required: 2
COVER, THRUST 2
Price unavailable
BUSH
4
Yamaha Motors
BUSH1S4-F2184-00
Required: 1
BUSH
Price unavailable
-10%
BEARING,CYL.#20
5
Yamaha Motors
BEARING,CYL.#2093320-32403-00
Required: 2
BEARING
Cross Ship
Leaves in 2-5 days
$50.99
$45.89
You save $5.10
More details
WASHER, PLATE
6
Yamaha Motors
WASHER, PLATE90201-14015
Required: 2
WASHER, PLATE
Price unavailable
-10%
Plate Washer
7
Yamaha Motors
Plate Washer90201-122H1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Self-Locking Nut
8
Yamaha Motors
Self-Locking Nut90185-12134-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
SEAL, GUARD
9
Yamaha Motors
SEAL, GUARD1S4-F2151-00
Required: 1
SEAL, GUARD
Price unavailable
BOLT
11
Yamaha Motors
BOLT9702M-06025
Required: 1
BOLT
Price unavailable
-10%
Plain Washer
12
Yamaha Motors
Plain Washer90201-06086-00
Required: 1
WASHER, PLATE
Supersedes: 90201-060A3-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
REAR FENDER COMP.
13
Yamaha Motors
REAR FENDER COMP.1S4-F1650-00
Required: 1
REAR FENDER COMP.
Price unavailable
-10%
BOLT
15
Yamaha Motors
BOLT90105-06790-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
ARM, RELAY
17
Yamaha Motors
ARM, RELAY1S4-F217A-09
Required: 1
ARM, RELAY
Price unavailable
-10%
BEARING
18
Yamaha Motors
BEARING93315-31758-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$44.99
$40.49
You save $4.50
More details
-10%
BEARING
19
Yamaha Motors
BEARING93315-31759-00
Required: 3
BEARING
Cross Ship
Leaves in 2-5 days
$42.99
$38.69
You save $4.30
More details
OIL SEAL
20
Yamaha Motors
OIL SEAL93106-17801
Required: 6
OIL SEAL
Price unavailable
-10%
COLLAR
21
Yamaha Motors
COLLAR90387-12047-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
BOLT
22
Yamaha Motors
BOLT90101-12022
Required: 3
BOLT
Price unavailable
-10%
Plate Washer
23
Yamaha Motors
Plate Washer90201-124E4-00
Required: 3
WASHER, PLATE
Supersedes: 90201-12688-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
NUT
24
Yamaha Motors
NUT95617-12100-00
Required: 3
NUT, U
Cross Ship
Leaves in 2-5 days
$4.16
$3.74
You save $0.42
More details
ROD, CONNECTING 1
25
Yamaha Motors
ROD, CONNECTING 11S4-F217F-00
Required: 2
ROD, CONNECTING 1
Price unavailable
COLLAR
26
Yamaha Motors
COLLAR90387-123Y4
Required: 1
COLLAR
Price unavailable
COVER, DUST
27
Yamaha Motors
COVER, DUST1S4-F2327-00
Required: 1
COVER, DUST
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
