2007 Street Bike YBR250 - YBR250 (5D11) [050] REAR WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

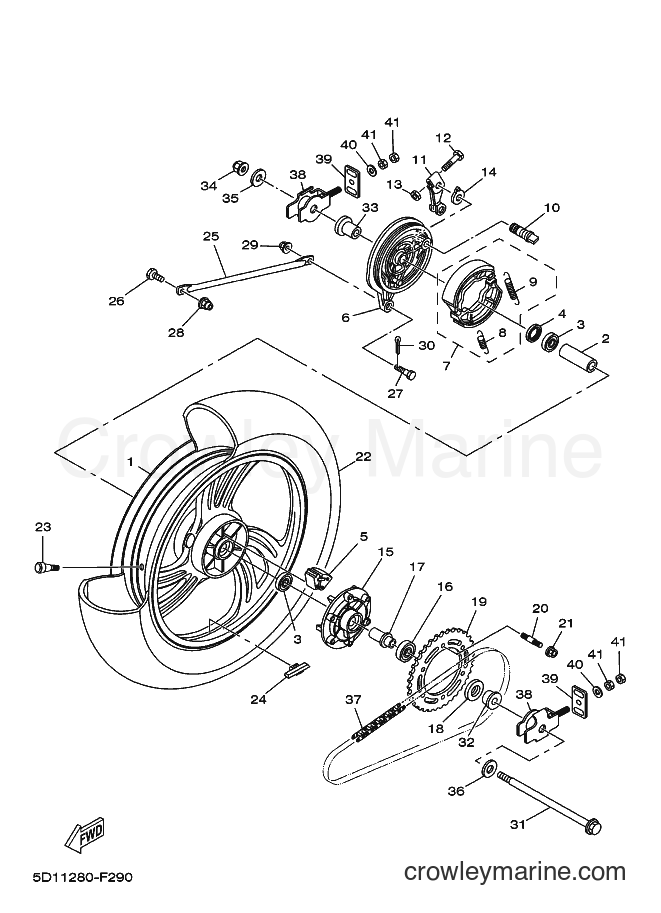

Yamaha Motors YBR250 (5D11) [050] - REAR WHEEL
Change View:
CAST WHEEL, REAR
1
Yamaha Motors
CAST WHEEL, REAR1S4-F5338-00-33
Required: 1
CAST WHEEL, REAR
Price unavailable
SPACER, BEARING
2
Yamaha Motors
SPACER, BEARING1S4-F5317-00
Required: 1
SPACER, BEARING
Price unavailable
BEARING
3
Yamaha Motors
BEARING93306-252Y5
Required: 2
BEARING
Price unavailable
-10%
OIL SEAL,SO-TYPE
4
Yamaha Motors
OIL SEAL,SO-TYPE93104-22018-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
DAMPER
5
Yamaha Motors
DAMPER1S4-F5364-00
Required: 6
DAMPER
Price unavailable
PLATE, BRAKE SHOE
6
Yamaha Motors
PLATE, BRAKE SHOE5HH-F5321-01-33
Required: 1
PLATE, BRAKE SHOE
Price unavailable
BRAKE SHOE KIT
7
Yamaha Motors
BRAKE SHOE KIT5D1-WF53A-00
Required: 1
BRAKE SHOE KIT
Price unavailable
-10%
Tension Spring
8
Yamaha Motors
Tension Spring90506-12001-00
Required: 1
. SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Tension Spring
9
Yamaha Motors
Tension Spring90506-15001-00
Required: 1
. SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
CAMSHAFT
10
Yamaha Motors
CAMSHAFT5HH-F5351-01
Required: 1
CAMSHAFT
Price unavailable
LEVER, CAMSHAFT
11
Yamaha Motors
LEVER, CAMSHAFT1S4-F5355-00
Required: 1
LEVER, CAMSHAFT
Price unavailable
-10%
Bolt
12
Yamaha Motors
Bolt90101-06278-00
Required: 1
BOLT
Supersedes: 90101-06765-00
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
-10%
Hexagon Nut
13
Yamaha Motors
Hexagon Nut95314-06600-00
Required: 1
NUT
Supersedes: 95304-06600-00
Cross Ship
Leaves in 2-5 days
$2.50
$2.25
You save $0.25
More details
-10%
Indicator Plate
14
Yamaha Motors
Indicator Plate5HH-F533A-00-00
Required: 1
PLATE, INDICATOR
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
CLUTCH, HUB
15
Yamaha Motors
CLUTCH, HUB1S4-F5366-00
Required: 1
CLUTCH, HUB
Price unavailable
BEARING
16
Yamaha Motors
BEARING93306-004XJ
Required: 1
BEARING
Price unavailable
COLLAR, WHEEL
17
Yamaha Motors
COLLAR, WHEEL1S4-F5376-00
Required: 1
COLLAR, WHEEL
Price unavailable
OIL SEAL
18
Yamaha Motors
OIL SEAL93106-26803
Required: 1
OIL SEAL
Price unavailable
SPROCKET, DRIVEN (44T)
19
Yamaha Motors
SPROCKET, DRIVEN (44T)5D1-F5444-00
Required: 1
SPROCKET, DRIVEN (44T)
Price unavailable
BOLT, STUD
20
Yamaha Motors
BOLT, STUD90116-08812
Required: 6
BOLT, STUD
Price unavailable
-10%
Self Locking Nut
21
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 6
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
TIRE (130/70-17 M/C 62S)
22
Yamaha Motors
TIRE (130/70-17 M/C 62S)94113-17802
Required: 1
TIRE (130/70-17 M/C 62S)
Price unavailable
-10%
Rim (Tr412) Valve
23
Yamaha Motors
Rim (Tr412) Valve93900-00030-00
Required: 1
VALVE, RIM (TR412)
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
Wheel Balancer
24
Yamaha Motors
Wheel Balancer5MT-25398-10-00
Required: 1
BALANCER, WHEEL (20G)
Cross Ship
Leaves in 2-5 days
$18.99
$17.09
You save $1.90
More details
-10%
Wheel Balancer
24
Yamaha Motors
Wheel Balancer5MT-25398-20-00
Required: 1
BALANCER, WHEEL (30G)
Cross Ship
Leaves in 2-5 days
$46.99
$42.29
You save $4.70
More details
-10%
Wheel Balancer
24
Yamaha Motors
Wheel Balancer5MT-25398-00-00
Required: 1
BALANCER, WHEEL (10G)
Cross Ship
Leaves in 2-5 days
$18.99
$17.09
You save $1.90
More details
BAR, TENSION
25
Yamaha Motors
BAR, TENSION5D1-F5371-00
Required: 1
BAR, TENSION
Price unavailable
BOLT
26
Yamaha Motors
BOLT90101-10437
Required: 1
BOLT
Price unavailable
-10%
BOLT
27
Yamaha Motors
BOLT90109-08063-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-15%
Flange Nut
29
Yamaha Motors
Flange Nut95707-08500-00
Required: 1
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
PIN, COTTER
30
Yamaha Motors
PIN, COTTER91401-20012
Required: 1
PIN, COTTER
Price unavailable
AXLE, WHEEL
31
Yamaha Motors
AXLE, WHEEL1S4-F5381-00
Required: 1
AXLE, WHEEL
Price unavailable
COLLAR, WHEEL
32
Yamaha Motors
COLLAR, WHEEL1S4-F5377-00
Required: 1
COLLAR, WHEEL
Price unavailable
COLLAR, WHEEL
33
Yamaha Motors
COLLAR, WHEEL5D1-F5383-00
Required: 1
COLLAR, WHEEL
Price unavailable
-10%
Self-Locking Nut
34
Yamaha Motors
Self-Locking Nut95607-14200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
WASHER, PLATE
35
Yamaha Motors
WASHER, PLATE90201-145M7
Required: 1
WASHER, PLATE
Price unavailable
-10%
Plain Washer
36
Yamaha Motors
Plain Washer90201-152L7-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
CHAIN (DID428V - 132L)
37
Yamaha Motors
CHAIN (DID428V - 132L)94581-90132
Required: 1
CHAIN (DID428V - 132L)
Price unavailable
PULLER, CHAIN 1
38
Yamaha Motors
PULLER, CHAIN 11S4-F5388-00
Required: 2
PULLER, CHAIN 1
Price unavailable
END 1
39
Yamaha Motors
END 11S4-F2174-00
Required: 2
END 1
Price unavailable
WASHER
40
Yamaha Motors
WASHER9290M-08600
Required: 2
WASHER
Price unavailable
NUT
41
Yamaha Motors
NUT9530L-08600
Required: 4
NUT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
