2007 Street Bike YBR250 - YBR250 (5D11) [050] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

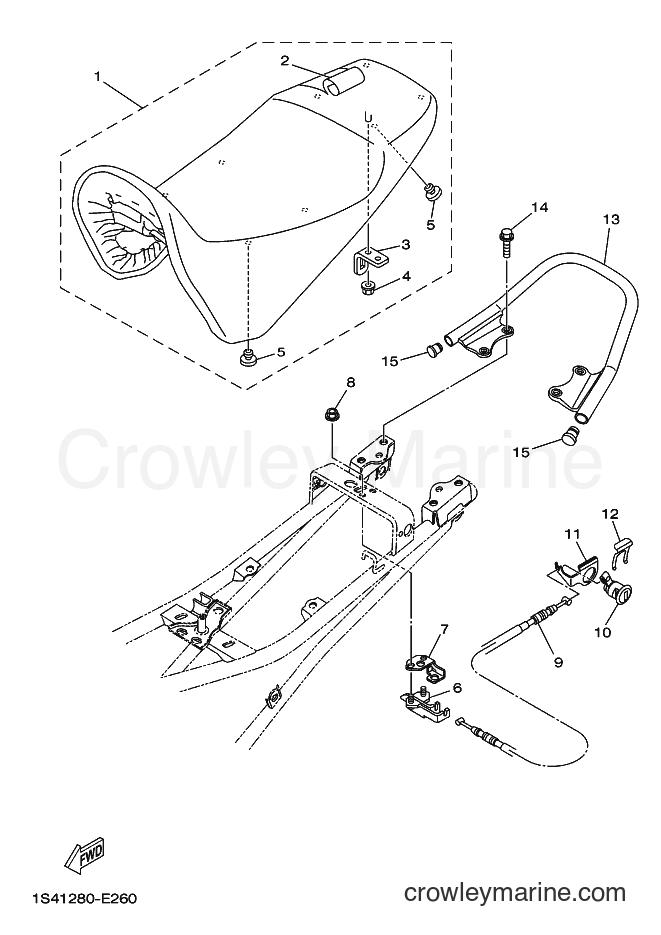

Yamaha Motors YBR250 (5D11) [050] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY1S4-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT1S4-F4731-00
Required: 1
. COVER, SEAT
Price unavailable
. BRACKET, SEAT
3
Yamaha Motors
. BRACKET, SEAT1S4-F4728-00
Required: 1
. BRACKET, SEAT
Price unavailable
. PAD, SEAT
5
Yamaha Motors
. PAD, SEAT1S4-F4741-00
Required: 6
. PAD, SEAT
Price unavailable
SEAT LOCK ASSY
6
Yamaha Motors
SEAT LOCK ASSY5TL-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
PLATE, LOCK
7
Yamaha Motors
PLATE, LOCK1S4-F479K-00
Required: 1
PLATE, LOCK
Price unavailable
-10%
Flange Nut
8
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Supersedes: 9570M-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
CABLE, SEAT LOCK
9
Yamaha Motors
CABLE, SEAT LOCK1S4-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
-10%
SEAT LOCK ASSEMBLY
10
Yamaha Motors
SEAT LOCK ASSEMBLY5VY-W2470-00-00
Required: 1
SEAT LOCK ASSY
Cross Ship
Leaves in 2-5 days
$99.99
$89.99
You save $10.00
More details
STAY, LOCK
11
Yamaha Motors
STAY, LOCK1S4-F117K-00
Required: 1
STAY, LOCK
Price unavailable
SPRING, LOCK 2
12
Yamaha Motors
SPRING, LOCK 21S4-F176V-00
Required: 1
SPRING, LOCK 2
Price unavailable
HANDLE, SEAT
13
Yamaha Motors
HANDLE, SEAT1S4-F4773-00-33
Required: 1
HANDLE, SEAT
Price unavailable
BOLT
14
Yamaha Motors
BOLT9582M-08016
Required: 4
BOLT
Price unavailable
PLUG
15
Yamaha Motors
PLUG90338-16800
Required: 2
PLUG
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
