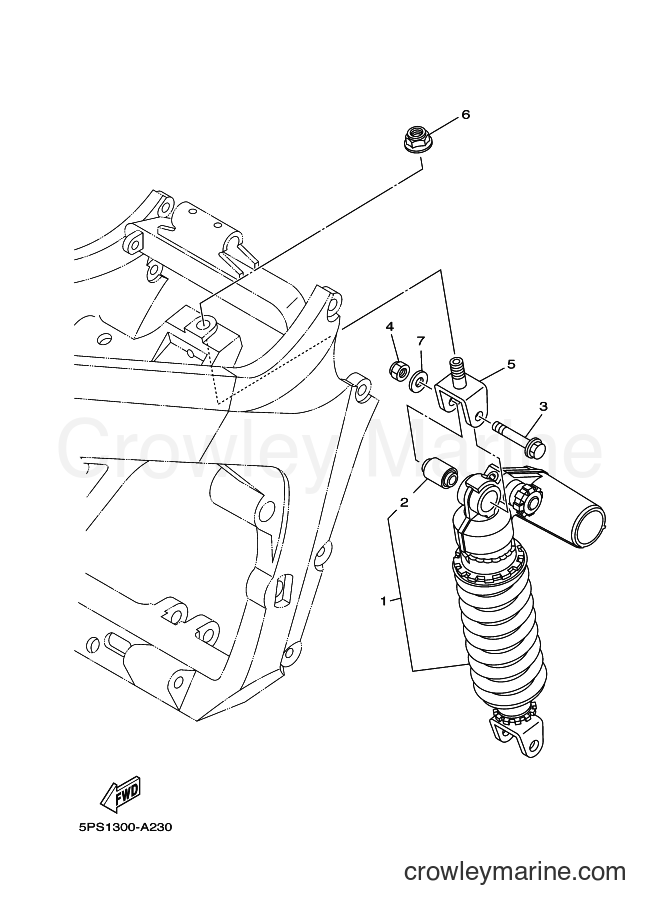

2008 Street Bike TDM900 - TDM900 (5PSE) [010] REAR SUSPENSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TDM900 (5PSE) [010] - REAR SUSPENSION
Change View:
SHOCK ABSORBER ASSY, REAR
1
Yamaha Motors
SHOCK ABSORBER ASSY, REAR5PS-22210-10
Required: 1
SHOCK ABSORBER ASSY, REAR
Price unavailable
-10%
Washer Based Bolt
3
Yamaha Motors
Washer Based Bolt90105-10402-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
NUT
4
Yamaha Motors
NUT95617-10100-00
Required: 1
NUT, U
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BRACKET, UPPER
5
Yamaha Motors
BRACKET, UPPER5PS-22219-01
Required: 1
BRACKET, UPPER
Price unavailable
-10%
Self-Locking Nut
6
Yamaha Motors
Self-Locking Nut95607-14200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
-10%
Plain Washer
7
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
