Find all guaranteed-fit parts for your motorcycle
Where is my model number?
All diagrams for this model

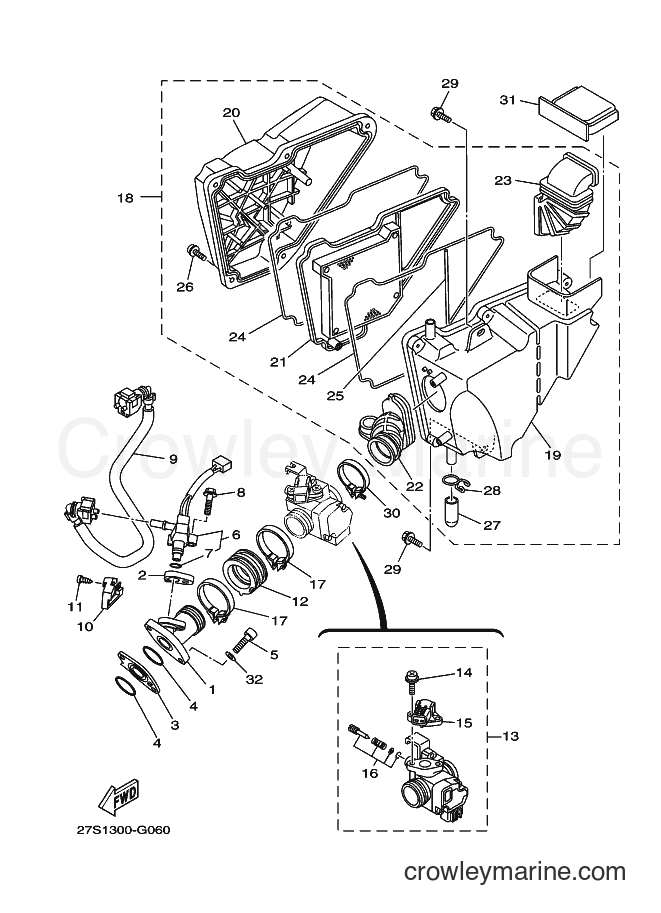

2008 Street Bike YB125SPD - YB125SPD (27S1) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YB125SPD (27S1) [010] - INTAKE
Change View:
MANIFOLD
1
Yamaha Motors
MANIFOLD3D9-E3585-00
Required: 1
MANIFOLD
Price unavailable
GASKET, MANIFOLD
2
Yamaha Motors
GASKET, MANIFOLD3D9-E3556-00
Required: 1
GASKET, MANIFOLD
Price unavailable
JOINT
3
Yamaha Motors
JOINT3D9-E3595-00
Required: 1
JOINT
Price unavailable
O-RING
4
Yamaha Motors
O-RING93210-32809
Required: 2
O-RING
Price unavailable
BOLT
5
Yamaha Motors
BOLT9131M-06030
Required: 2
BOLT
Price unavailable
INJECTOR ASSY
6
Yamaha Motors
INJECTOR ASSY3D9-13770-00
Required: 1
INJECTOR ASSY
Price unavailable
-10%
O-Ring
7
Yamaha Motors
O-Ring5CA-14147-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
BOLT, FLANGE
8
Yamaha Motors
BOLT, FLANGE9582N-06030
Required: 1
BOLT, FLANGE
Price unavailable
PIPE, FUEL 1
9
Yamaha Motors
PIPE, FUEL 127S-13971-00
Required: 1
PIPE, FUEL 1
Price unavailable
CLAMP 1
10
Yamaha Motors
CLAMP 112B-F4135-00
Required: 1
CLAMP 1
Price unavailable
SCREW, TAPPING
11
Yamaha Motors
SCREW, TAPPING9770M-40512
Required: 1
SCREW, TAPPING
Price unavailable
JOINT, CARBURETOR 1
12
Yamaha Motors
JOINT, CARBURETOR 13D9-E3586-00
Required: 1
JOINT, CARBURETOR 1
Price unavailable
THROTTLE BODY ASSY
13
Yamaha Motors
THROTTLE BODY ASSY3D9-13750-10
Required: 1
THROTTLE BODY ASSY
Price unavailable
-10%
Screw (M8 X 40)
14
Yamaha Motors
Screw (M8 X 40)1S4-14216-00-00
Required: 2
. SCREW
Cross Ship
Leaves in 2-5 days
$3.65
$3.29
You save $0.36
More details
. FUEL CUT SOLENOID VALVE
15
Yamaha Motors
. FUEL CUT SOLENOID VALVE2S5-1410H-00
Required: 1
. FUEL CUT SOLENOID VALVE
Price unavailable
-10%
Air Screw Kit
16
Yamaha Motors
Air Screw Kit5JW-14104-00-00
Required: 1
. AIR SCREW SET
Cross Ship
Leaves in 2-5 days
$17.99
$16.19
You save $1.80
More details
BAND
17
Yamaha Motors
BAND3D9-E3575-00
Required: 2
BAND
Price unavailable
AIR CLEANER ASSY.
18
Yamaha Motors
AIR CLEANER ASSY.27S-Y1441-00
Required: 1
AIR CLEANER ASSY.
Price unavailable
. CASE, AIR CLEANER 1
19
Yamaha Motors
. CASE, AIR CLEANER 127S-E4411-00
Required: 1
. CASE, AIR CLEANER 1
Price unavailable
. CAP, CLEANER CASE 1
20
Yamaha Motors
. CAP, CLEANER CASE 15VL-E4412-00
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
. ELEMENT ASSY, AIR CLEANER
21
Yamaha Motors
. ELEMENT ASSY, AIR CLEANER5VL-E4450-10
Required: 1
. ELEMENT ASSY, AIR CLEANER
Price unavailable
. JOINT, AIR CLEANER 1
22
Yamaha Motors
. JOINT, AIR CLEANER 13D9-E4453-00
Required: 1
. JOINT, AIR CLEANER 1
Price unavailable
. DUCT
23
Yamaha Motors
. DUCT3D9-E4437-01
Required: 1
. DUCT
Price unavailable
. SEAL
24
Yamaha Motors
. SEAL3D9-E4452-00
Required: 2
. SEAL
Price unavailable
. SEAL
25
Yamaha Motors
. SEAL3D9-E4462-00
Required: 1
. SEAL
Price unavailable
-10%
PAN HEAD SCREW
26
Yamaha Motors
PAN HEAD SCREW97607-06220-00
Required: 5
. SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. PIPE, DRAIN
27
Yamaha Motors
. PIPE, DRAIN3D9-E443E-00
Required: 1
. PIPE, DRAIN
Price unavailable
. CLIP, CAP FITTING
28
Yamaha Motors
. CLIP, CAP FITTING5VL-E4424-00
Required: 1
. CLIP, CAP FITTING
Price unavailable
BOLT, WITH WASHER
29
Yamaha Motors
BOLT, WITH WASHER90119-06869
Required: 2
BOLT, WITH WASHER
Price unavailable
BAND
30
Yamaha Motors
BAND3D9-E3474-00
Required: 1
BAND
Price unavailable
COVER 1
31
Yamaha Motors
COVER 13D9-E4417-00
Required: 1
COVER 1
Price unavailable
WASHER
32
Yamaha Motors
WASHER3D9-E3578-00
Required: 2
WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
