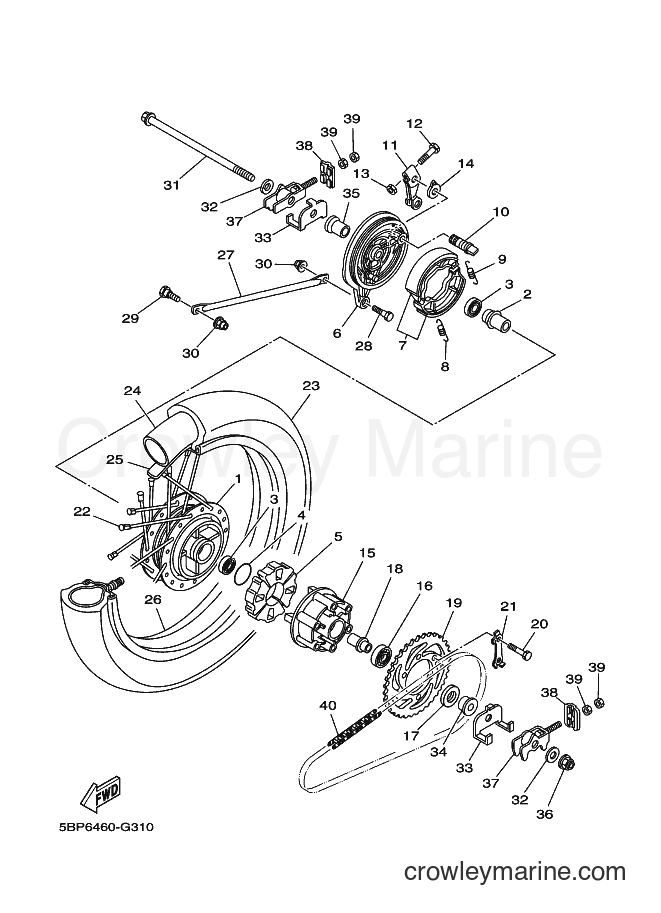

2009 Street Bike SX-4 - SX-4 (5BP9) [010] REAR WHEEL 2 diagram
![Yamaha Motors SX-4 (5BP9) [010] - REAR WHEEL 2](https://cdn.crowleymarine.com/yamaha/wgKSMD7r.png)
1
Yamaha Motors
HUB, REAR3WL-F5311-00-35
Required: 1
HUB, REAR
Price unavailable
2
Yamaha Motors
COLLAR ASSY5BP-F530S-00
Required: 1
COLLAR ASSY
Price unavailable
3
Yamaha Motors
BEARING93306-252X7
Required: 2
BEARING
Price unavailable
4
Yamaha Motors
O-RING93210-418G7
Required: 1
O-RING
Price unavailable
5
Yamaha Motors
DAMPER23T-F5364-00
Required: 4
DAMPER
Price unavailable
6
Yamaha Motors
PLATE, BRAKE SHOE5BP-F5321-01-35
Required: 1
PLATE, BRAKE SHOE
Price unavailable
7
Yamaha Motors
BRAKE SHOE COMP.5BP-F530K-20
Required: 1
BRAKE SHOE COMP.
Price unavailable
-10%
8
Yamaha Motors
Tension Spring90506-12001-00
Required: 1
SPRING, TENSION
$9.44
You save $1.05
-10%
9
Yamaha Motors
Tension Spring90506-15001-00
Required: 1
SPRING, TENSION
$5.84
You save $0.65
10
Yamaha Motors
CAMSHAFT5BP-F5351-00
Required: 1
CAMSHAFT
Price unavailable
11
Yamaha Motors
LEVER, CAMSHAFT5BP-F5355-00
Required: 1
LEVER, CAMSHAFT
Price unavailable
-10%
$2.34
You save $0.26
-10%
13
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
$3.46
You save $0.38
14
Yamaha Motors
PLATE, INDICATOR4ST-F533A-00
Required: 1
PLATE, INDICATOR
Price unavailable
15
Yamaha Motors
CLUTCH, HUB5BP-F5366-10-35
Required: 1
CLUTCH, HUB
Price unavailable
16
Yamaha Motors
BEARING93306-004XC
Required: 1
BEARING
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$6.57
You save $0.73
18
Yamaha Motors
COLLAR90387-158V4
Required: 1
COLLAR
Price unavailable
19
Yamaha Motors
SPROCKET, DRIVEN (44T)5BP-F5444-00
Required: 1
SPROCKET, DRIVEN (44T)
Price unavailable
20
Yamaha Motors
BOLT, STUD90116-08812
Required: 6
BOLT, STUD
Price unavailable
-10%
21
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 6
NUT, SELF-LOCKING
$2.88
You save $0.32
22
Yamaha Motors
SPOKE SET, REAR5BP-F5304-00
Required: 1
SPOKE SET, REAR
Price unavailable
23
Yamaha Motors
TIRE (100/90-18 56P)94110-188W1
Required: 1
TIRE (100/90-18 56P)
Price unavailable
24
Yamaha Motors
TUBE (100/90-18)94210-188B6
Required: 1
TUBE (100/90-18)
Price unavailable
25
Yamaha Motors
BAND, RIM (100/90-18)94321-18863
Required: 1
BAND, RIM (100/90-18)
Price unavailable
26
Yamaha Motors
RIM (2.15-18)94421-188B7
Required: 1
RIM (2.15-18)
Price unavailable
27
Yamaha Motors
BAR, TENSION5BP-F5371-10
Required: 1
BAR, TENSION
Price unavailable
-10%
$10.34
You save $1.15
-10%
$8.54
You save $0.95
-10%
30
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 2
NUT, SELF-LOCKING
$2.88
You save $0.32
31
Yamaha Motors
AXLE, WHEEL5BP-F5381-00
Required: 1
AXLE, WHEEL
Price unavailable
32
Yamaha Motors
WASHER, PLATE90201-156J5
Required: 2
WASHER, PLATE
Price unavailable
33
Yamaha Motors
PLATE 15BP-F539F-00
Required: 2
PLATE 1
Price unavailable
34
Yamaha Motors
COLLAR90387-155W2
Required: 1
COLLAR
Price unavailable
35
Yamaha Motors
COLLAR90387-15811
Required: 1
COLLAR
Price unavailable
-10%
36
Yamaha Motors
95601-14200-0095602-14200-00
Required: 1
NUT, SELF-LOCKING
$11.24
You save $1.25
37
Yamaha Motors
PULLER, CHAIN 15BP-F5388-00
Required: 2
PULLER, CHAIN 1
Price unavailable
38
Yamaha Motors
END 15BP-F2174-00
Required: 2
END 1
Price unavailable
-10%
39
Yamaha Motors
Nut95337-08600-00
Required: 4
NUT
Supersedes: 95307-08600-00
$8.54
You save $0.95
40
Yamaha Motors
CHAIN (DID428V-118LE)94581-90118
Required: 1
CHAIN (DID428V-118LE)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
