2009 Street Bike YBR250 - YBR250 (5D13) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

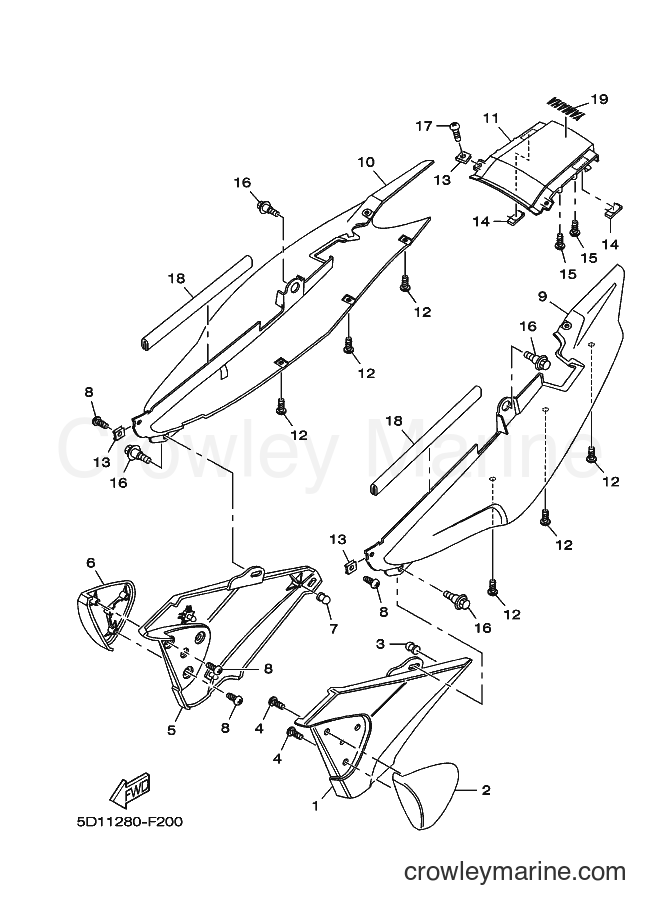

Yamaha Motors YBR250 (5D13) [010] - SIDE COVER
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 11S4-F1711-00-35
Required: 1
COVER, SIDE 1
Price unavailable
PANEL 1
2
Yamaha Motors
PANEL 11S4-F172A-00-P0
Required: 1
PANEL 1
Price unavailable
DAMPER
3
Yamaha Motors
DAMPER23L-F1717-01
Required: 1
DAMPER
Price unavailable
-10%
Truss Screw
4
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
COVER, SIDE 2
5
Yamaha Motors
COVER, SIDE 21S4-F1721-00-35
Required: 1
COVER, SIDE 2
Price unavailable
PANEL 2
6
Yamaha Motors
PANEL 21S4-F172F-00-P0
Required: 1
PANEL 2
Price unavailable
DAMPER
7
Yamaha Motors
DAMPER23L-F1717-01
Required: 1
DAMPER
Price unavailable
-10%
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
COVER, SIDE 3
9
Yamaha Motors
COVER, SIDE 31S4-F1731-00-P0
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 4
10
Yamaha Motors
COVER, SIDE 41S4-F1741-00-P0
Required: 1
COVER, SIDE 4
Price unavailable
COVER, SIDE 5
11
Yamaha Motors
COVER, SIDE 51S4-F171E-00-P0
Required: 1
COVER, SIDE 5
Price unavailable
-10%
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 8
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
DAMPER
14
Yamaha Motors
DAMPER1S4-F1746-00
Required: 2
DAMPER
Price unavailable
-10%
Truss Screw
15
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
-10%
BOLT
16
Yamaha Motors
BOLT90109-06086-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
SCREW, BINDING
17
Yamaha Motors
SCREW, BINDING90154-05800
Required: 2
SCREW, BINDING
Price unavailable
MOLE 1
18
Yamaha Motors
MOLE 11S4-F8345-00
Required: 2
MOLE 1
Price unavailable
EMBLEM, YAMAHA
19
Yamaha Motors
EMBLEM, YAMAHA5LX-F153E-10
Required: 1
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
